Setting the representation when importing a part

Speed up setting part visibility in different appearances during insertion.

With the new feature, you can easily define the visibility of a part’s different appearances within an assembly’s display states. You no longer need to reset each master assembly display state once the model has been added.

Link the subassembly’s representations to the main assembly’s representations

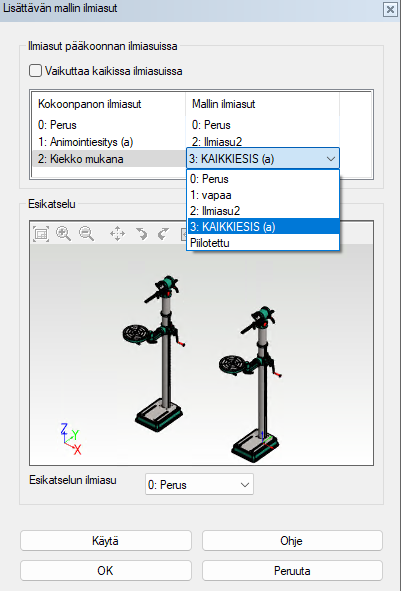

When you add a model to an assembly, you’ll see the insertion dialog shown below. By default the “Affects all display states” checkbox is selected, and you can choose which display state will be added to all of the main assembly’s display states.

If you clear the checkbox, you can link each main assembly representation to the corresponding represenstation of the model individually.
