Elevation mark

You can now add an elevation mark to the model and the drawing

ou can add an elevation mark to the model from the MBD tab. In the drawing, you can control the appearance of the mark and its visibility in the views.

Adding an elevation mark in the model

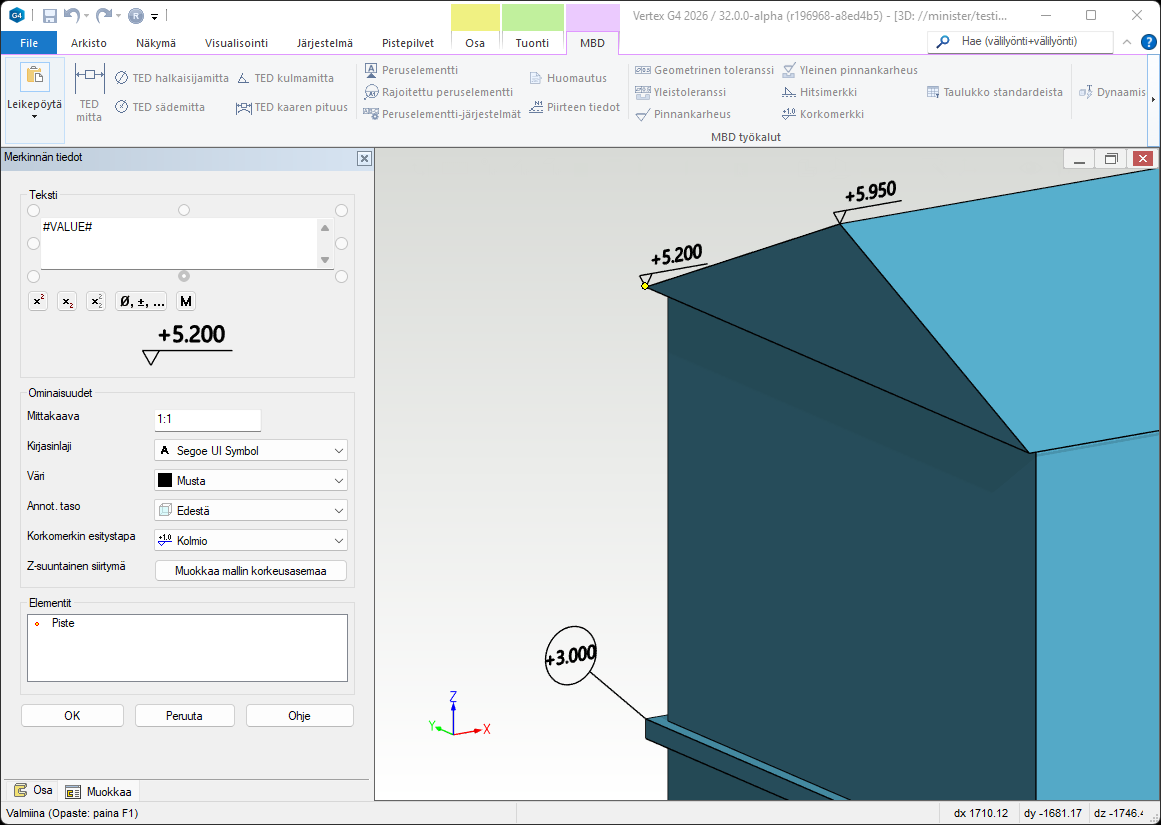

The “Elevation Mark” function on the MBD tab allows you to place an elevation mark in the model. You can choose between a circular, triangular, or inverted triangular representation for the mark. The mark will be displayed the same way in the drawing. These marks follow the same annotation plane behavior as other MBD annotations.

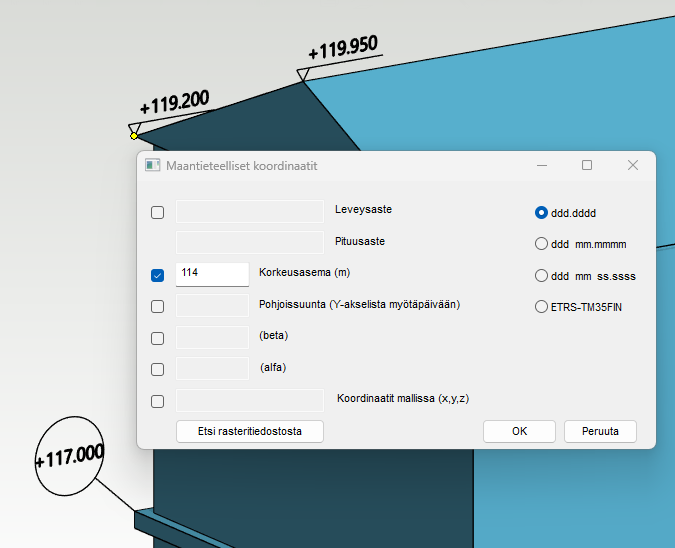

If the model is not in its correct geographical location, you can click the “Edit Model Elevation” button. This will open a dialog box where you can enter the model origin’s elevation above sea level. In this case, the entered value of 114 m is added to the model’s actual elevation, measured from the origin, as shown in the image.
