What's New in Vertex G4 2025

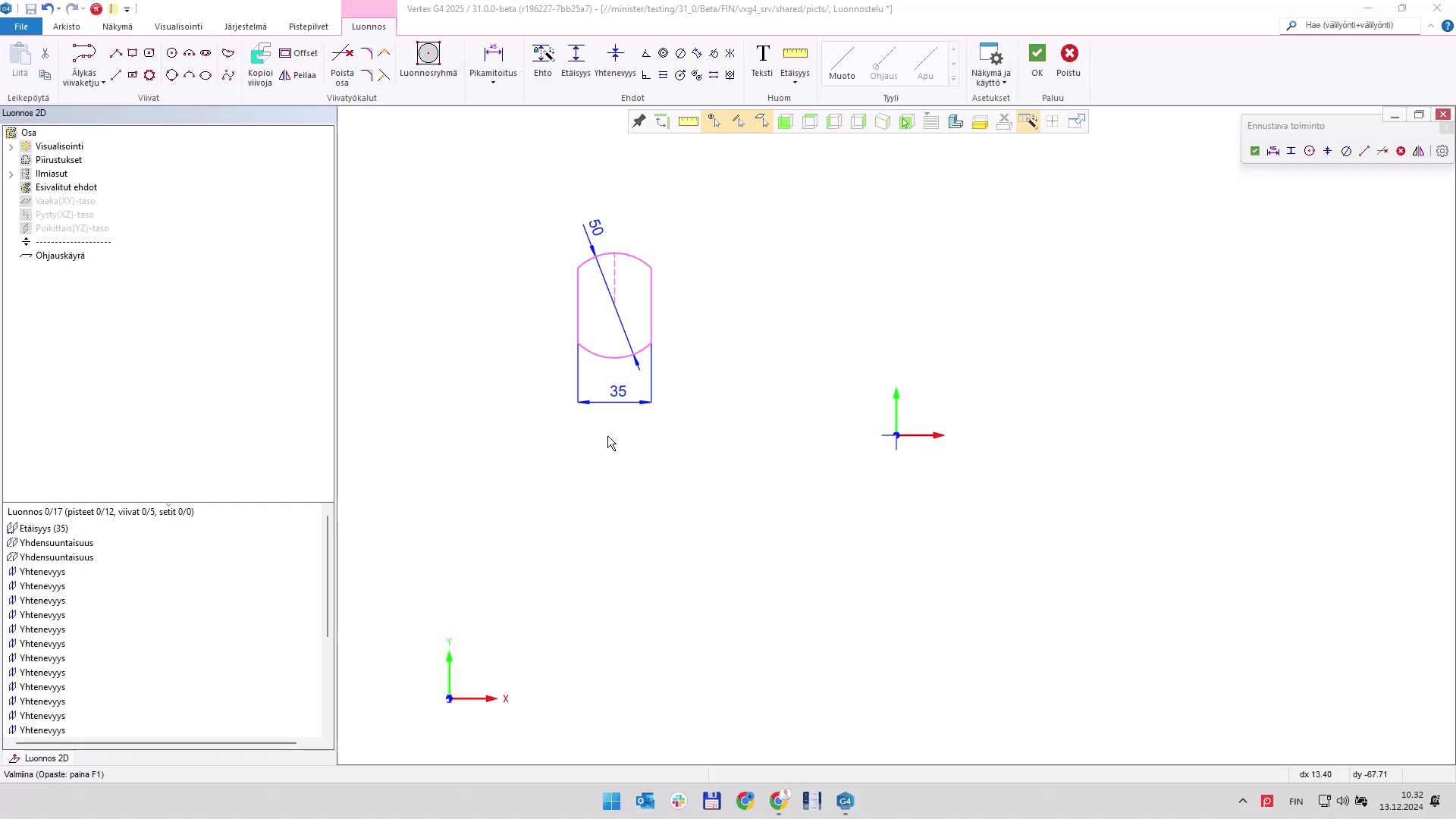

Creation of Sketch Groups
Create groups in sketches and reuse geometry
You can create groups in the sketch mode. Sketch groups are easy to copy, and you can establish links between their geometry. This means that when you modify one sketch group, the others will automatically reflect those changes.

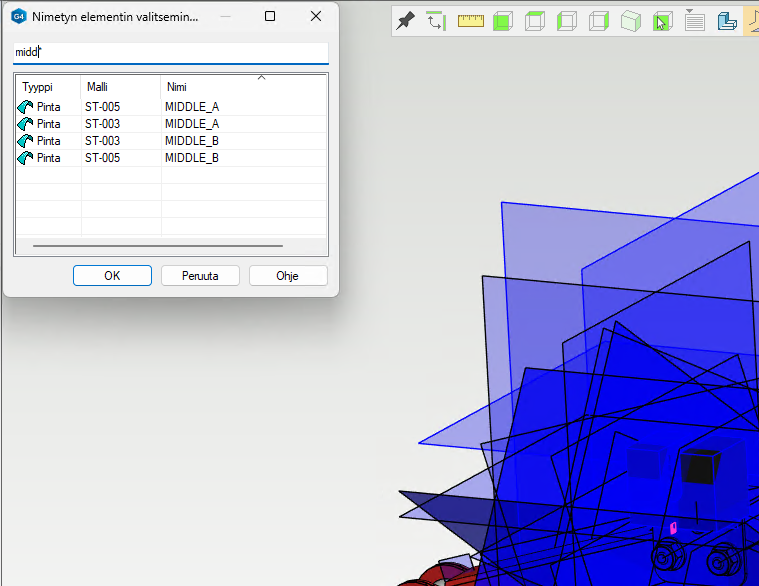

Managing Auxiliary Planes
Find auxiliary planes easily and accurately
You can assign a name to an auxiliary plane, making it easy to locate later for tasks such as positioning or controlling the visibility of planes.
Enhanced 3D Dimensioning Tools
Easily dimension in 3D with new measurement tools
Leverage the properties of MBD dimensions and annotations using annotation planes and dynamic visibility. Additionally, you can apply text macros with the new dimensioning tools.

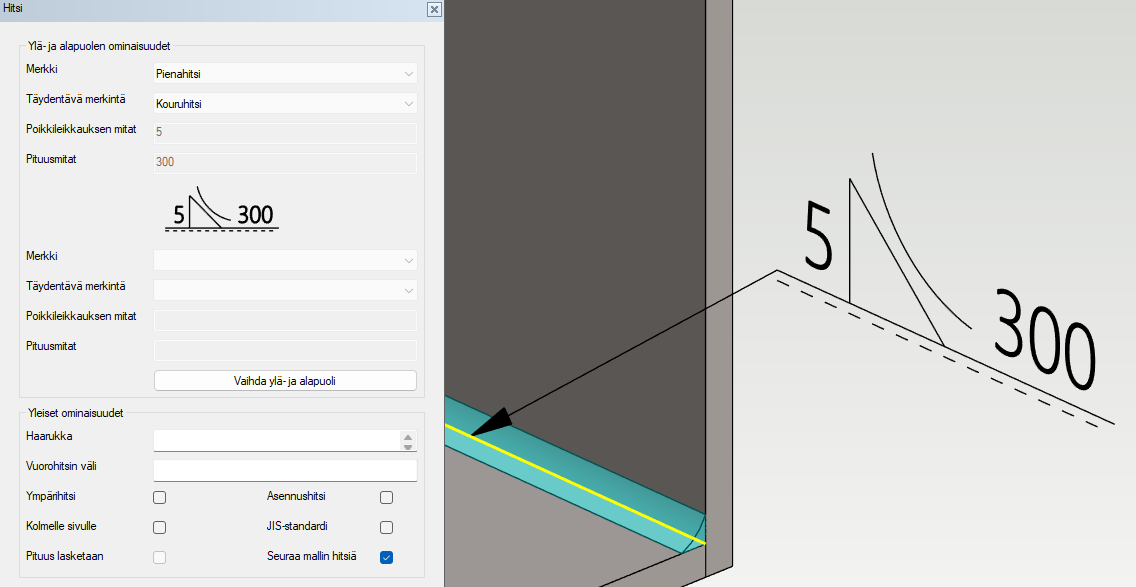

Welding Symbols in 3D Models
Add welding symbols to 3D models using data from modeled welds.
You can create welding symbols by referencing a modeled weld, allowing the symbol to automatically retrieve cross-sectional information and lengths from the weld. Alternatively, you can add symbols without a modeled weld by selecting a line to attach the symbol to.

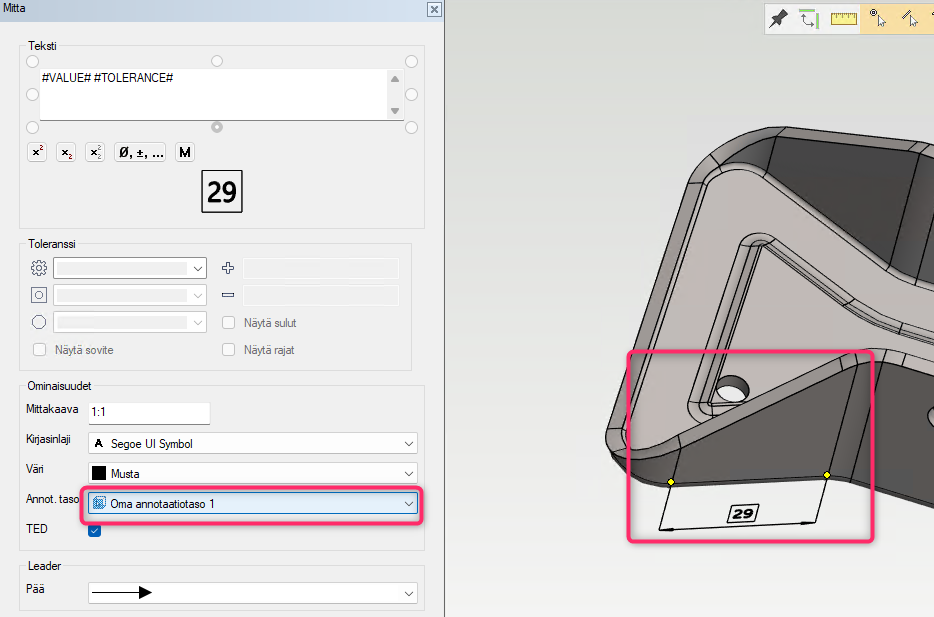

Creating Custom Annotation Planes
Define custom annotation planes based on the geometry of a part.
You can create and name annotation planes, allowing you to place dimensions and annotations on freely chosen planes within the model. This also enables project-specific management of annotations to be transferred to drawings.
