Swedish environment BD 2026

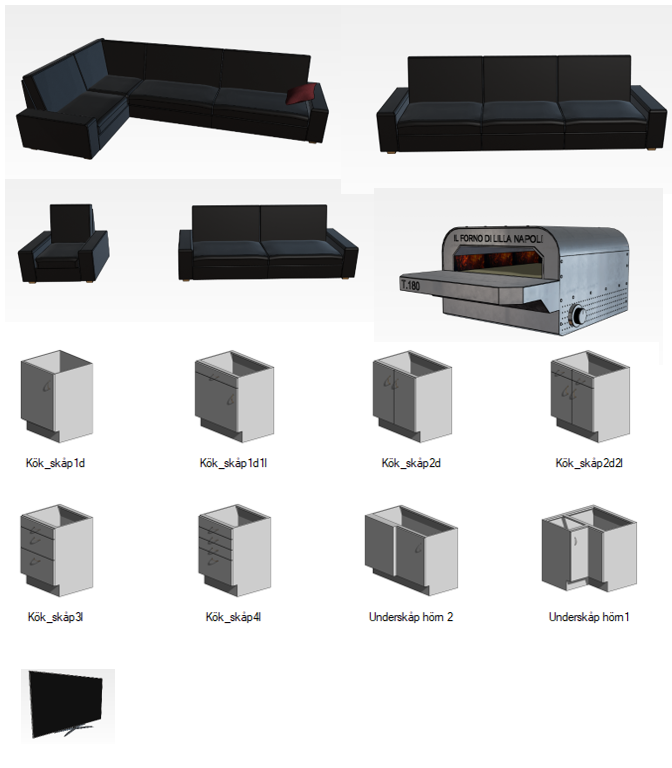

New 3d models to component library
Why: We lack good looking models for architectural design (customer request)
Solution: Add new models

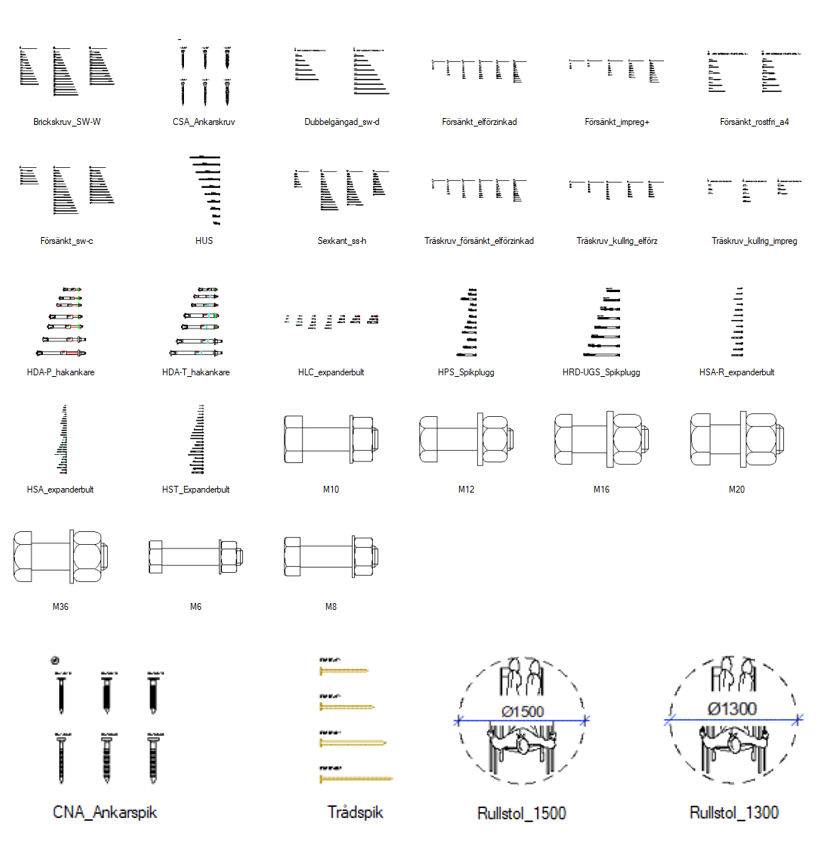

New 2d models to component library
Why: 2d models of screws, nails and bolts was needed to do detail drawings (customer request)
Solution: Add new models

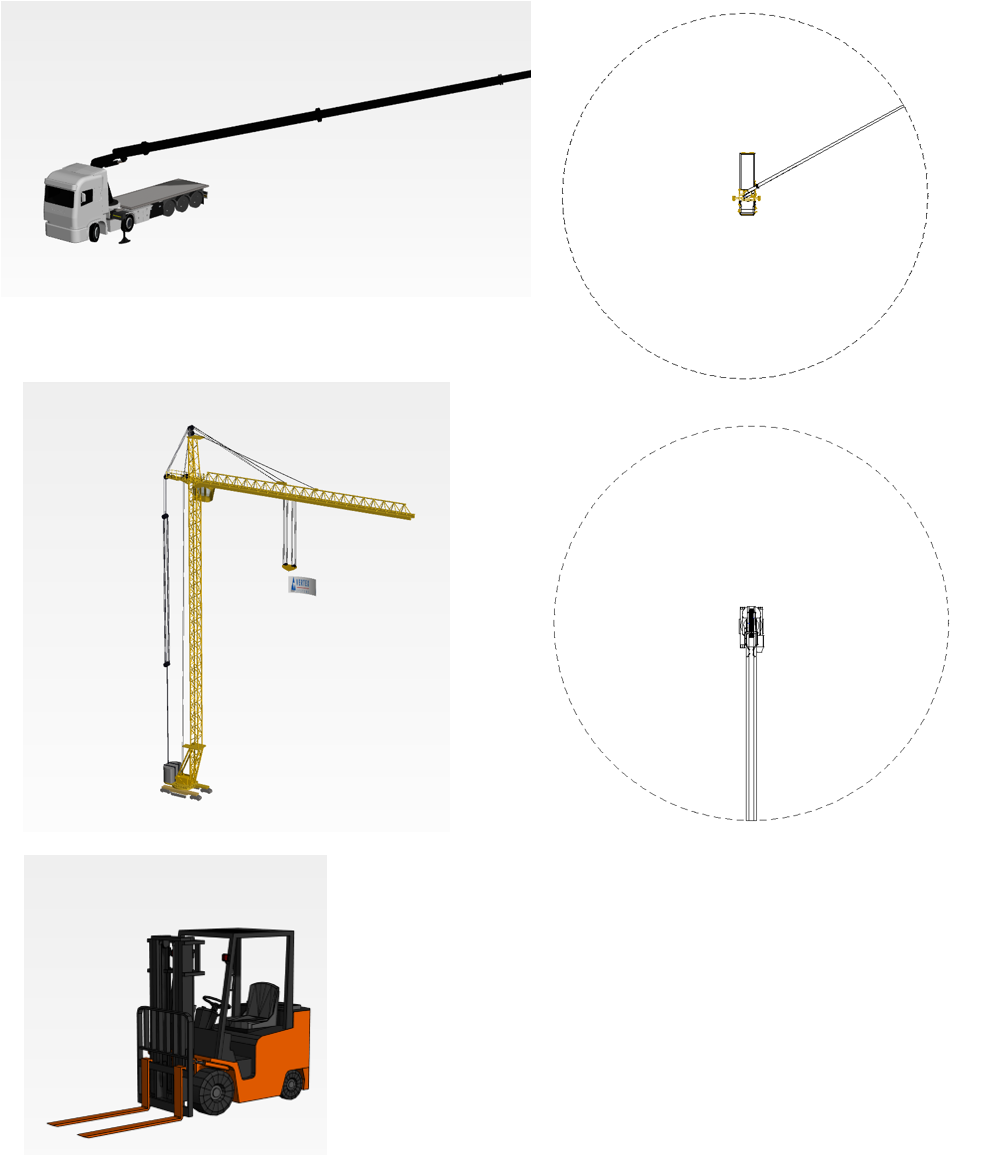

New 3d models to component library
Why: Need for model showing the reach of crane and truck with crane (customer request)
Solution: Add new models

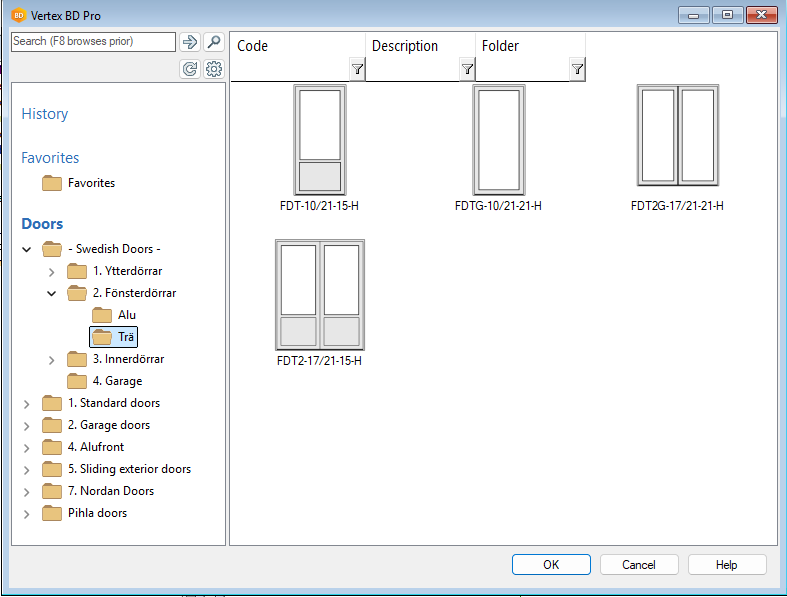

New models for “Fönsterdörrar” in wood
Why: Customer have asked for these models
Solution: Created new models

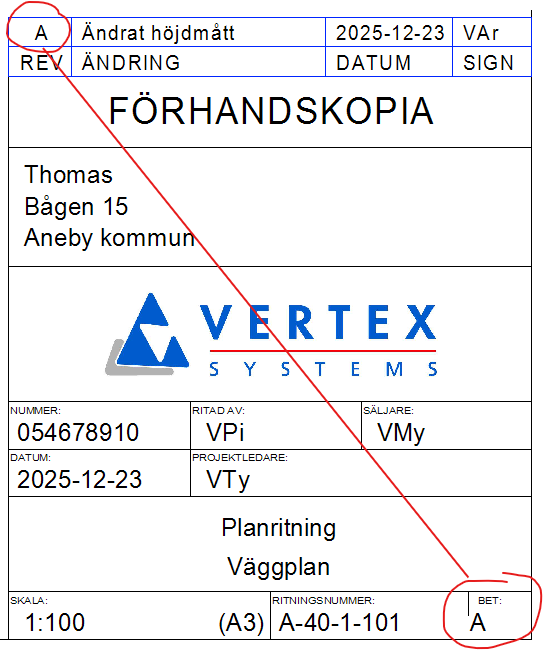

Changed the program to handle lowercase and uppercase letters in revision field
Why: The program could not handle this before
Solution: Fixed trigger responsible for displaying revision letter

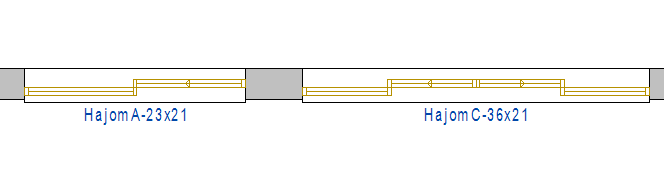

New 2D symbol for Hajom doors (Sliding doors)
Why: Make it clear which door is openable (Customer request)
Solution: Created new 2D symbol

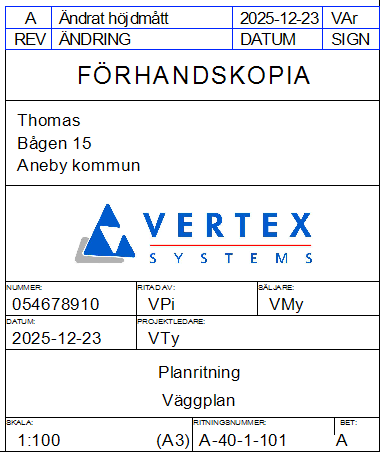

New drawing schedule for the Sweden market
Why: There was more and different field needed
Solution: New drawing schedule was done

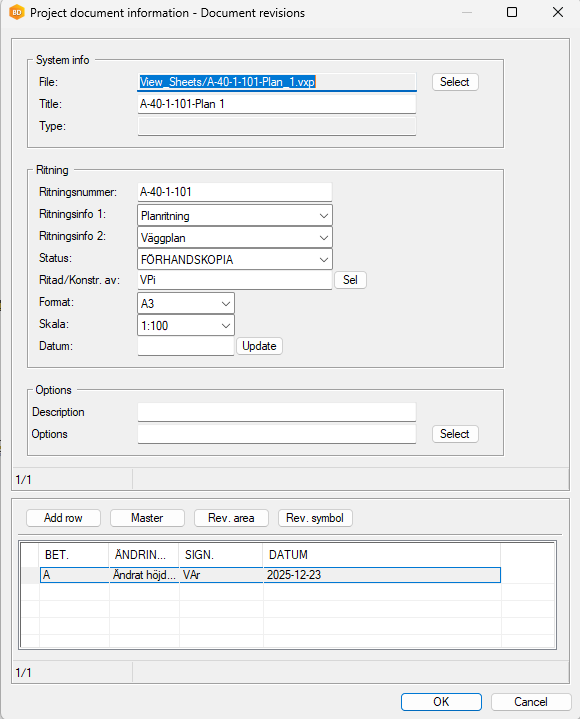

New fields and removed unused ones in filinfo
Why: There were fields that weren’t connected to the drawings and new ones that were needed
Solution: Changed the look of document datacard

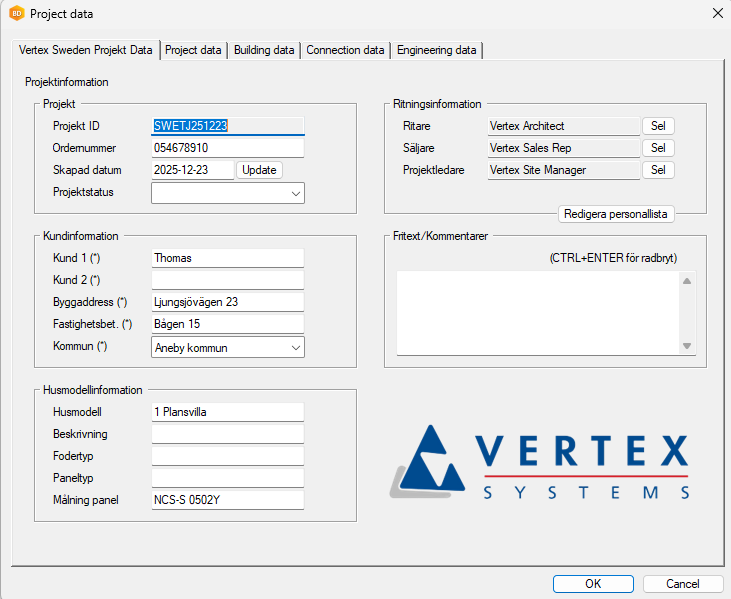

New appearance of the Sweden building datacard
Why: The previous datacard was missing crucial fields needed in Swedish permit drawings
Solution: Created new field in the datacard for Sweden market

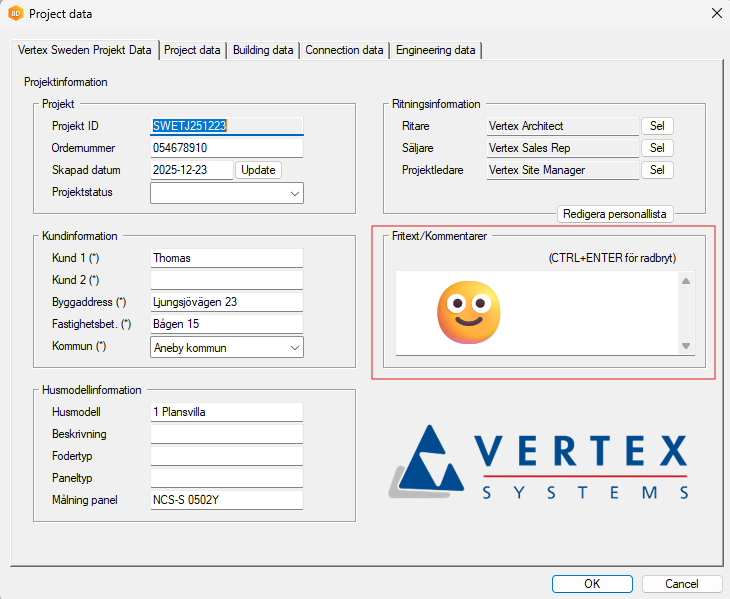

New field with place for 255 characters to specify information about the project added
Why: There have been needs for customer for this
Solution: Created new field for comments
New type of lines added in all wall layers between exterior line and interior line (Walls other line 14)
Why: It was not possible to hide all lines between exterior and interior line. This has been a frequent request from all of our customers
Solution: Went through all of our Sweden standard walls and changed all the layers that are between exterior side and interior side to unique layers
New alternatives in the status drop-down menu in the datacard are added
Why: Customer request
Solution: Added more alternatives in the field value

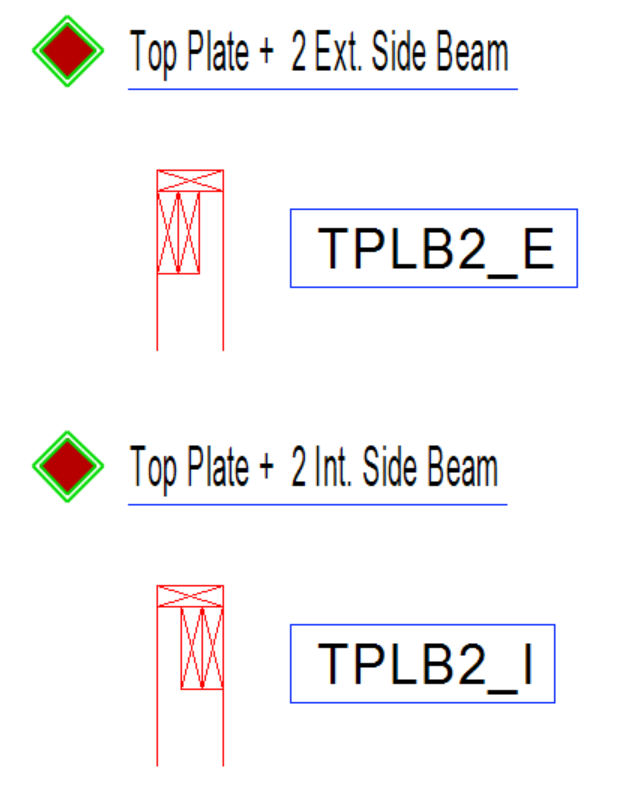

New top-plate detail type
Why: Request from customers to include double beam along top-plate
Solution: Include TPLB2_E & TPLB2_I as new top-plate types
New kitchen island and countertop components
Why: A lot of manual work involved in creating a basic kitchen island and customer request
Solution: Added two new variants, one complete kitchen island containing 4 chairs, cabinet, countertop, sink and stove along with a separate countertop + sink combination.

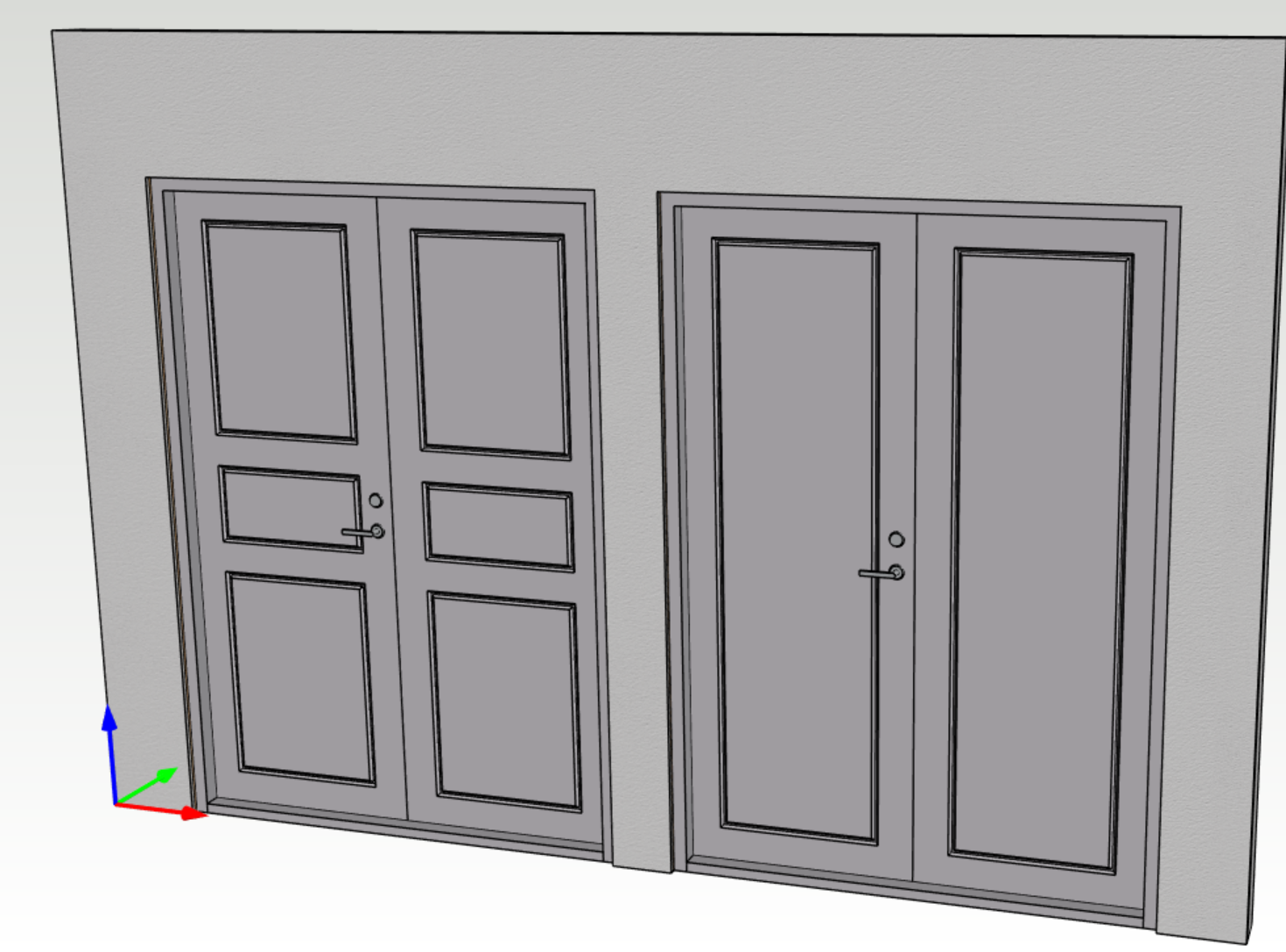

New double interior doors
Why: Customer request
Solution: Added two new variants of double interior doors, Craft03 and Unique01

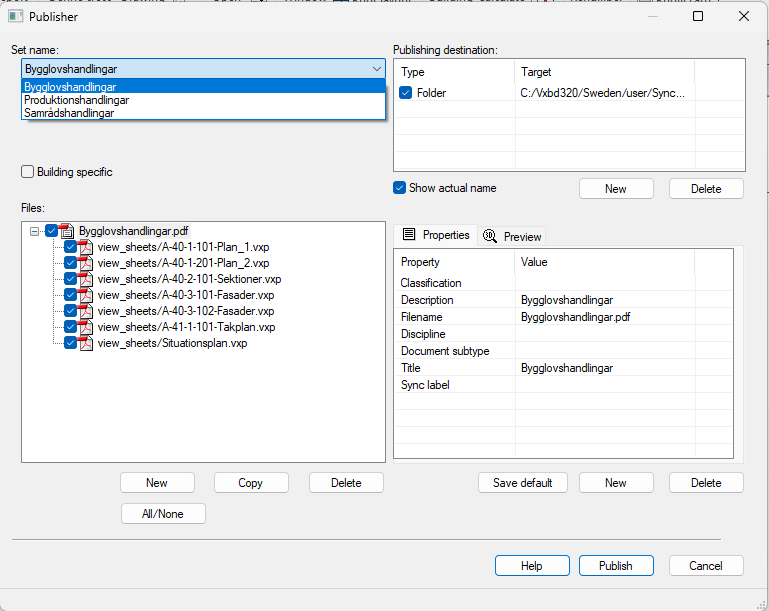

New publisher sets, “bygglovshandlingar”, “Samrådshandlingar”, “Produktionshandlingar”
Why: Examples of how to use different sets—these are drawings that are frequently used in many projects.
Solution: Added new three different sets.

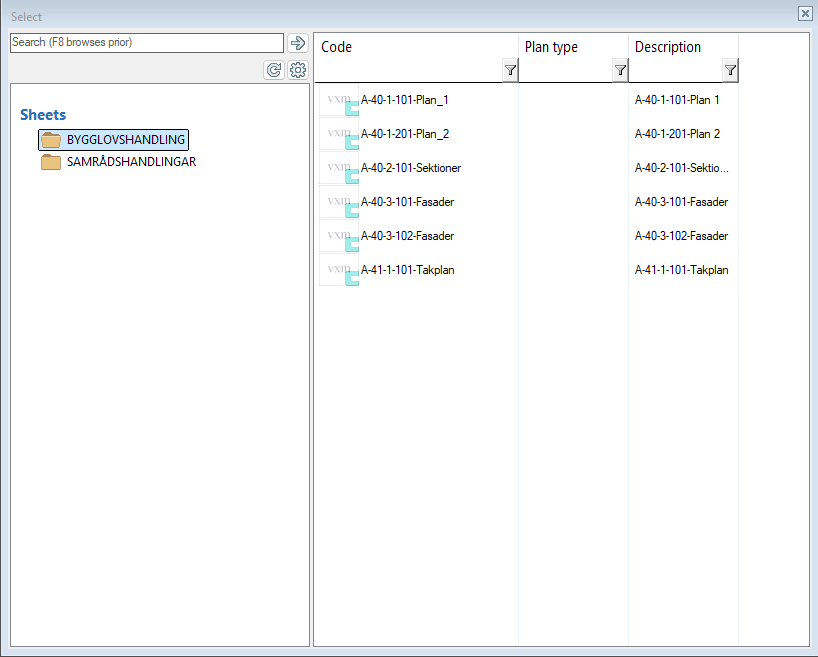

New drawings added to library, “Bygglovshandlingar”, “Samrådshandlingar”
Why: Examples of drawings that are commonly reused across numerous projects, as well as clear guidance on how to effectively organise the different drawing types within the library.
Solution: Added drawings to library

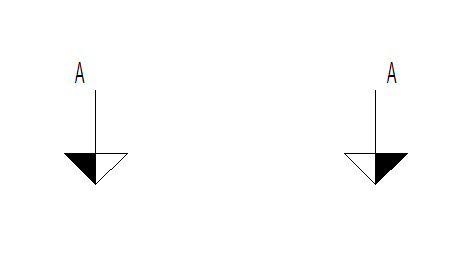

New section arrow
Why: Better-looking than the old one — creates a more polished feel for the drawings while indicating they can be edited by users.
Solution: Added a new section arrow

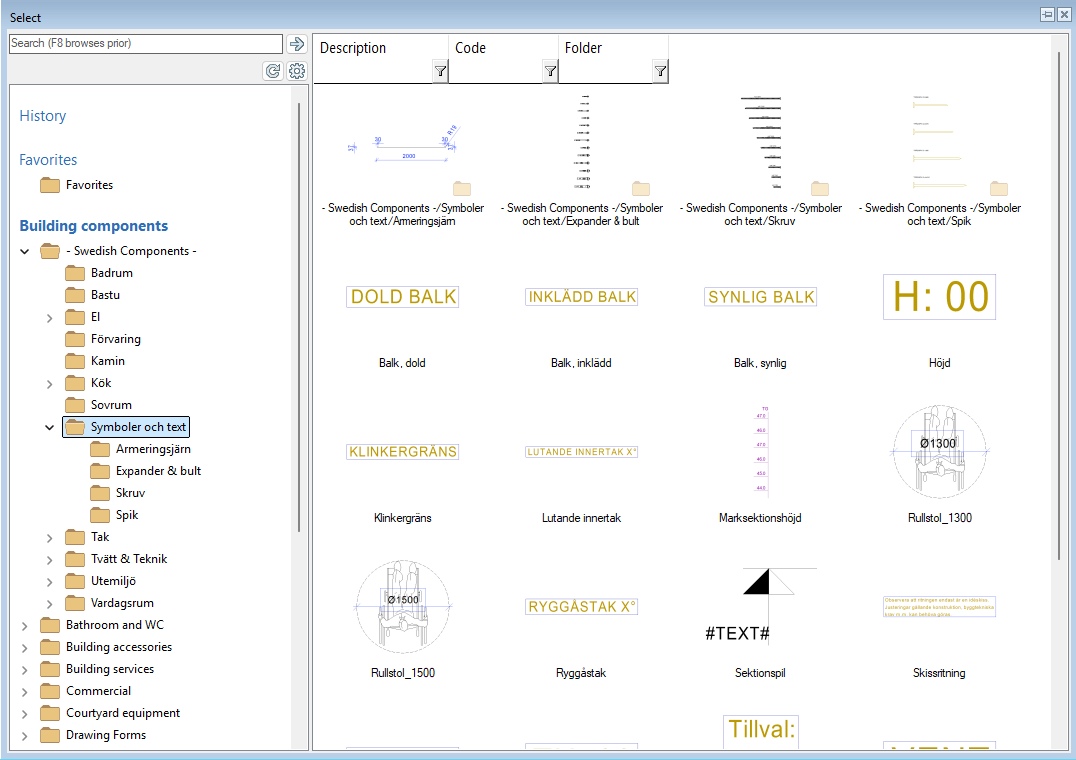

New 2D symbols added to components
Why: Easier drawing creation + frequent new 2D symbols. Customer suggestions & feedback always welcome on which ones to add.
Solution: Added more 2D-components

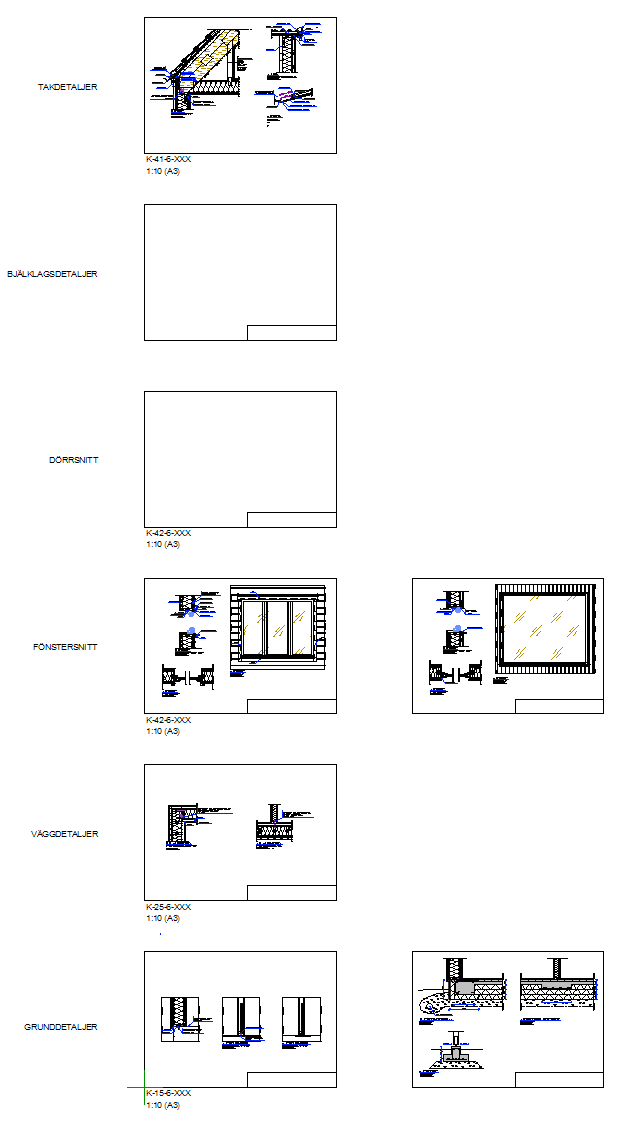

New “Detail-file” under other document
Why: Pre-loaded file under Other Documents with some “standard details”, indicates how to work with details, and the file can be used as a detail file for drawings used in projects
Solution: Pre-loaded example file placed under 'Other Documents', featuring some standard details. It demonstrates how you can work with detail drawings, and the file itself can be used as a reusable detail file in your projects.
