ScotSteel NC link BD 2026

The ScotSteel NC link in Vertex BD 2026 enables users to generate PanelID.scs files directly from Vertex BD. These files can be imported into the ScotSteel software, which is widely used in the construction industry to prepare data for Scotsdale rollformers. This integration streamlines the process of finalizing manufacturing data before production, ensuring that panel information from Vertex BD is compatible with the Scotsdale rollforming machines.

Key Limitations

• Single Section Type per Panel: Only one section type is supported per panel (e.g., you cannot mix U-tracks and C-joists in the same panel).

• Service Holes: Only two sizes of service holes are supported, as defined in the ScotSteelSetup.txt file using the 'feature_map' keyword.

• Other Features: Additional features such as notches and dimples are not supported by the link.

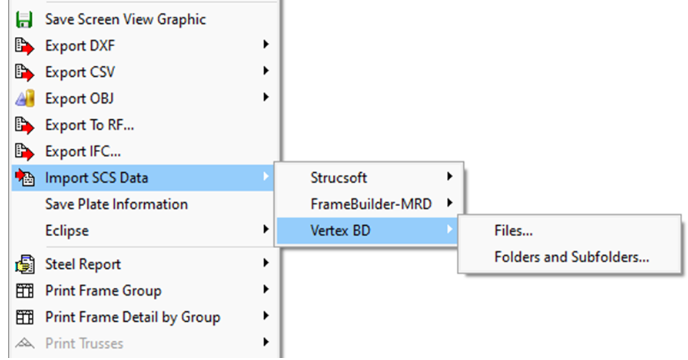

How to import data to the Scotsteel

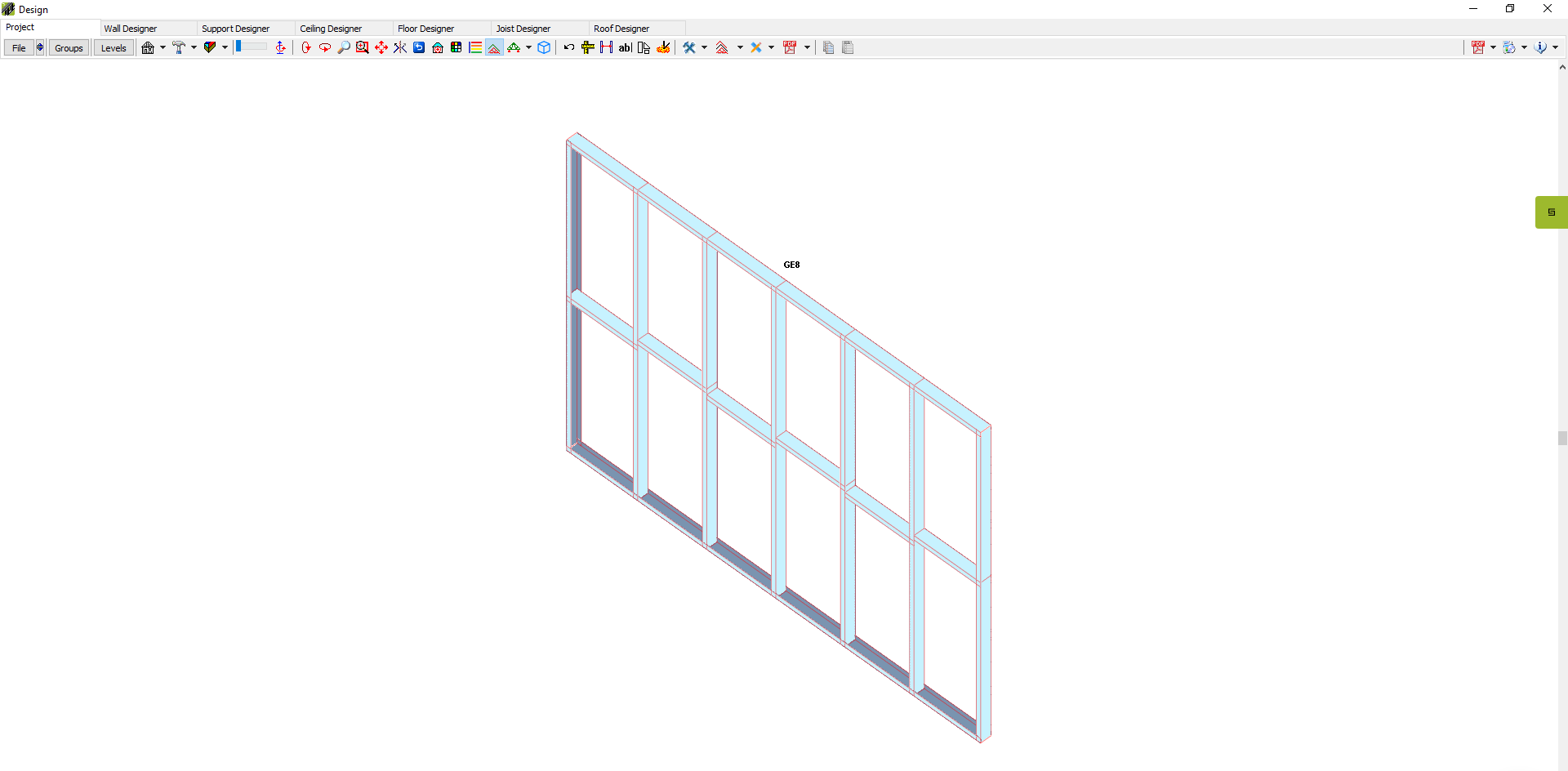

Importing file created by Vertex to the Scotsteel software.

VXBD-4276

Are you interested in the ScotSteel NC link?
If you would like to learn more or discuss how this integration could benefit your production process, please contact Vertex Sales.

You can find your local Vertex office here: Contacts - Vertex CAD & PLM Software
