Panel Drawings BD 2026

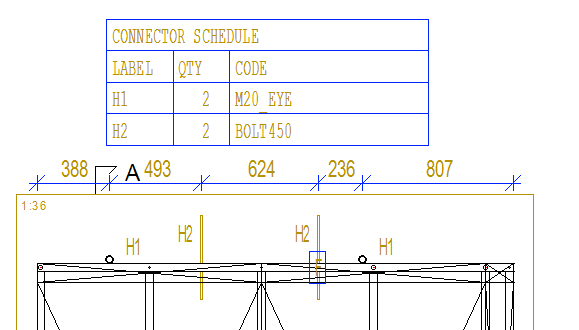

Dimension multiple building component types in one dimension on the panel drawing

Why: It was only possible to dimension either by code, library, type or hardware. The user had to edit component libraries to group components together to make the dimension work. Now you can list several specifiers at once without needing to edit the libraries. Use comma as a delimeter eg MCODE=ANCHOR,M20_EYE. Delimeter can be used with MCODE,MLIB,MHWR and Type.

VXBD-4904

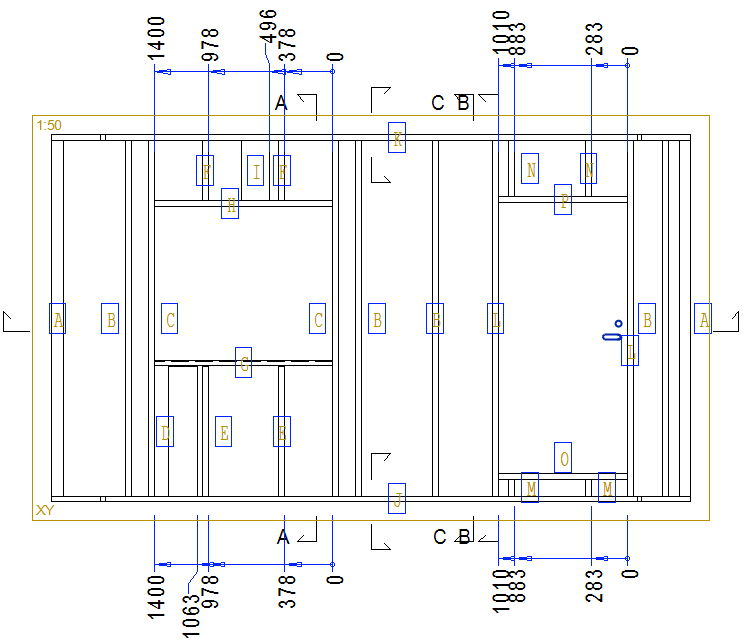

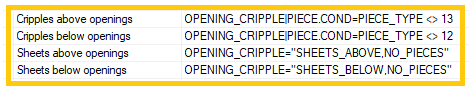

Dimension pieces and sheets above and below openings

Why: Workers in the factory need dimensions when working with sub assemblies. Now pieces and sheets above and below openings can have their own dimensions

VXBD-3501, VXBD-3875

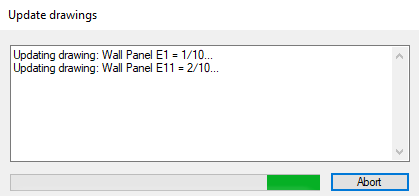

Progress window for creating/updating panel drawings

Why: Sometimes creating or updating of panel drawing takes a long time, now user can see “is it still processing or not”

VXBD-4165
