Engineering 2023

STAAD PRO export

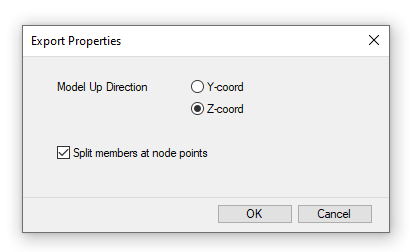

Export option to not split members at node points

When exporting STAAD Pro files you can now choose not to split members at node points



New engineering exports

New structural analysis export license option - GMatrix-7

Our light gauge steel customers are now able to purchase an export link to GMatrix-7, 3D / 7D structural analysis and design software

Homepage - http://www.matrix-7.com

Reseller - https://www.ramcadds.com/software/gmatrix-7/

More info from UK office. The new export can be found under File → Export once activated


BD-27188

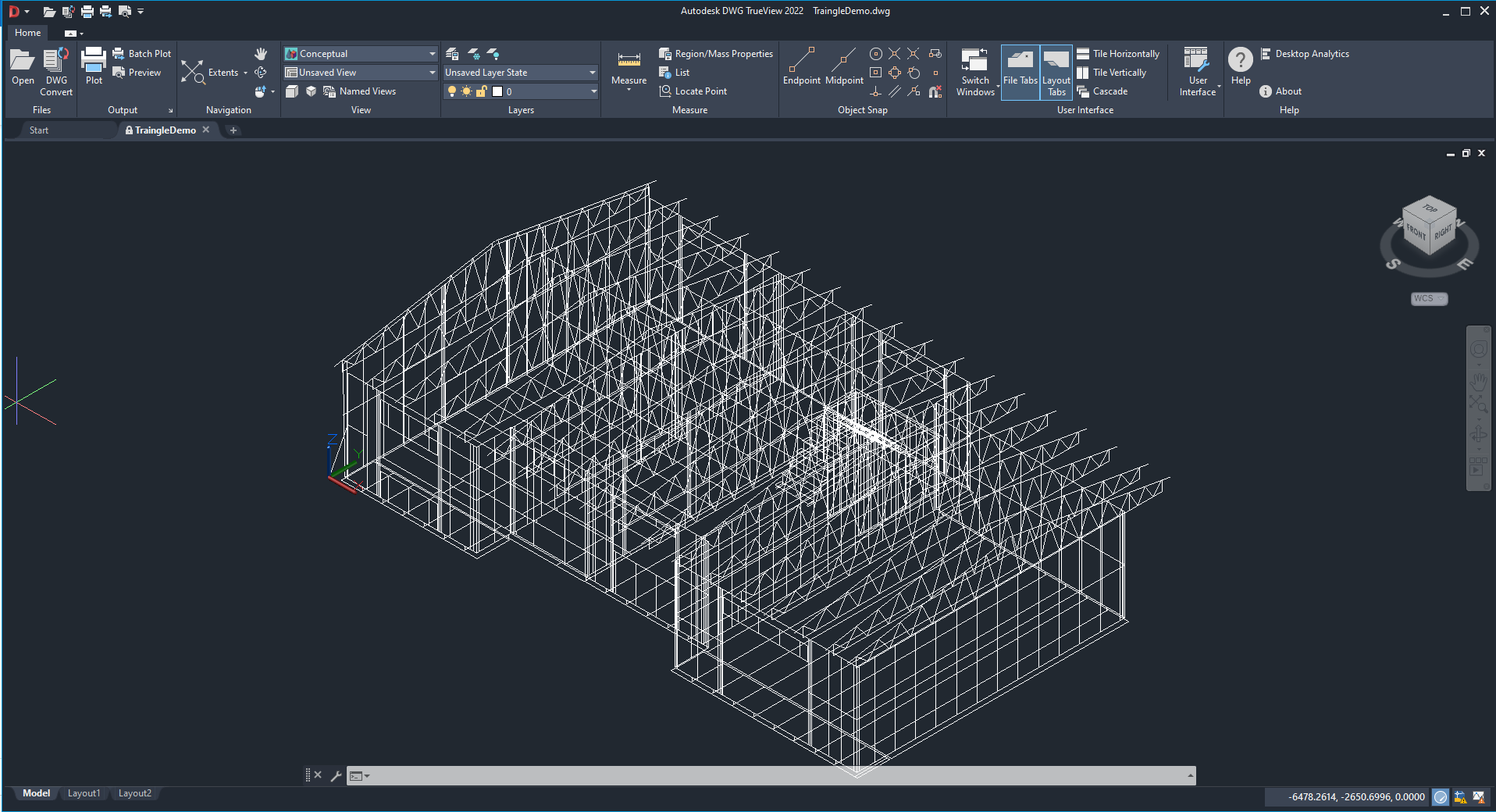

New structural analysis export license option - 3D DWG of Profile Neutral Axis

Our light gauge steel customers are now able to purchase an export link 3D DWG Neutral Axis of Profiles in the frame model. This 3D DWG can then be import into several engineering software's such as ConSteel (https://consteelsoftware.com/)


More info from UK office. The new export can be found under File → Export once activated
