Panel Drawing Replacement Text Macros

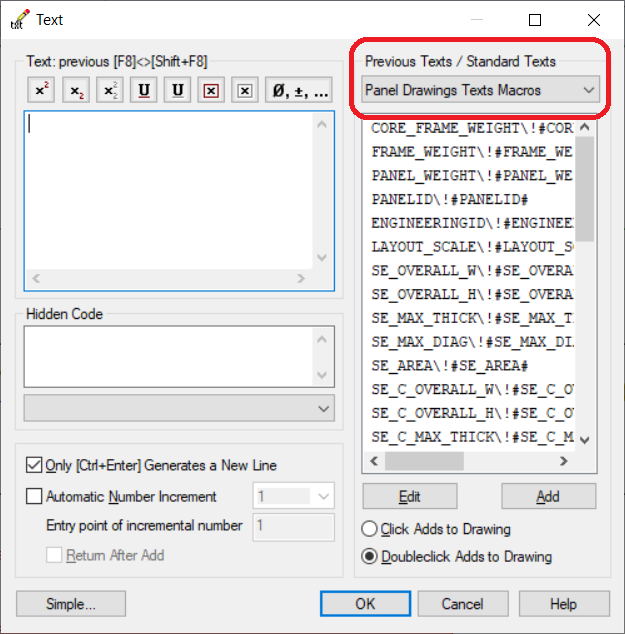

Panel drawings have special replacement text macros that only update when the panel drawing is created or updated. You can add these text macros by selecting Text on the Drafting tab. In the Text dialog box, select Panel Drawing Text Macros from the Previous Texts / Standard Texts list.


Pick the text you want to add from the list and click OK.

The description of these texts is as below.

By all parts and layers of panel
SE_OVERALL_W,SE_OVERALL_H
SE_MAX_THICK
SE_MAX_DIAG
SE_AREA

By core layer and parts of panel
SE_C_OVERALL_W,SE_C_OVERALL_H
SE_C_MAX_THICK
SE_C_MAX_DIAG
SE_C_AREA
SE_C_AREA_NET
SE_C_AREA_GROSS

By parts of core of panel
SE_C_P_OVERALL_W,SE_C_P_OVERALL_H
SE_C_P_MAX_THICK
SE_C_P_MAX_DIAG
SE_C_P_AREA

By stack (classic stacking only)

SE_STACK_NUMBER
SE_STACK_TOTNUMBER
SE_STACK_ID
SE_STACK_ROW
SE_STACK_TOT_ROW
SE_STACK_COLUMN
SE_STACK_TOT_COLUMN
SE_STACK_DEPTH
SE_STACK_IN_OPENING
SE_STACK_IS_ROTATED
SE_STACK_DELIVERY_STAGE

By truss
SPACING
WEB_ANGLE

General information
PANEL_WEIGHT
FRAME_WEIGHT
PANELID
ENGINEERINGID
LAYOUT_SCALE
QUANTITY

Any field from the wall framing tool

Anything in the wall framing tool is also available. You can add a new BEARING field (or use an existing field that is not in use), then add #WALL_BEARING# to the panel drawing. You must add the characters "WALL_" before the field name in the text macro, for example #WALL_CORNER#, #WALL_TOPC#, etc.

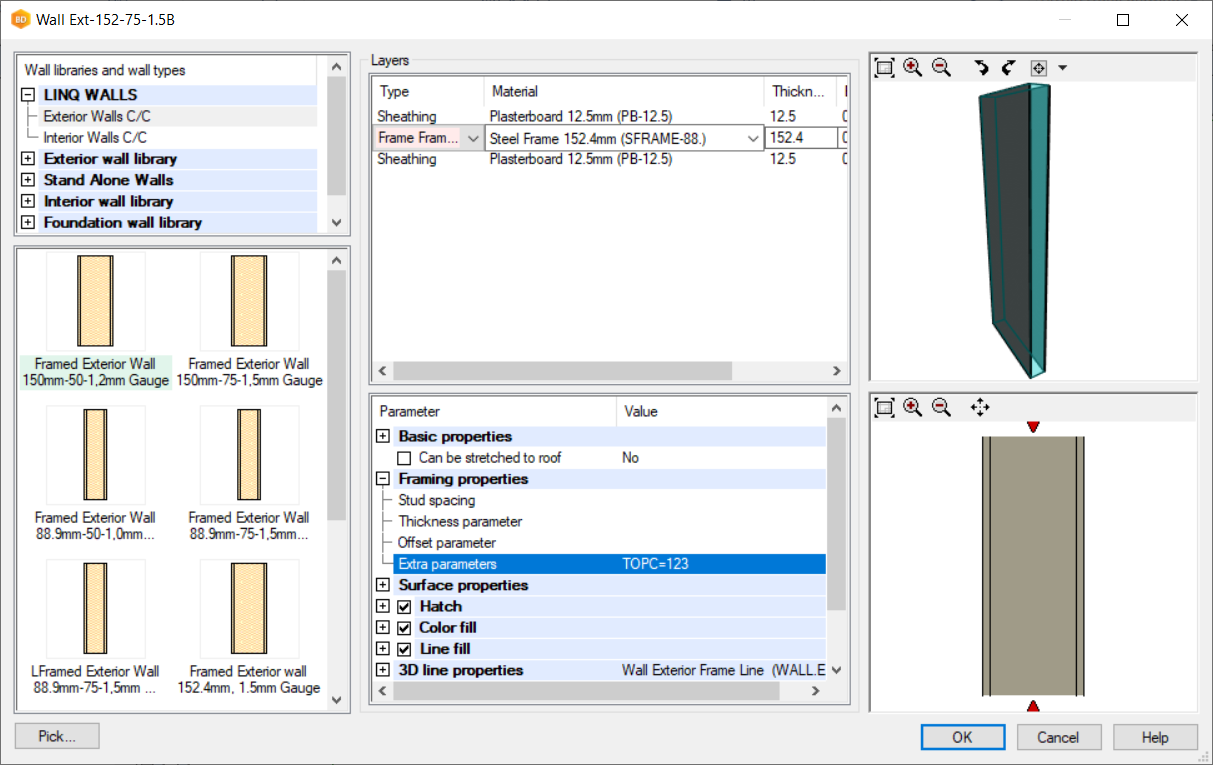

You can override any framing tool value on a wall-by-wall basis by adding it to the Extra parameters field in the framing layer properties list in the wall dialog box, for example to give specific wall names to the panel drawing. To show extra parameters, right-click in the bottom white layer parameters area of the wall dialog box and select Show all parameters. Click on the frame layer and then expand Framing properties at the layer parameters area.
