Truss and Panel Structural Drawing Label Size

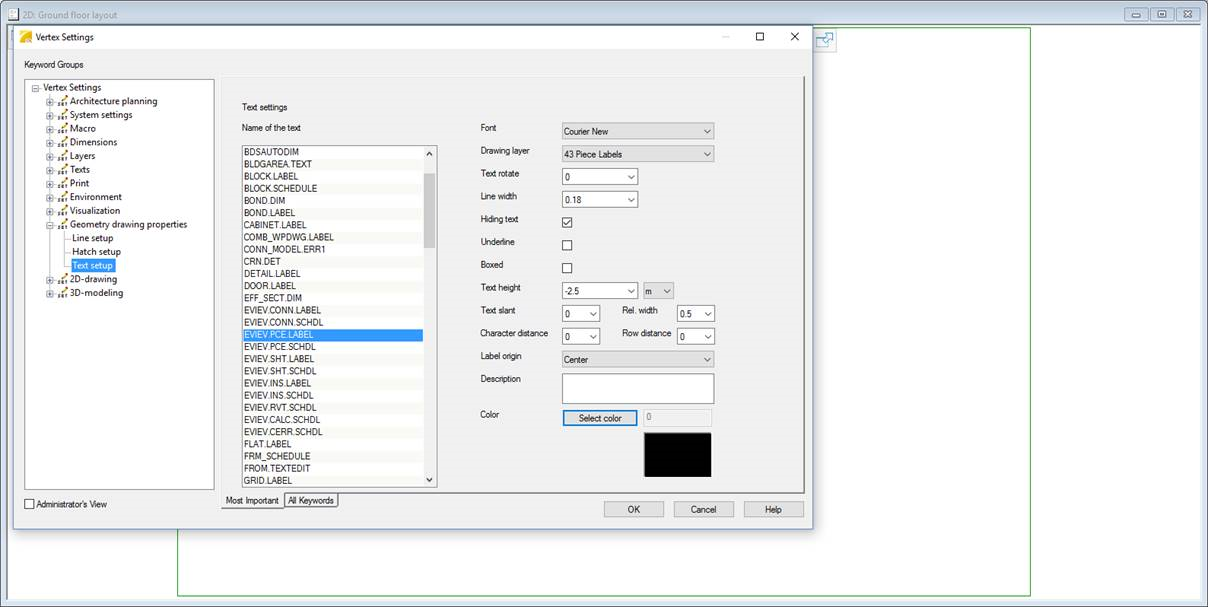

This changes the text size on truss and panel drawings. - EVIEV.PCE.LABEL

Make sure that the text size is a negative number. This means that the text is always 2.5 despite the drawing scale.

You cannot turn off the label box.

You will have to restart Vertex for the changes to take effect.

Wall Panel Label Text Height in Floor Plan

Change Truss Label Text Size
