2D Viewer

View 2D drawing

Zoom

As a user, when viewing a document, I want to zoom in and out so that I can see the details clearly.

Pan

As a user, when viewing a document, I want to pan around the 2D view so that I can navigate through the document easily.

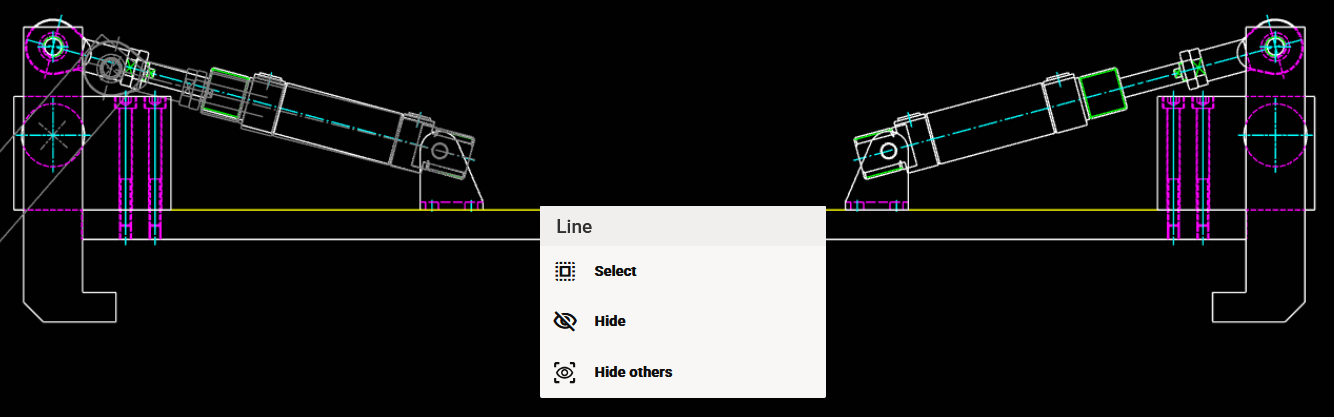

Hide

As a user, when I select several branches from the 2d drawing, I want to hide or hide others them so that I can easily affect all selected objects.

Hide Others

Restore hidden

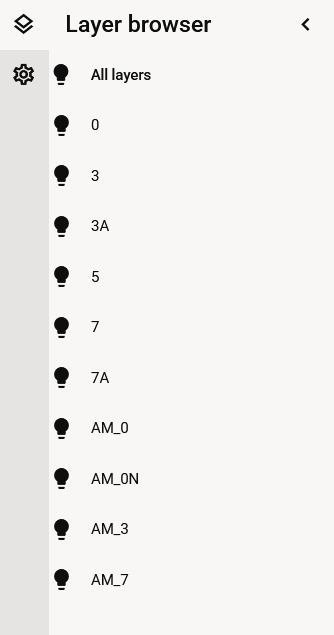

Layers

Hide / Unhide layers click the light bulb icon to switch to toggle visibility

This feature introduces support for layers within the 2D measuring tool, enabling users to organize and manage different elements of a 2D file more effectively. Layers are a fundamental part of 2D design workflows, allowing users to separate contexts, toggle visibility, and focus on specific aspects of their drawings.

Layers are essential in 2D design as they provide a structured way to manage complex drawings. By grouping related elements into layers, users can streamline their workflow, reduce visual clutter, and improve navigation within the file. The 2D measuring tool must integrate layer functionality to support these needs.

Select all layers at once

The current functionality allows users to hide or unhide layers one by one. This is inefficient for users who need to manage multiple layers simultaneously. Additionally, there may be issues with geometry visibility even when all layers are set to hidden.

• Users can select and deselect all 2D layers with a single action.

• Layer names must be verified and corrected if necessary.

• Investigate and resolve the issue where geometry remains visible despite all layers being hidden.

• Create a BD issue if improvements are required on the BD side.

Limit the Layer Browser in the 2D DWG Viewer to used layers only

TODO

Measuring

TODO
