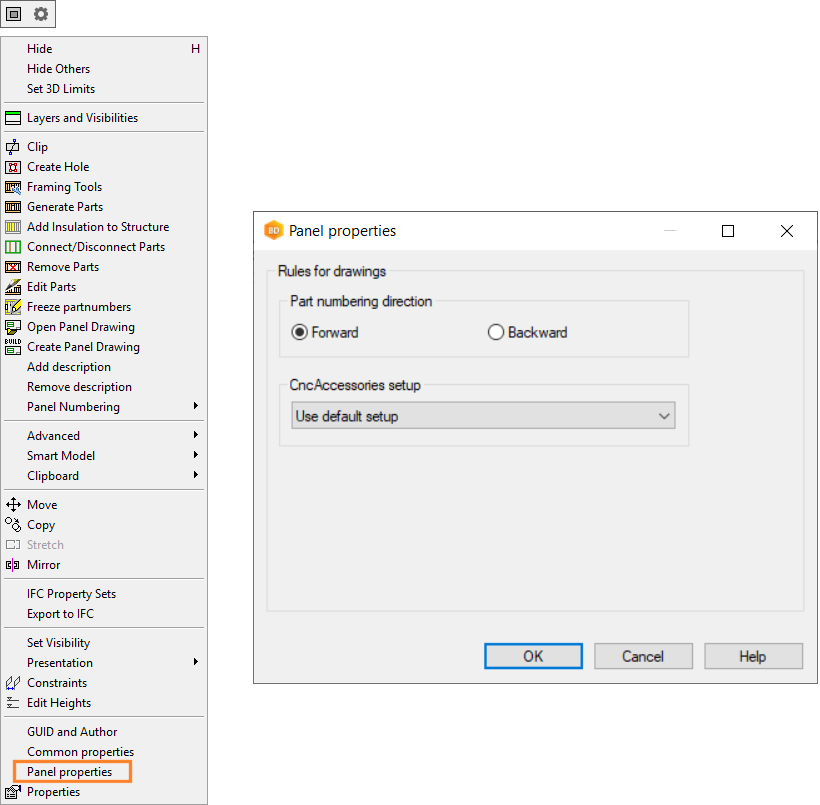

CNC Accessories to Panel Properties


New LightGaugeSteel 3D CSV format

Enhanced light gauge steel csv format that contains position of studs in the 3d model also

FRAME,Frames-GE1
STICK,GE1-A,S,89,41,41,10,1.00,1,2697.60,109.50,44.50,2698.80,109.50,44.50,1.20,1.00,0.00,0.00,-1759.00,2698.80,-1759.00,1.20,-1800.00,1.20,-1800.00,2698.80,InnerDimple,19.30,Swage,21.40,InnerService,398.80,InnerDimple,1374.30,Swage,1374.30,InnerService,1998.80,Swage,2676.20,InnerDimple,2678.30

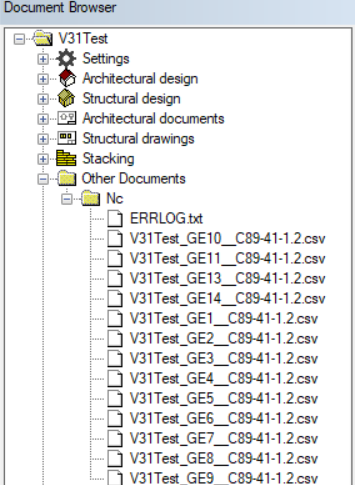

NC Files to document browser
