IFC Improvements 2025

Faster 2D geometry generation for imported IFC objects

Export filtering

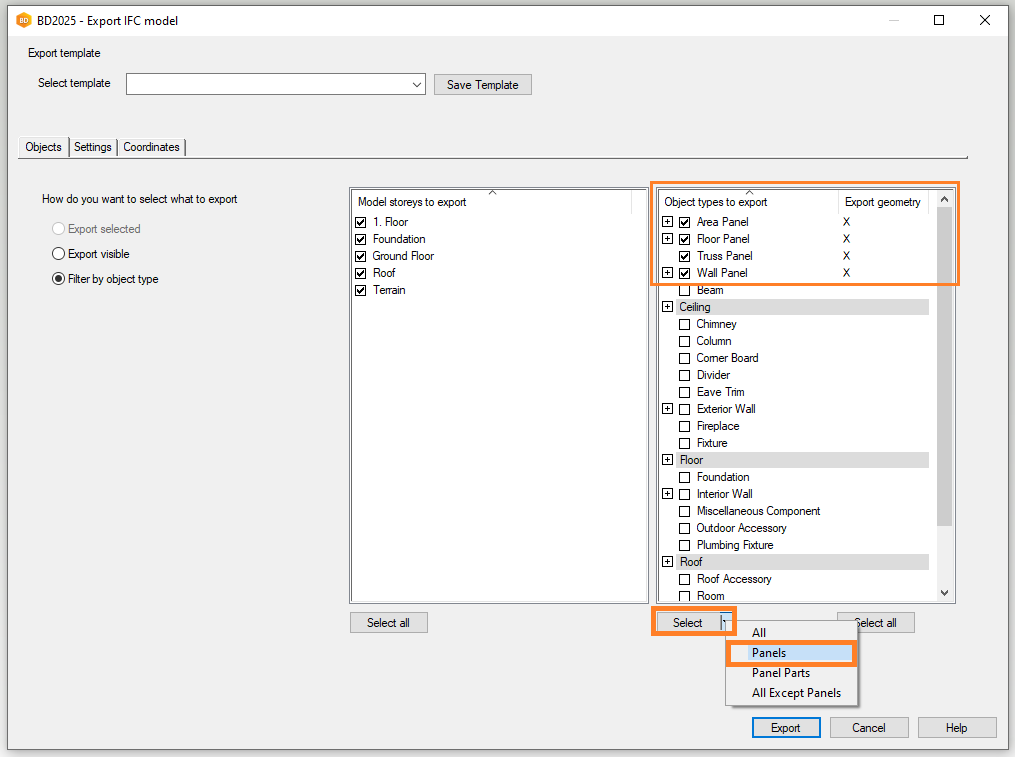

Quick selections by All, Panels, Panel Parts, All Except Panels

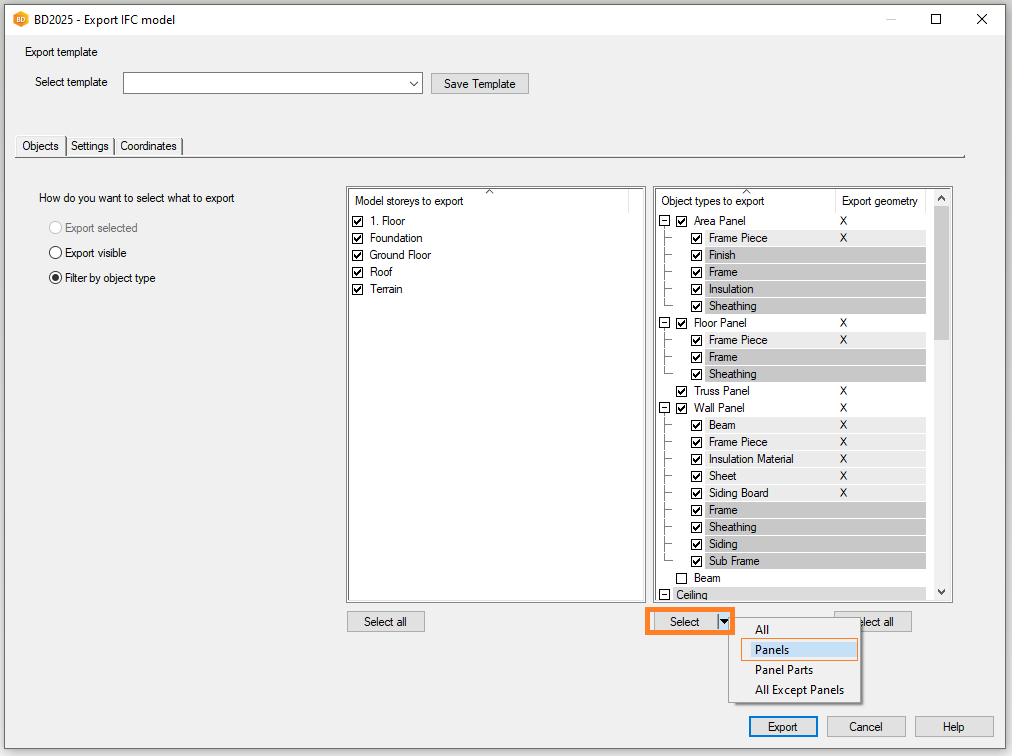

Export filtering (Collapse/Expand)

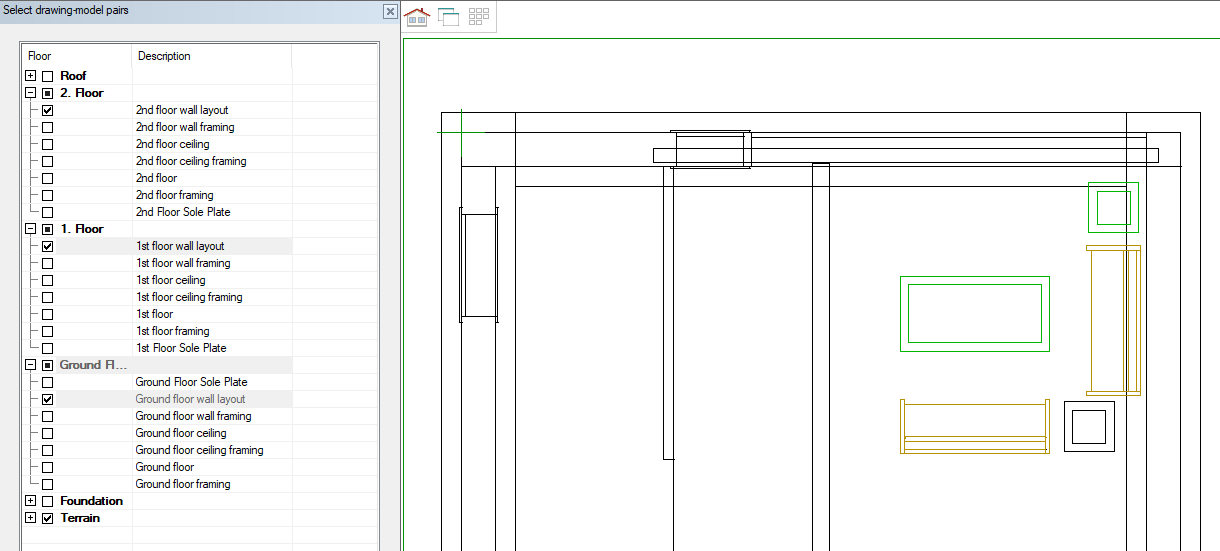

Set 2D-visibility of imported IFC objects

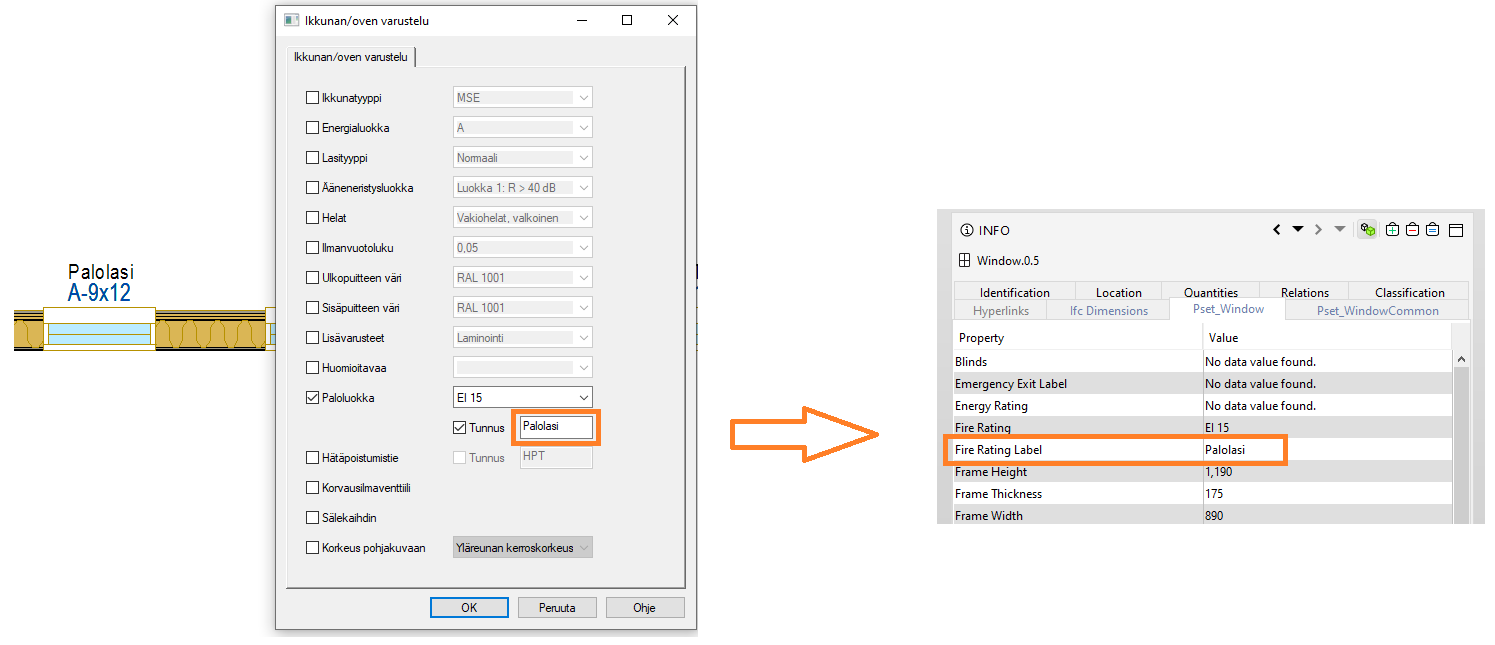

Opening accessories to IFC property set

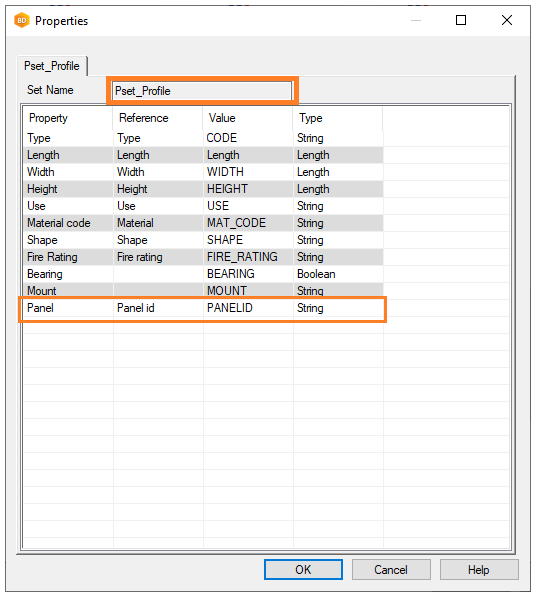

Add Panel Id to IFC property sets of profile, sheet, and insulation

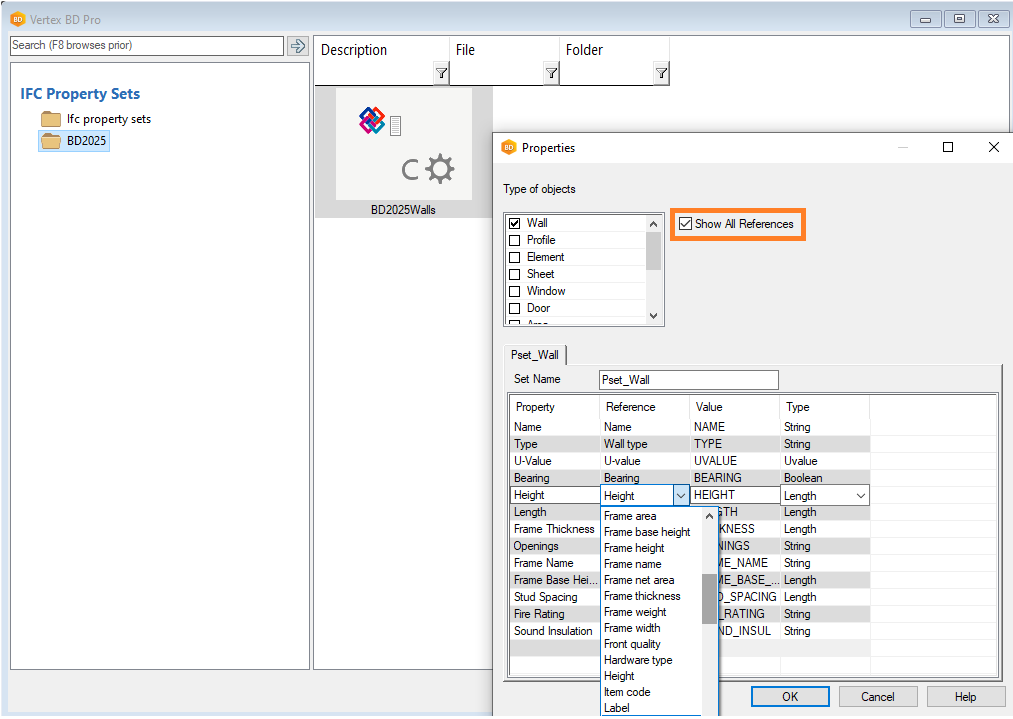

Add check box to show all references in IFC property set dialog

As an example, you can define panel specific properties for wall.

Then attach IFC property set to wall and create wall panels. IFC property sets are copied from wall to panels.

Since there are already panel specific properties, the contents of IFC property set of panels is correct from the start.
