Most Wanted Improvements 2025

You asked we listened

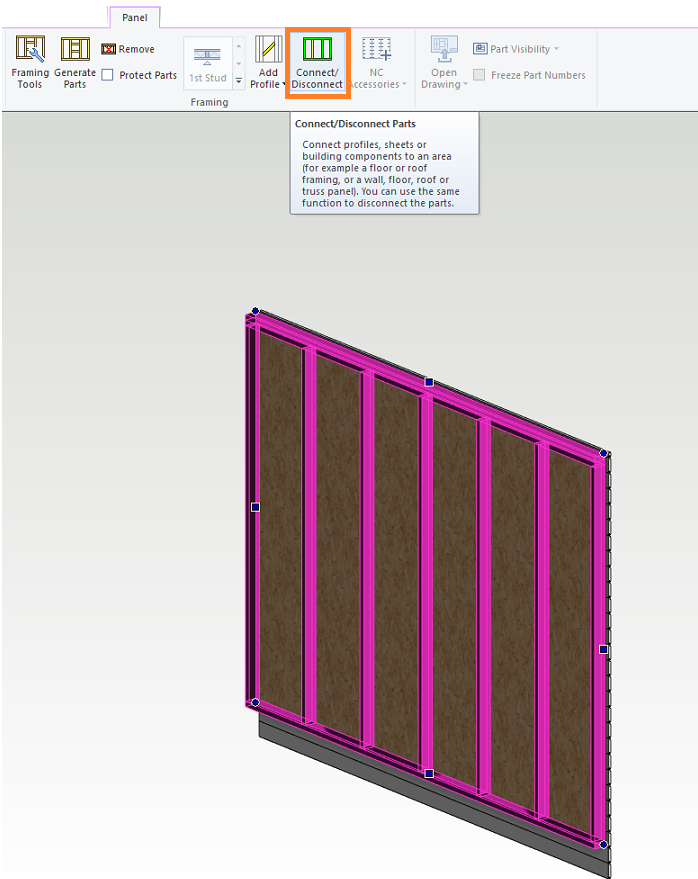

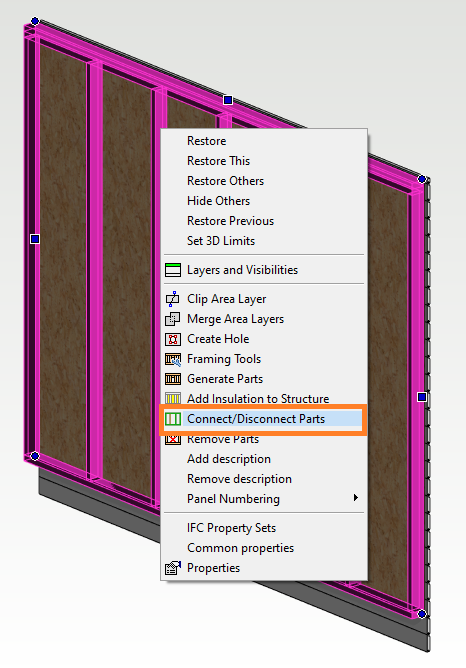

Connect/ Disconnect

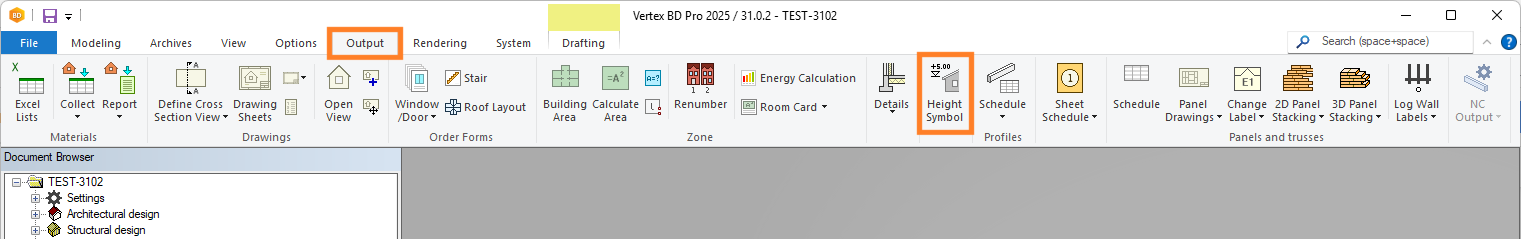

Add height macro in new location on the ribbon

Move structural columns (build beams - select columns) - move label anywhere

Now it is possible to move labels

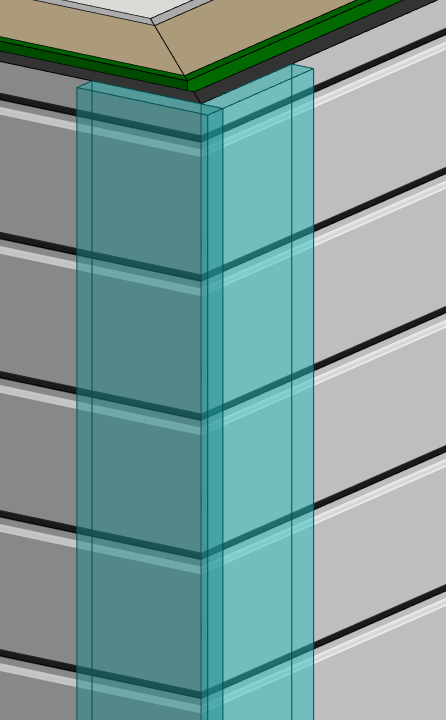

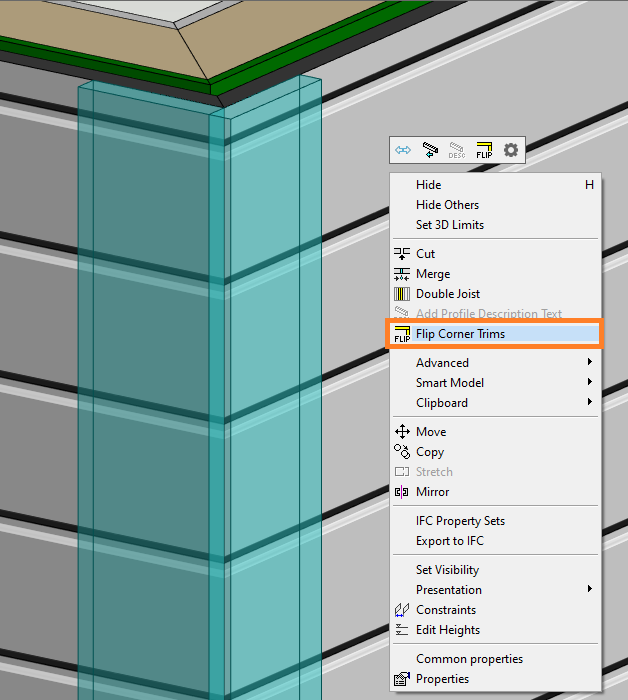

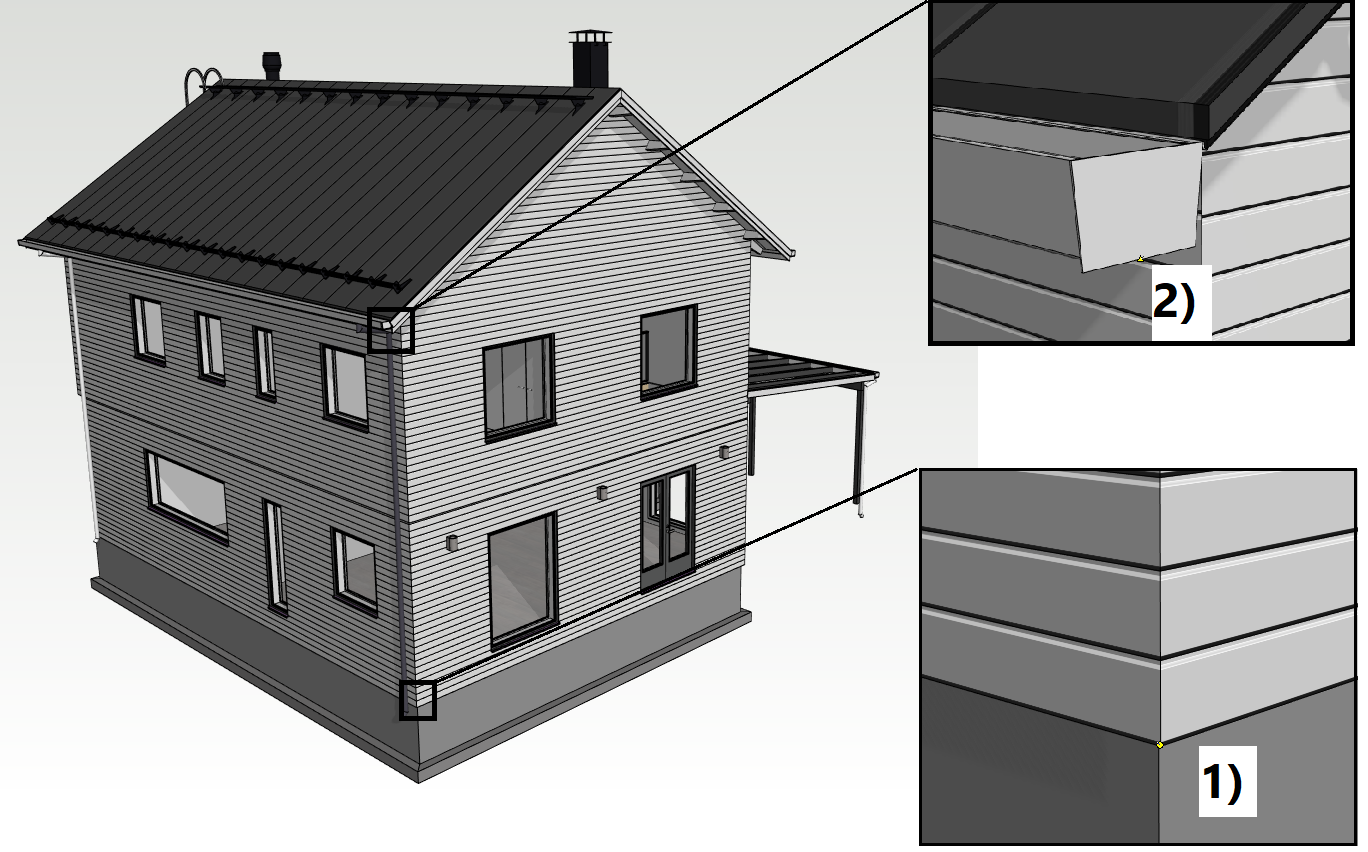

Flip corner trims

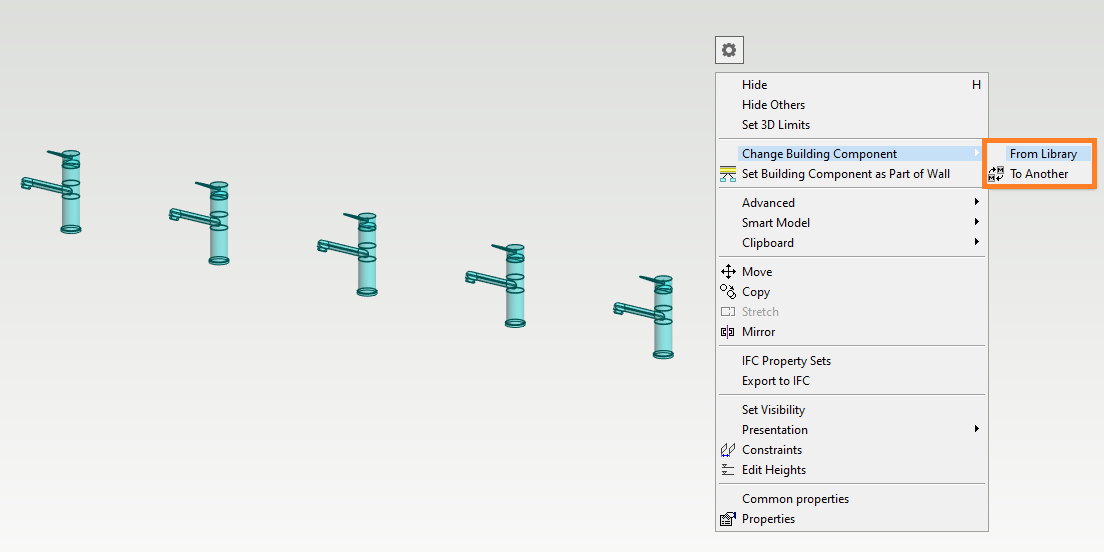

Change multiple components

Keeps origin

Possible to pick macro component from library

Note! G4-macro component not supported (31.0.0 G4P=2)

Change component to another without ref point

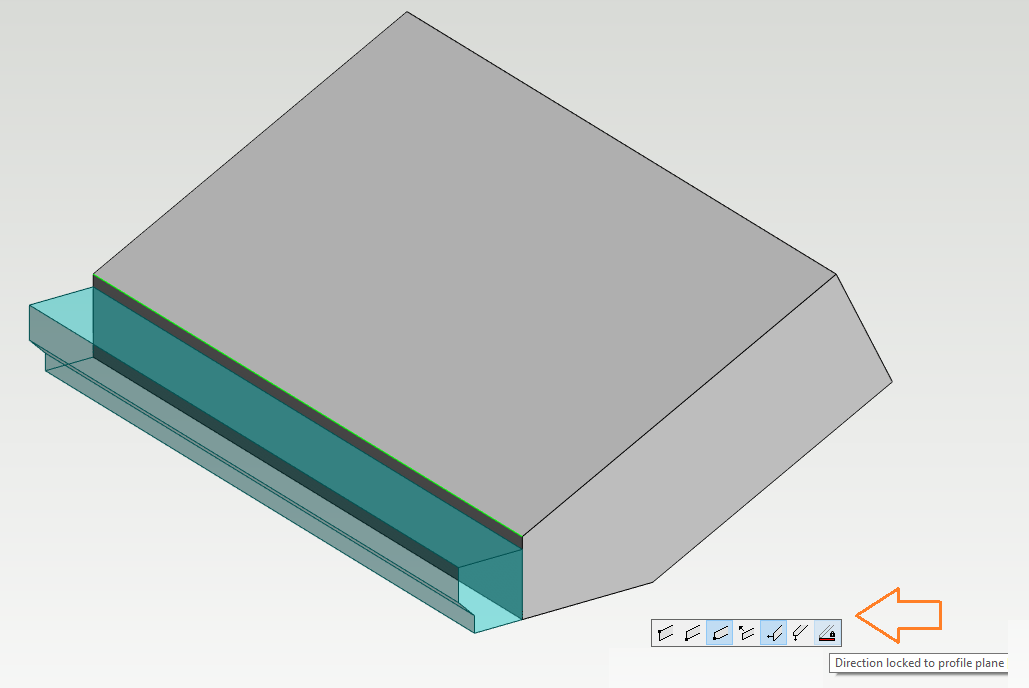

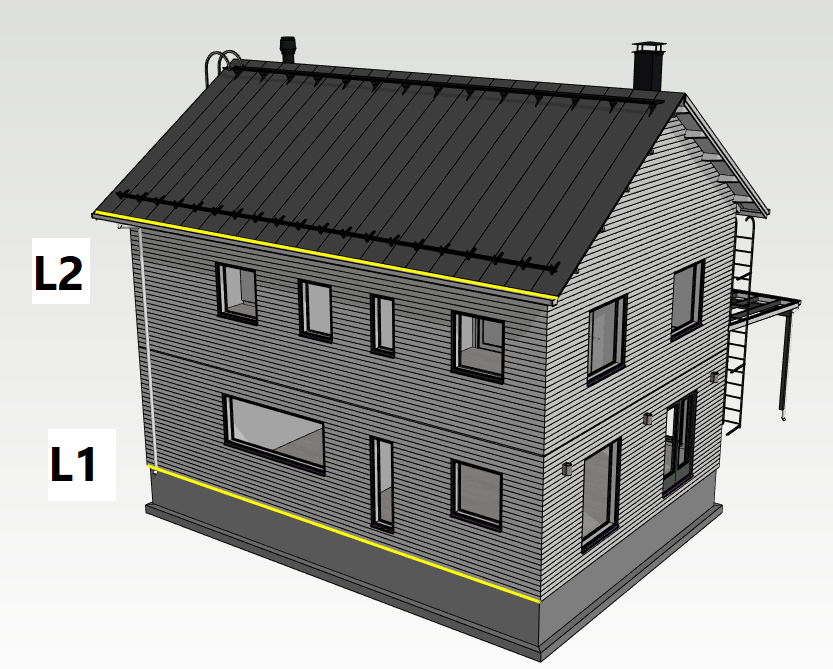

Direction locked to profile plane (eave trim sets)

Keeps position, eave trim sets, even changing roof slope

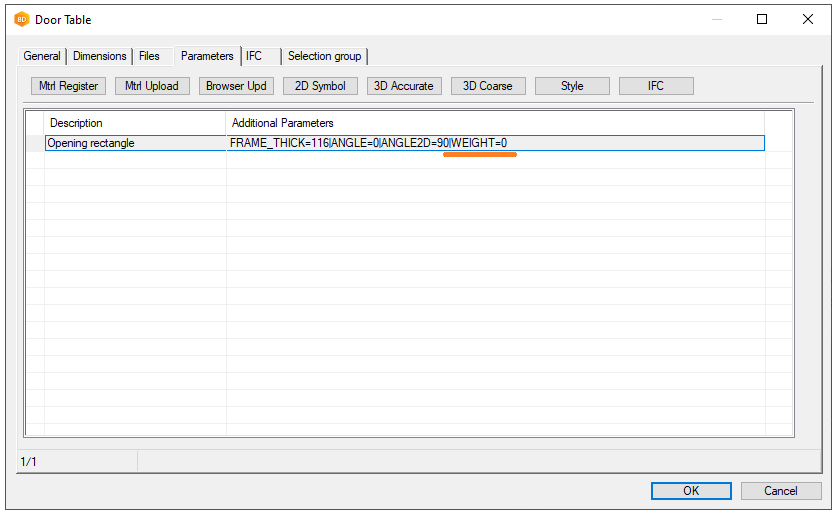

Opening weight of opening macro

WEIGHT parameter added to parameters field

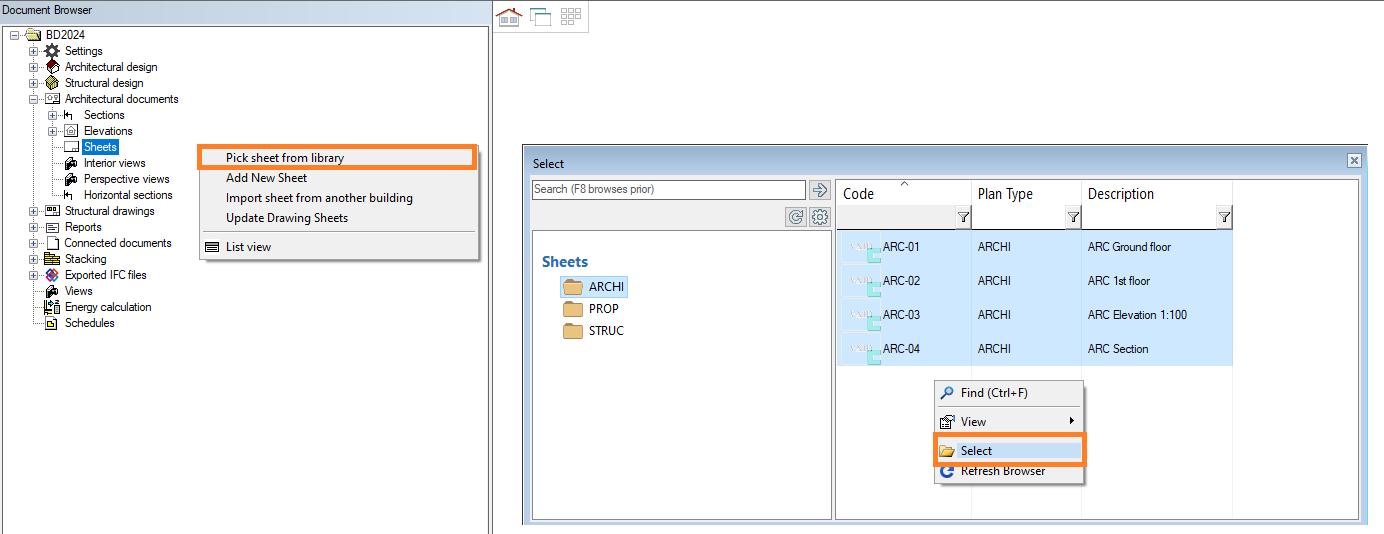

Add multiple sheets from library

Keep sheets up-to-date in custom (not in buildings)

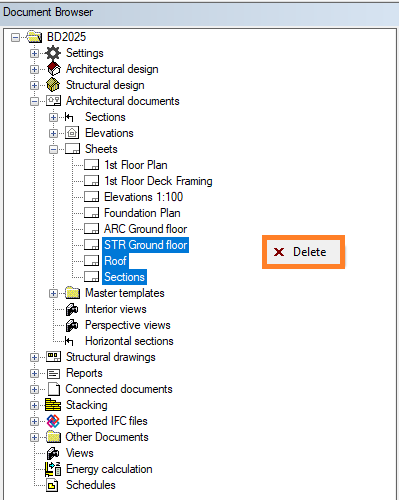

Delete multiple sheets from browser

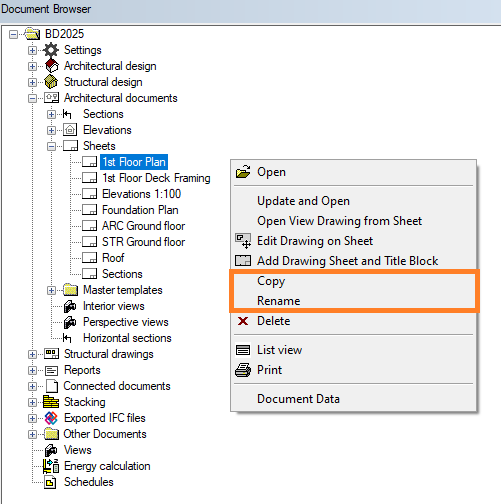

Copy and rename sheets in browser

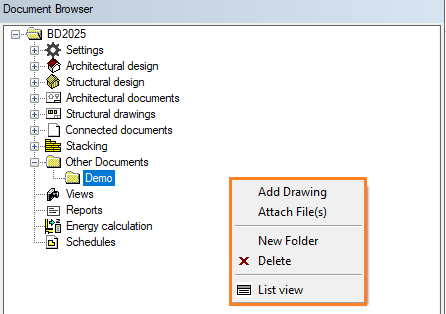

Other documents in browser

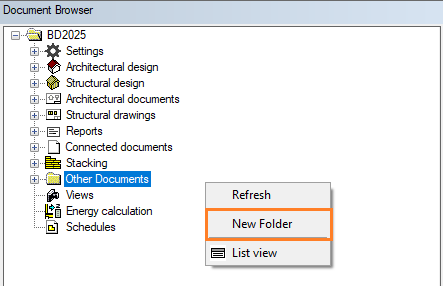

You can add drawings, attach files, create new folders

Easier to add new components

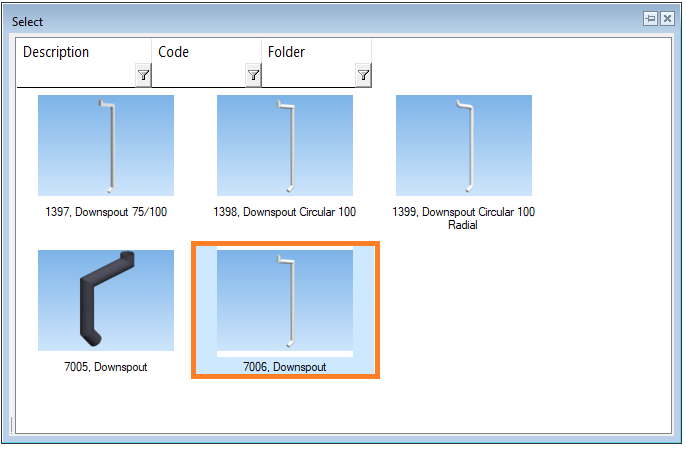

Downspout

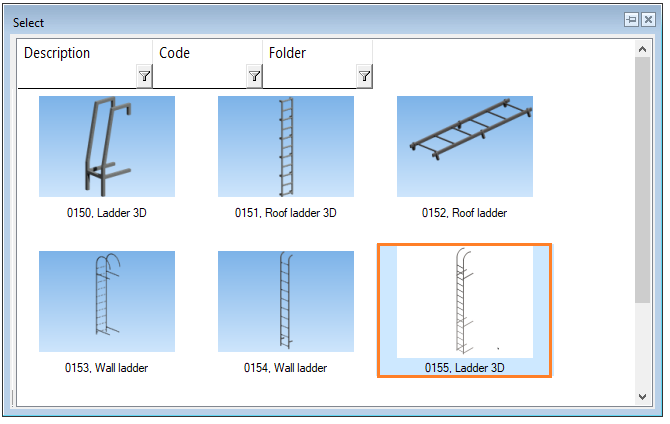

Ladders

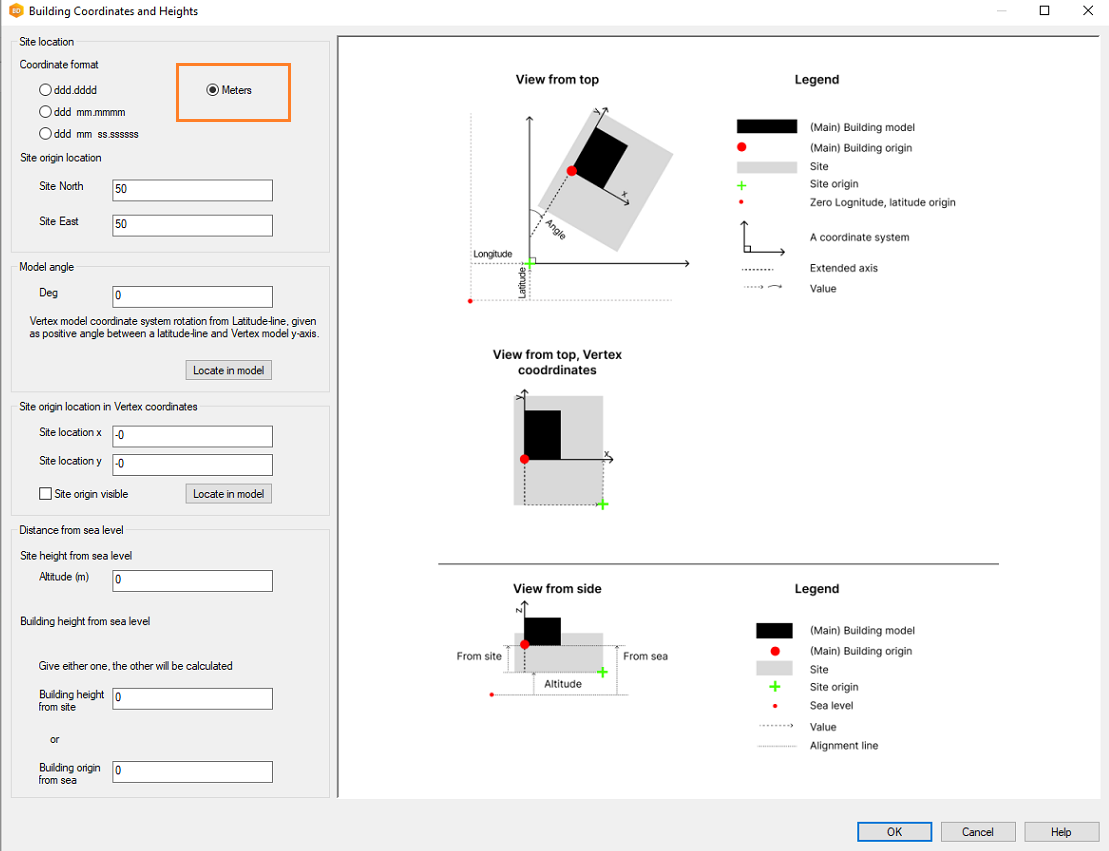

Site origin in meters (and feet)

If selected, then values for Site North and Site East are given in meters (and also in feets)

Meters supported with IFC

If Meters-option is selected, a new radio button appears in IFC import dialog. If “IFC model origin is positioned on global origin” is selected, then entire IFC-model will be located with an offset. In x-direction the offset is -Site East * 1000 millimeters and in y-direction -Site North * 1000 millimeters.

Meters supported with DWG

If Meters-option is selected and the user imports a DWG-drawing (either with drag & drop or as a reference drawing), the following question will be asked from the user. If the user answers Yes, then all DWG-entities will be located with an offset. In x-direction the offset is -Site East * 1000 millimeters and in y-direction -Site North * 1000 millimeters.
