Document Types from Vertex BD
Vertex BD classifies design documents. Vertex BD has discipline, document type and content type. The document type and the content type are divided in main and sub-types. You can see objects' Vertex BD classification data in Sync object view’s System paragraph.

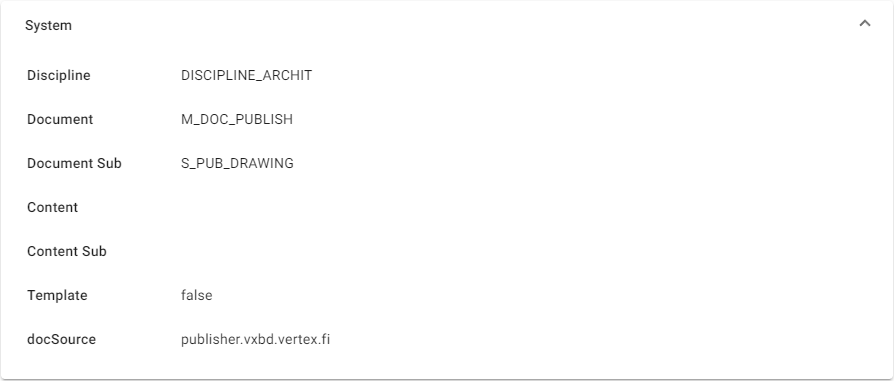

Example of Vertex BD document classification information in Sync
In Vertex Sync the BD’s data can be used to create automatic labeling rules. Use ‘property’ and ‘value’ to create a rule needed.

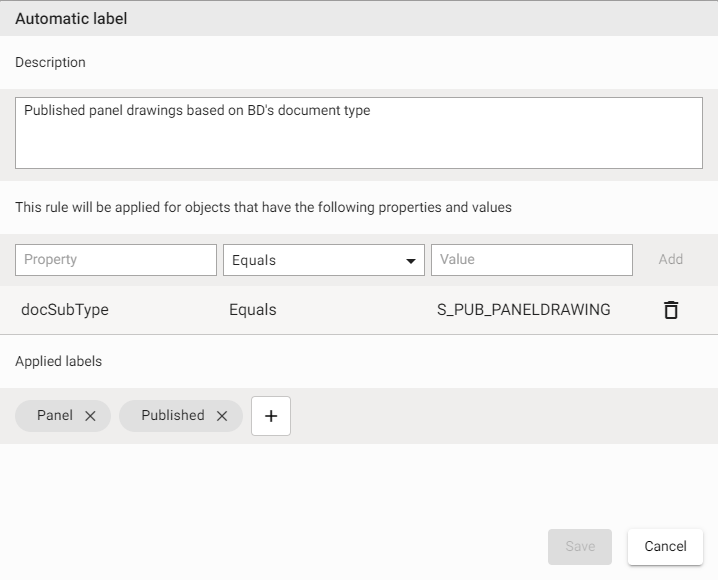

Example of automatic labeling rule in which BD’s document classification is used.
Panel drawings
Wall element drawing (3D elements)
Property | Value |
|---|---|
disciplineType | DISCIPLINE_STRUCT |
docType | M_DOC_DRAWING |
docSubType | S_DOC_PANELDRAWING |
contentType | WALLELEMENT |
Floor panel drawing
Property | Value |
|---|---|
disciplineType | DISCIPLINE_STRUCT |
docType | M_DOC_DRAWING |
docSubType | S_DOC_PANELDRAWING |
contentType | FLOORELEMENT |
Roof panel drawing
Property | Value |
|---|---|
disciplineType | DISCIPLINE_STRUCT |
docType | M_DOC_DRAWING |
docSubType | S_DOC_PANELDRAWING |
contentType | ROOFELEMENT |
Gable panel drawing
Property | Value |
|---|---|
disciplineType | DISCIPLINE_STRUCT |
docType | M_DOC_DRAWING |
docSubType | S_DOC_PANELDRAWING |
contentType | ROOFELEMENT |
contentSubType | GABLE |
Other area panel drawing (e.g. ceil)
Property | Value |
|---|---|
disciplineType | DISCIPLINE_STRUCT |
docType | M_DOC_DRAWING |
docSubType | S_DOC_PANELDRAWING |
contentType | AREAELEMENT |
Truss drawing
Property | Value |
|---|---|
disciplineType | DISCIPLINE_STRUCT |
docType | M_DOC_DRAWING |
docSubType | S_DOC_PANELDRAWING |
contentType | TRUSSELEMENT |
Frame line panel drawing
Property | Value |
|---|---|
disciplineType | DISCIPLINE_STRUCT |
docType | M_DOC_DRAWING |
docSubType | S_DOC_PANELDRAWING |
contentType | FRM_ELEMENT |
Part drawings
Panel piece drawing
Property | Value |
|---|---|
disciplineType | DISCIPLINE_STRUCT |
docType | M_DOC_DRAWING |
docSubType | S_DOC_PARTDRAWNING |
contentType | FRAMEPIECE |
Panel sheet drawing
Property | Value |
|---|---|
disciplineType | DISCIPLINE_STRUCT |
docType | M_DOC_DRAWING |
docSubType | S_DOC_PARTDRAWNING |
contentType | SHEET |
Engineering results
Truss engineering result
Property | Value |
|---|---|
disciplineType | DISCIPLINE_STRUCT |
docType | M_DOC_DRAWING |
docSubType | S_DOC_ENGINEERING |
contentType | TRUSSELEMENT |
Stack drawing
Property | Value |
|---|---|
docType | M_DOC_DRAWING |
docSubType | S_DOC_STACKDRAWING |
Views
View sheet
Property | Value |
|---|---|
disciplineType | DISCIPLINE_ARCHIT or DISCIPLINE_STRUCT or |
docType | M_DOC_DRAWING |
docSubType | S_DOC_VIEWSHEET |
Elevation
Property | Value |
|---|---|
disciplineType | DISCIPLINE_ARCHIT |
docType | M_DOC_DRAWING |
docSubType | S_DOC_ELEVATION |
Interior elevation
Property | Value |
|---|---|
disciplineType | DISCIPLINE_ARCHIT |
docType | M_DOC_DRAWING |
docSubType | S_DOC_INTELEVATION |
Perspective
Property | Value |
|---|---|
disciplineType | DISCIPLINE_ARCHIT |
docType | M_DOC_DRAWING |
docSubType | S_DOC_PERSPECTIVE |
Section
Property | Value |
|---|---|
disciplineType | DISCIPLINE_ARCHIT |
docType | M_DOC_DRAWING |
docSubType | S_DOC_SECTION |
Horizontal section
Property | Value |
|---|---|
disciplineType | DISCIPLINE_ARCHIT |
docType | M_DOC_DRAWING |
docSubType | S_DOC_HORIZSECTION |
Module drawings
Property | Value |
|---|---|
disciplineType | DISCIPLINE_ARCHIT |
docType | M_DOC_DRAWING |
docSubType | S_DOC_MODULEDRAWING |
Room Card
Property | Value |
|---|---|
disciplineType | DISCIPLINE_ARCHIT |
docType | M_DOC_DOCUMENT |
docSubType | S_DOC_ROOMCARD |
Detail
Property | Value |
|---|---|
disciplineType | DISCIPLINE_ARCHIT |
docType | M_DOC_DRAWING |
docSubType | S_DOC_DETAILSHEET S_DOC_DETAIL |
View Models
Property | Value |
|---|---|
docType | M_DOC_BLDGVIEW |
docSubType | S_DOC_VIEWMODEL |
Door & Window sheets
External window
Property | Value |
|---|---|
disciplineType | DISCIPLINE_ARCHIT |
docType | M_DOC_DRAWING |
docSubType | S_DOC_PARTDRAWING |
contentType | WINDOW_EXT |
Internal window
Property | Value |
|---|---|
disciplineType | DISCIPLINE_ARCHIT |
docType | M_DOC_DRAWING |
docSubType | S_DOC_PARTDRAWING |
contentType | WINDOW_INT |
External door
Property | Value |
|---|---|
disciplineType | DISCIPLINE_ARCHIT |
docType | M_DOC_DRAWING |
docSubType | S_DOC_PARTDRAWING |
contentType | DOOR_EXT |
Internal door
Property | Value |
|---|---|
disciplineType | DISCIPLINE_ARCHIT |
docType | M_DOC_DRAWING |
docSubType | S_DOC_PARTDRAWING |
contentType | DOOR_INT |
NC -file
Property | Value |
|---|---|
docType | M_DOC_NC |
Drawing model pairs
2D
Property | Value |
|---|---|
docType | M_DOC_MODELPAIR |
docSubType | S_DOC_DRAWING |
3D
Property | Value |
|---|---|
docType | M_DOC_MODELPAIR |
docSubType | S_DOC_MODEL |
Published documents
Detail
Property | Value |
|---|---|
docType | M_DOC_PUBLISH |
docSubType | S_PUB_DETAIL |
Drawing
Property | Value |
|---|---|
docType | M_DOC_PUBLISH |
docSubType | S_PUB_DRAWING |
Elevation
Property | Value |
|---|---|
docType | M_DOC_PUBLISH |
docSubType | S_PUB_ELEVATION |
Engineering drawing and report
Property | Value |
|---|---|
docType | M_DOC_PUBLISH |
docSubType | S_PUB_ENGINEERING |
Floor plan
Property | Value |
|---|---|
docType | M_DOC_PUBLISH |
docSubType | S_PUB_FLOORPLAN |
NC-file
Property | Value |
|---|---|
docType | M_DOC_PUBLISH |
docSubType | S_PUB_NCFILE |
Panel drawing
Property | Value |
|---|---|
docType | M_DOC_PUBLISH |
docSubType | S_PUB_PANELDRAWING |
Part drawing
Property | Value |
|---|---|
docType | M_DOC_PUBLISH |
docSubType | S_PUB_PARTDRAWING |
Material report
Property | Value |
|---|---|
docType | M_DOC_PUBLISH |
docSubType | S_PUB_MATERIALREPORT |
Section drawing
Property | Value |
|---|---|
docType | M_DOC_PUBLISH |
docSubType | S_PUB_SECTION |
Stack drawing
Property | Value |
|---|---|
docType | M_DOC_PUBLISH |
docSubType | S_PUB_STACKDRAWING |
View sheet
Property | Value |
|---|---|
docType | M_DOC_PUBLISH |
docSubType | S_PUB_VIEW |
Excel reports
Material report*
Property | Value |
|---|---|
docType | M_DOC_REPORT |
docSubType | REPORT_BOM |
Energy report*
Property | Value |
|---|---|
docType | M_DOC_REPORT |
docSubType | REPORT_ENERGY |
Engineering report*
Property | Value |
|---|---|
docType | M_DOC_REPORT |
docSubType | REPORT_ENGINEERING |
*from library only
PDF set
Property | Value |
|---|---|
docType | M_DOC_PUBLISH |
docSubType | S_PUB_PDFSET |
File formats
GTFL 3D model
Property | Value |
|---|---|
docType | M_EXT_MODEL |
docSubType | GLTF |
IFC model
Property | Value |
|---|---|
docType | M_EXT_MODEL |
docSubType | IFC |
