Model
Purpose of use
A 3D model is a graphical, three-dimensional representation of a real-world part or assembly. Various formats of 3D models can be stored in Flow. There is a specific object type reserved for models in G4 and SW formats. In this text, the models produced with the G4 software are specifically referred to. A model is almost always linked to an item, and related work drawings are also associated with the model. Thus, the model, item, and drawing are all interconnected. The model card can store the necessary metadata, but in practice, it is often sufficient to thoroughly complete the metadata for the related item, as models are accessed starting from the item or item structure.
Look at: Drawing
Functions
General functions

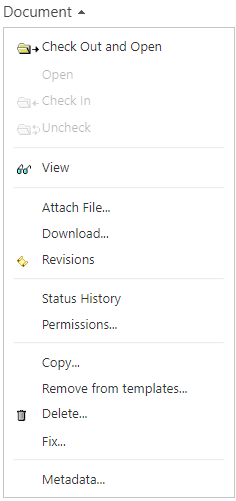

Objects are searched, added and processed in the same way as all other objects. Note, however, that editing a model requires a G4 software license. Usually, the default program for a G4 model object in Windows is G4 itself, so selecting "Reserve and Open" will open the model in G4, but the item will not be activated. This is not recommended because opening the item ensures that both the item is activated and the model's graphics open in the G4 display simultaneously, and the item structure updates correctly when returned to Flow.
Look at page Handling objects and its subpages.
Instructions related to models and modeling
Links to general instructions
