Drawing
Purpose of use
Drawings are created with CAD software, such as Vertex G4 or SolidWorks. A drawing is two-dimensional and usually generated automatically from a 3D model or assembly, but the designer has the option to create a drawing without a 3D model. A drawing includes projections chosen by the designer from the model and provides the necessary information for manufacturing.
In Vertex Flow, there is a dedicated object type for drawings in G4 format, another for SolidWorks drawings, and separately, a third object type reserved for drawings from other CAD software. The object type "Drawing" is reserved specifically for the G4 drawing.
Tools

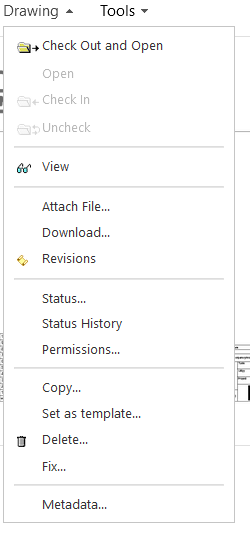

Working with drawing objects in a browser interface is mainly related to editing metadata, performing workflow operations or adding connections to other objects. Bulk editing of drawing data can be done through the Trolley. Mass transfer of drawings is performed using the import and export tool.
Links to general instructions
