Panel Drawings + Publisher 2023

Panel drawings

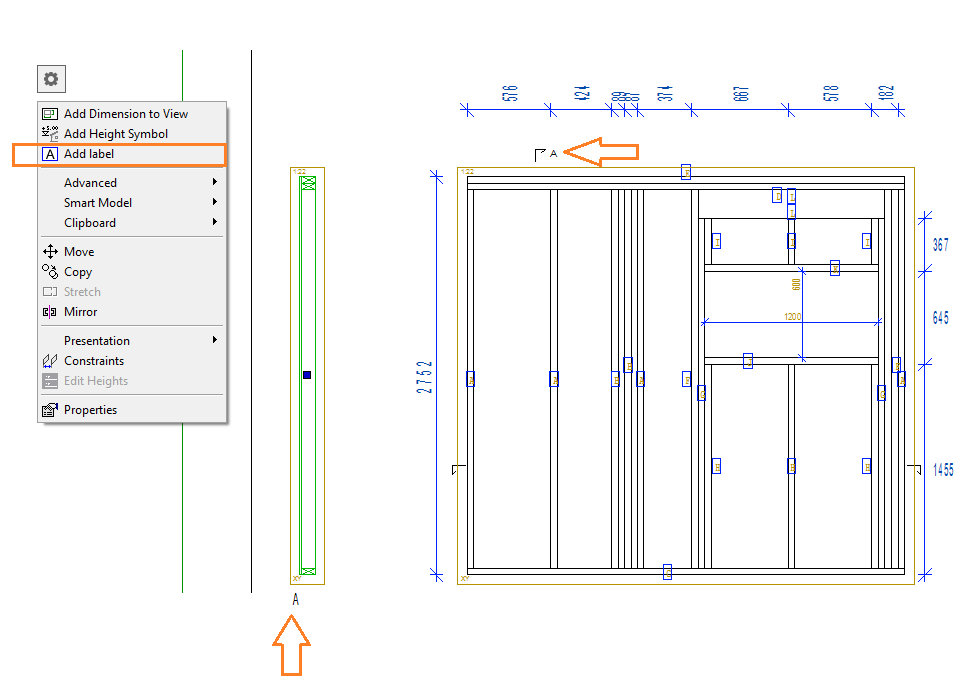

Section label connection for panel drawing views





PDF

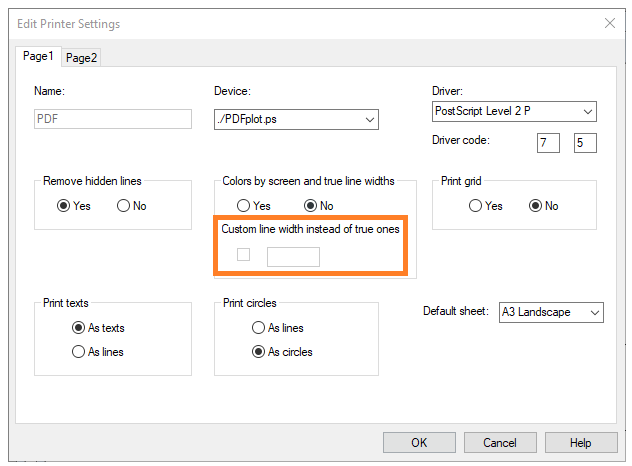

Possibility to print PDF with colors on screen and with custom linewidth


Note! Also supported in publisher with linewidth 0.01

Print PDF sets by the panel stacking order


If the PDF set name includes ManufOrder, for example "Walls-ManufOrder", the set will be sorted by the stack row, column and depth information if you have created panel stacks in your project.

Publisher

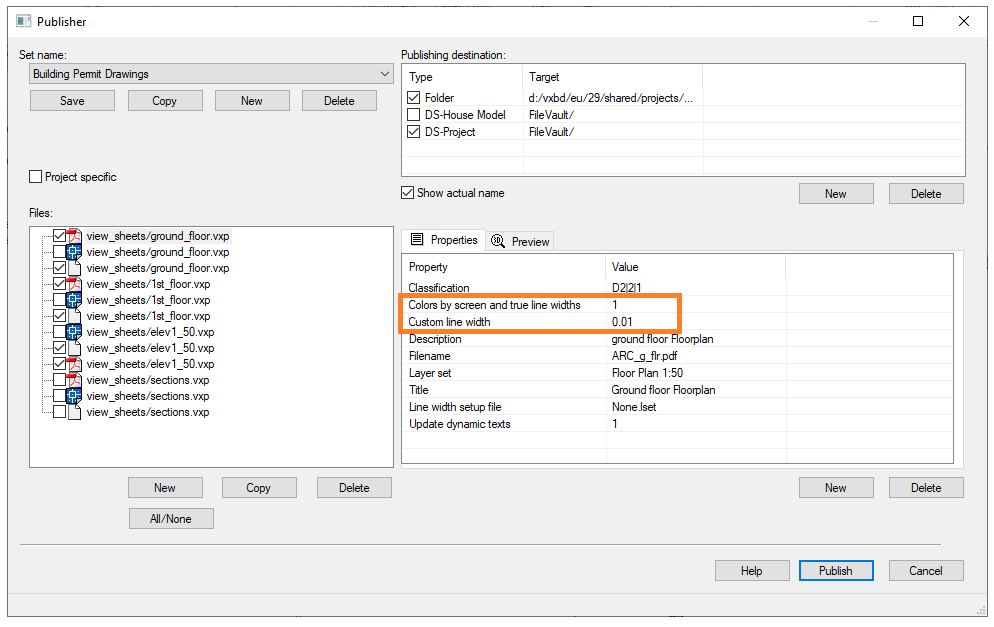

Possibility to publish with colors on screen and with custom linewidth


Note! Also supported in publisher with linewidth 0.01




FILEINFO data to be supported with filename in file properties

Properties: Destination path, prefix are supported
With separate drawings also FileName
