8.5 Top Drop for gable end roof panels
- In the case of gable end truss, whole top need to be dropped to accommodate gable end roof panels over it.

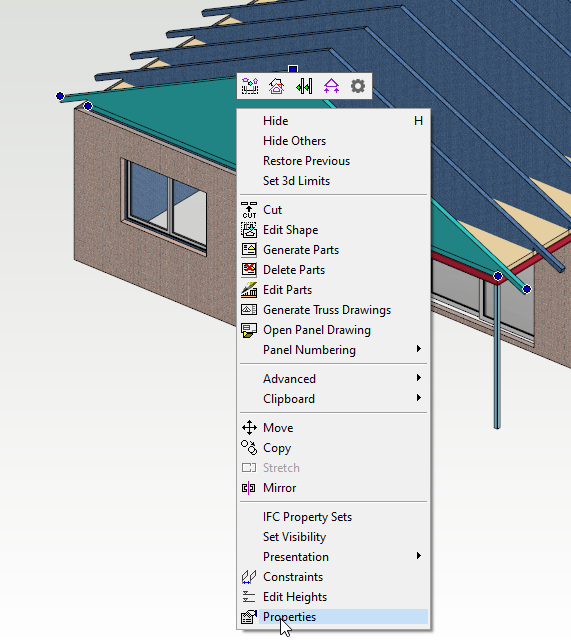

- First select truss/s. Right click and from the contextual menu select 'Properties’.

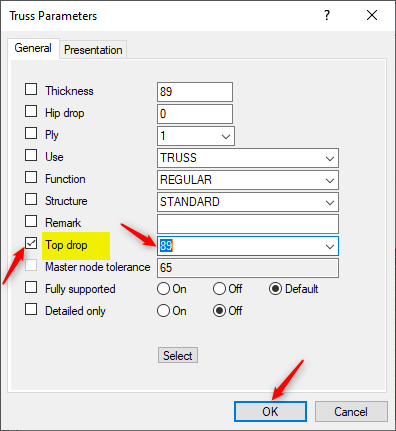

- Truss parameter dialog box will appear. Tick ON Top drop by 89mm and click on OK

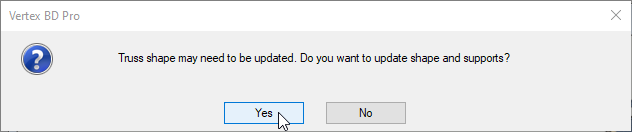

- Click on 'Yes' to update shape and support.

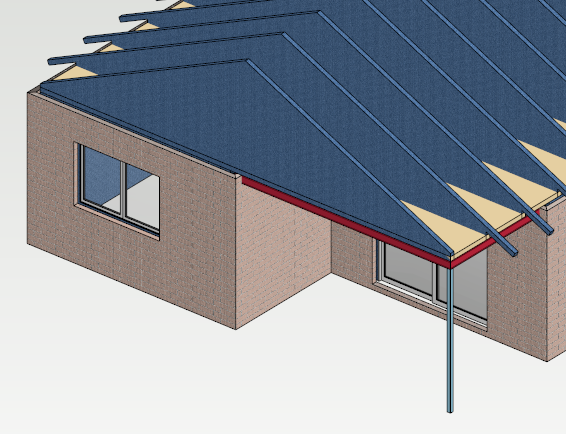

- Now whole top of the gable end truss have been dropped to accommodate gable end roof panels over it.
