8.4 Hip Drop for hip panel/rafters

  • In order to accommodate hip and gable end roof panels, hip trusses and gable end last truss need to be dropped

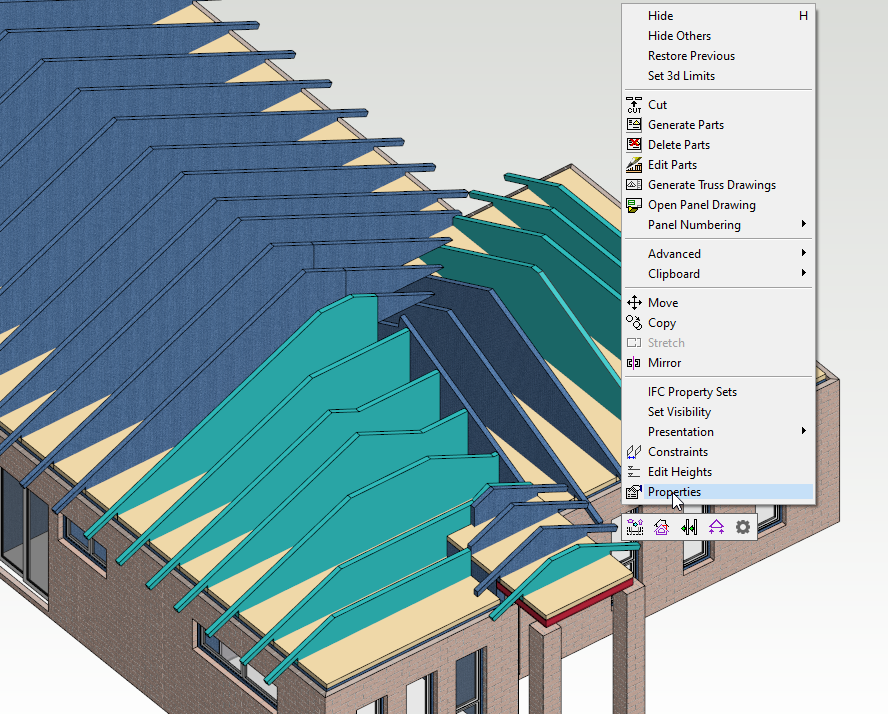

  • E.g. First select truss/s. Right click and from the contextual menu click on  ‘Properties’.

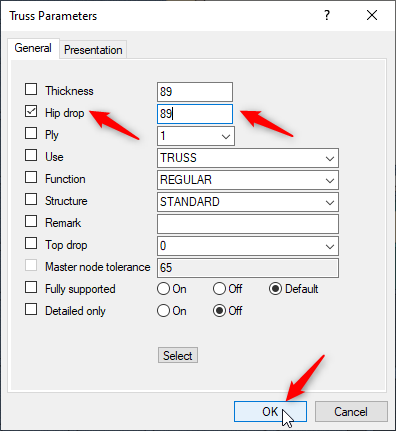

  • Truss parameter dialog box will appear. Tick ON Hip drop by 89mm and click OK

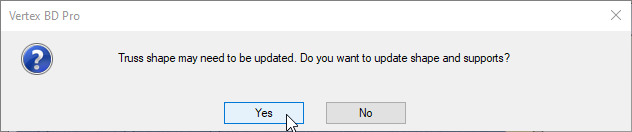

  • Click on Yes  ( to update the shape and supports )

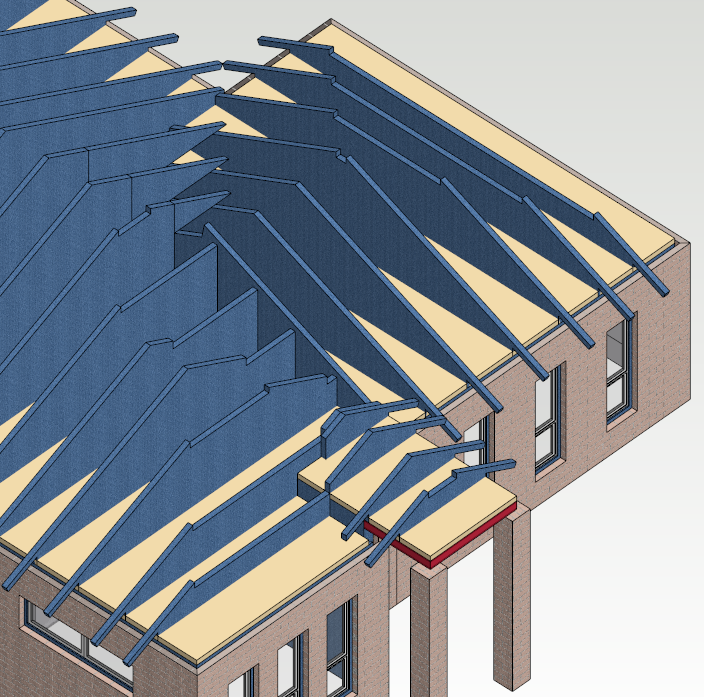

  • As you can see that the selected trusses now have a hip dropped to accommodate roof panels.
