Smart constraint tool in sketch

Sketch more agile than ever

There is now an intelligent constraint tool in sketcher, similar to the one in assemblies

In the sketcher, there is now an intelligent condition tool corresponding to assemblies. With the intelligent condition in the sketcher, you can easily define your sketches with a single action. Additionally, copying holes to similar corners is now easily achievable.

The constraint tool, familiar from assemblies, is now available in the sketcher

Now, you don't have to switch tools to set sketch constraints. You can define the sketch and choose the appropriate constraint while working.

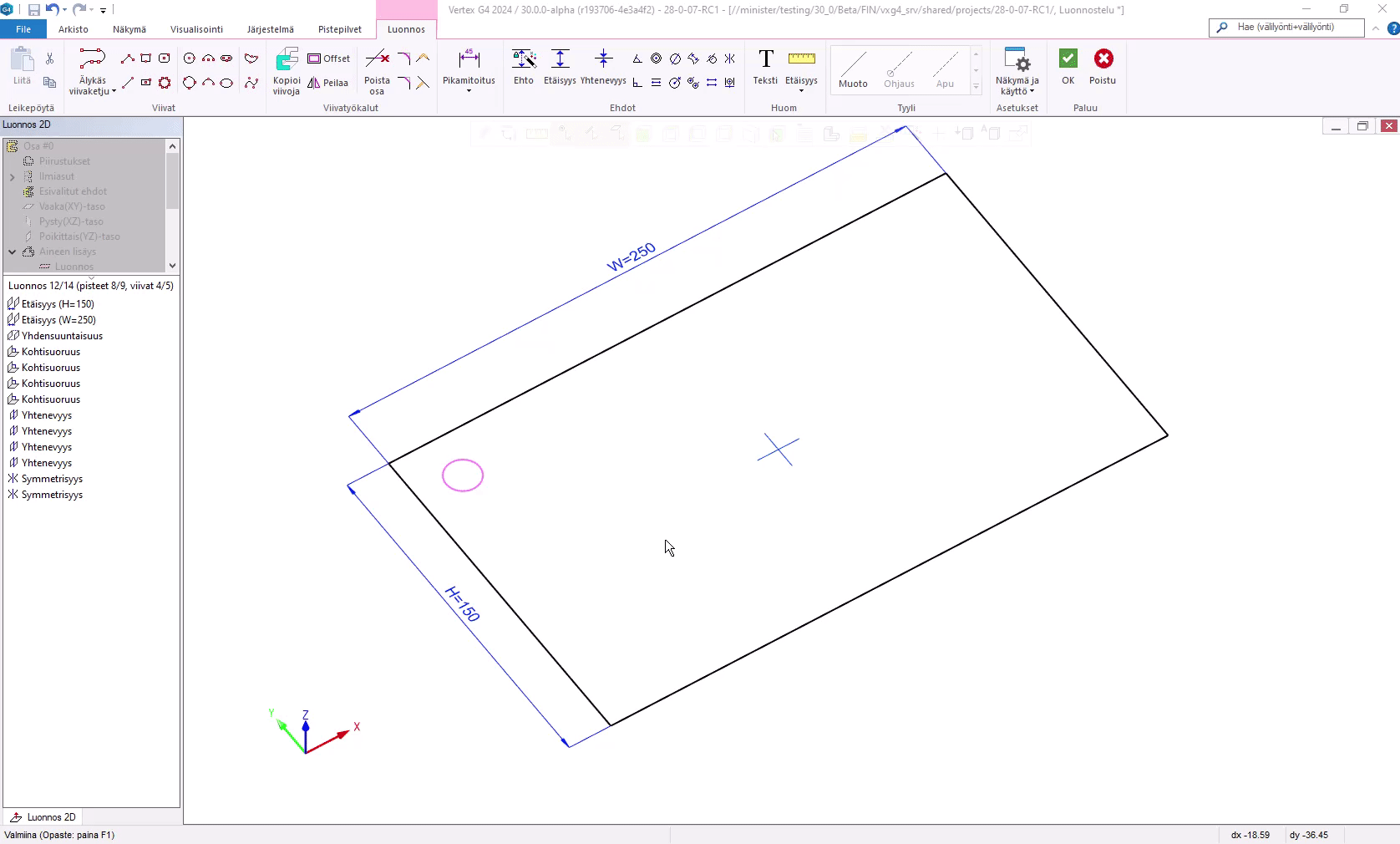

In addition to adding regular constraints, you can also use the new 'copy to corners' feature. This is demonstrated in the video below. When selecting a hole, the program positions it to all similar corners found in the sketch.
