Panel Drawings

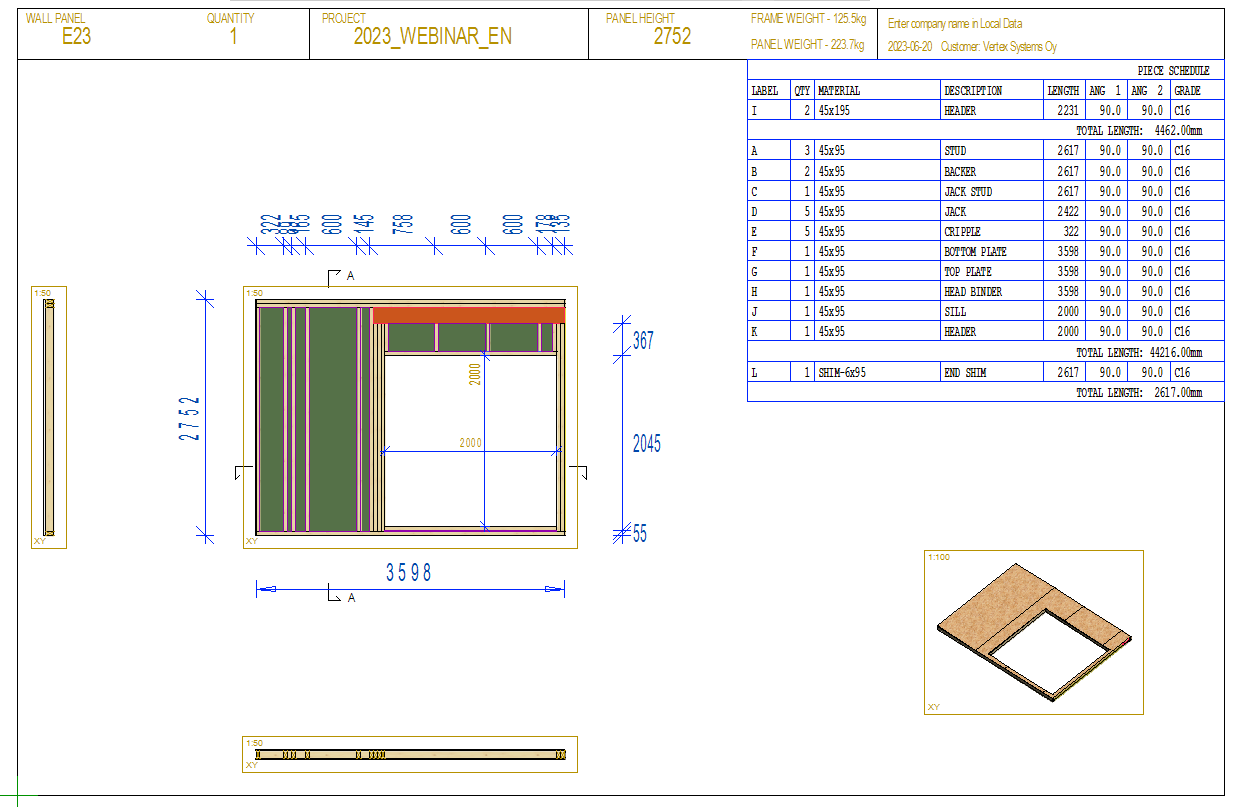

Panel drawings

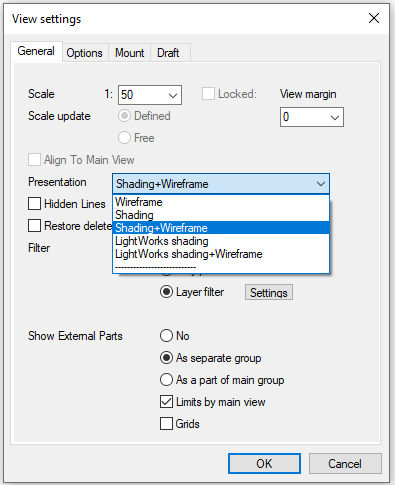

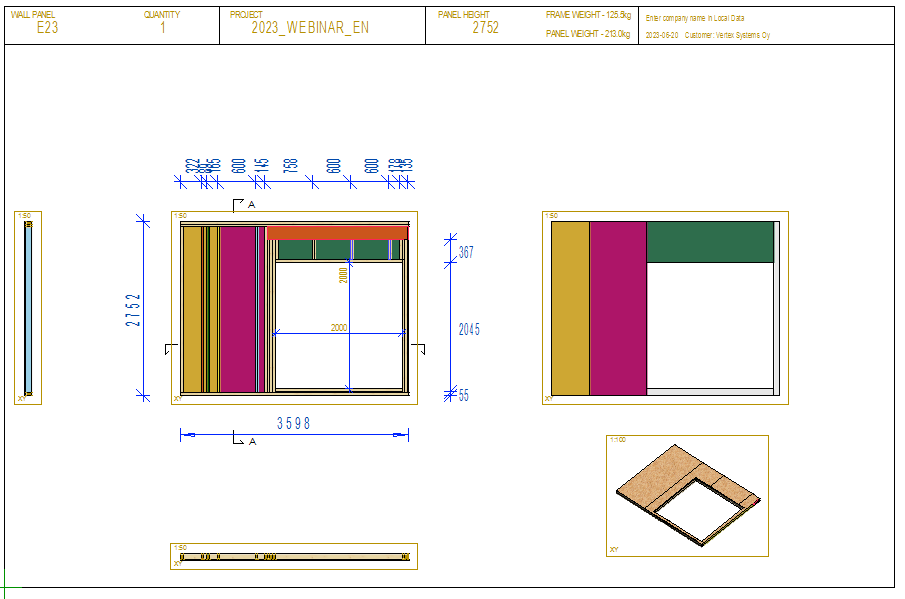

Colors in panel drawings

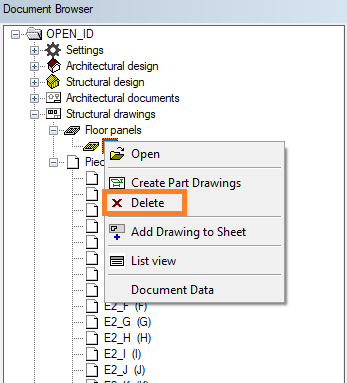

Delete drawing

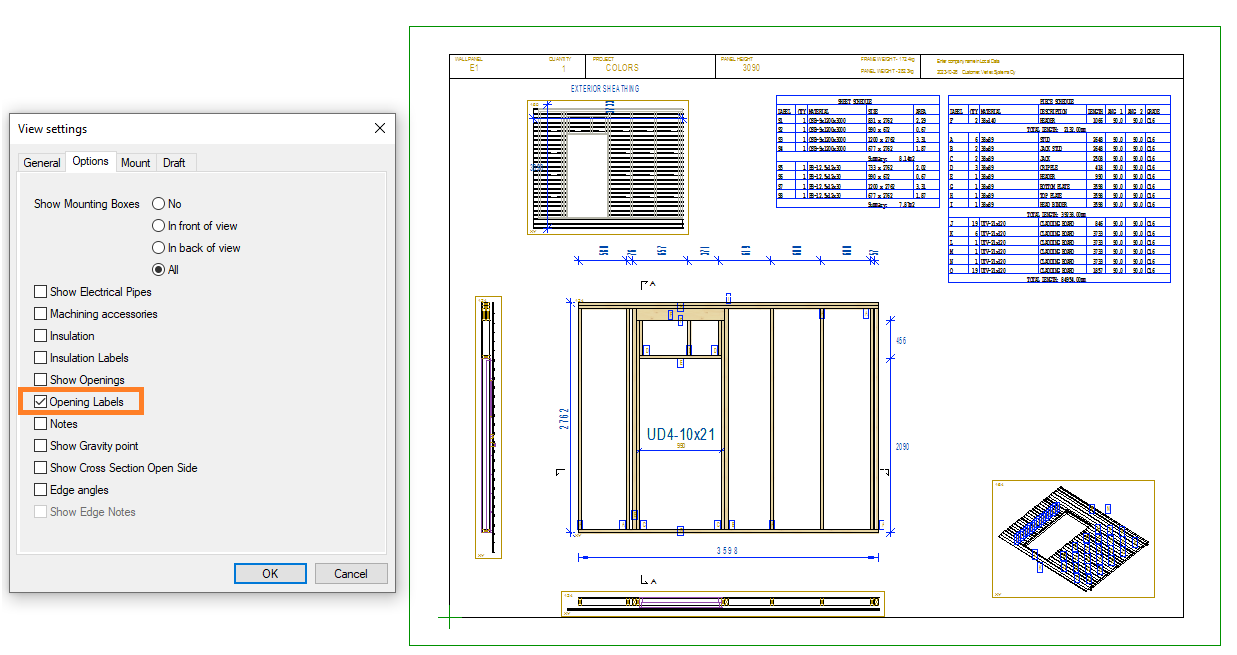

Opening labels




Panel drawings / Dimensions

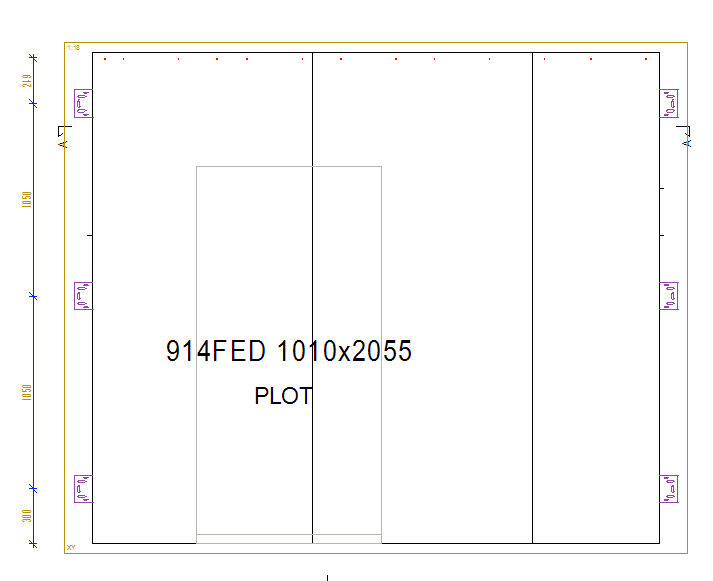

New dimension for position of building components

Buillding Components can now be automatically dimensioned on the panel drawing with new dimension property COMMON_MACRO_POSITION including the hardware type as a filter

Example -MAIN=PIECE|COMMON_MACRO_POSITION|MLIB=MACRO_CUSTOM|MHWR=BRACKET
