Import a Floor Plan in Pdf Format

 This how-to article introduces how a pdf document can be used as a reference drawing in Vertex BD.


Note

PDF files may not be as accurate as CAD file formats. We recommend to use .dwg, .dxf or .dwf file format to import an existing floor plan to Vertex BD.

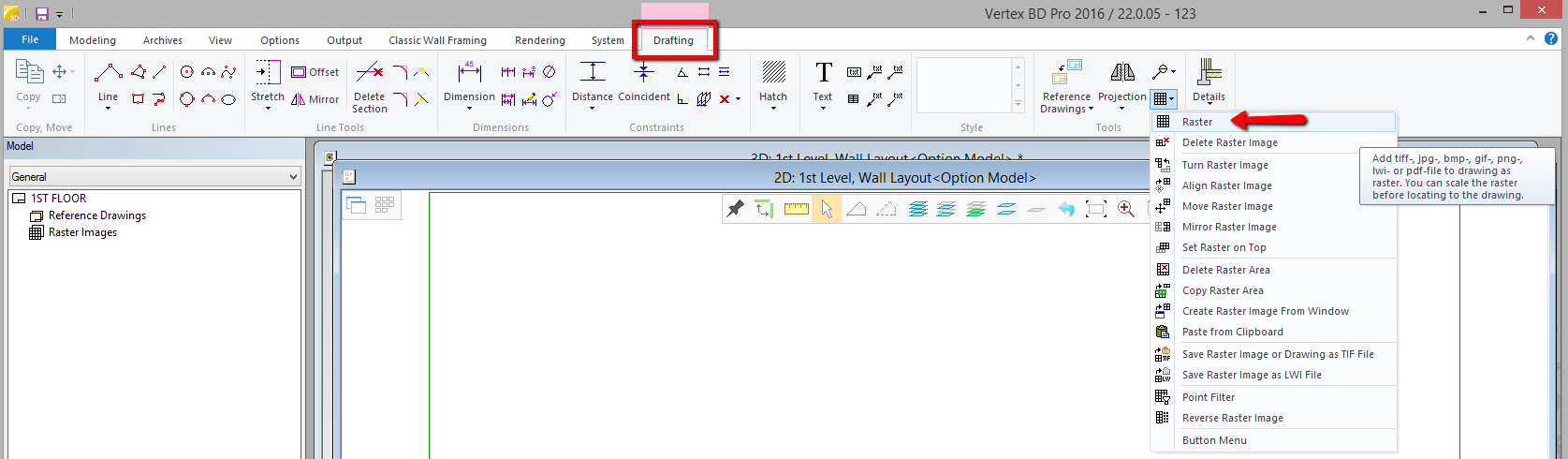

  1. On the Drafting tab, click Raster.
    image2016-5-11 11:0:55.png

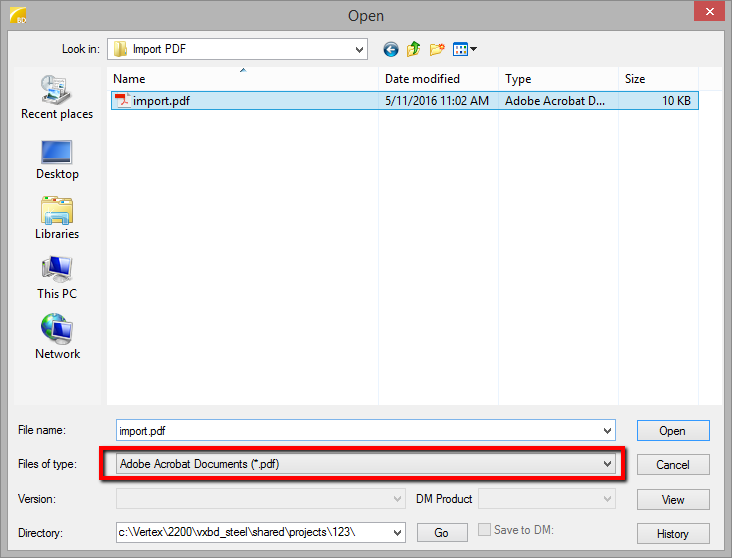

  2. Select the pdf file you would like to import
    image2016-5-11 11:3:42.png

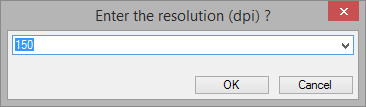

  3. Enter the resolution value. Greater value =  better resolution.
    image2016-5-11 11:4:40.png

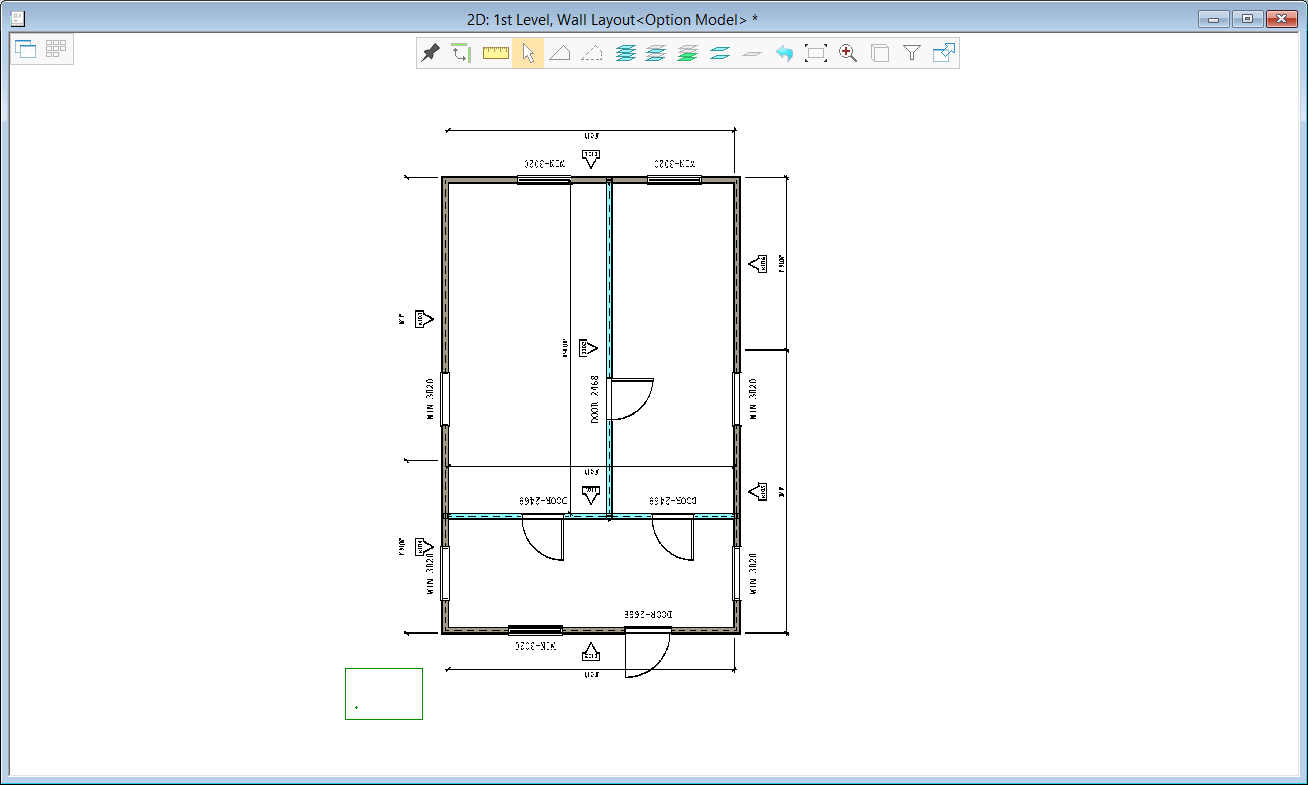

  4. Click a point on the layout to locate the pdf floor plan
    image2016-5-11 11:6:3.png

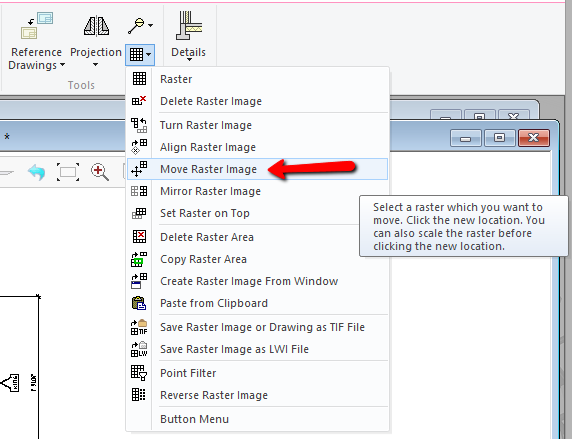

  5. To scale the raster image, click Move Raster Image
    image2016-5-11 11:8:25.png

    and click the imported floor plan.

  6. Right-click and select the K button.

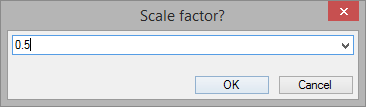

  7. Set Scale factor. For example 0.5 is 50% of the original size.
    image2016-5-11 11:10:49.png

  8. Click a point on the layout to locate the floor plan

  9. Verify dimensions using Verify Dimensions button.
    image2016-5-11 11:18:52.png

  10. Repeat steps 6 - 10 if necessary.
