Create Load Patterns

Load patterns are for capacity calculations. Load patterns are used to simulate different kind of load cases. More information about loads and load combinations can be found in Vertex Engineering Loads article.

Loads for the load pattern can be found in the study tree. Use Ctrl button to select multiple loads.

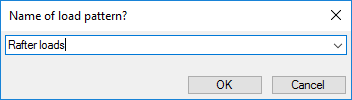

Type a name for the load pattern. Typically different load types are added individually to the model and combined action is solved in load patterns.

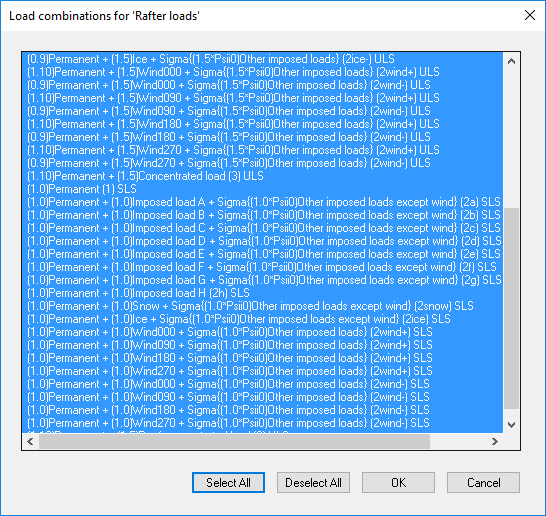

Select load combinations for your load pattern. Select all combinations if you are not sure about the selection in your study case.
