Create a Wall Sheathing Tool Library

Create a wall sheathing tool library of your own and add a new tool to it. You can copy tools from the system library.

Select System | Libraries | Libraries. The library browser opens.

Select the folder System Libraries.

Select the library type Wall Sheathing Tools.

Select the library Wall Sheathing Methods. You will see the tools in the library in the right-side browser pane.

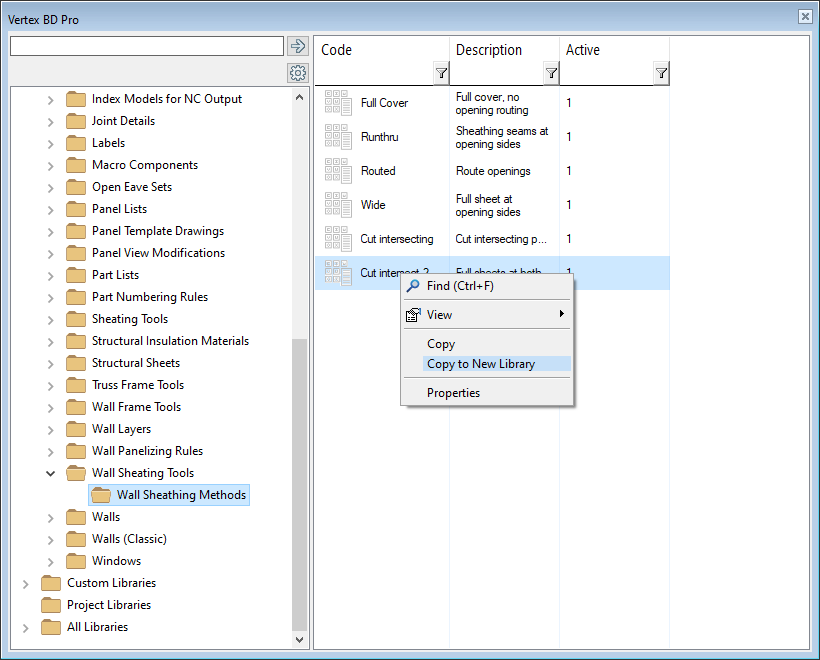

Select one or more tools, and then select Copy to New Library from the right-click menu. Enter a description for your custom library.

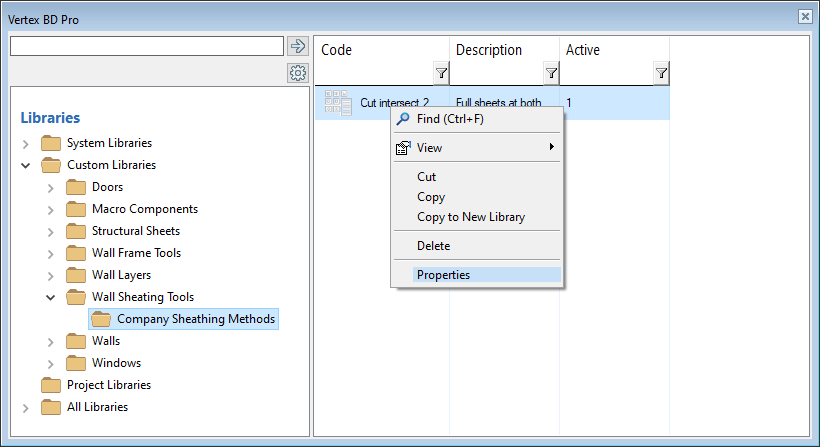

Double-click a tool in the library or select Properties from the right-click menu.

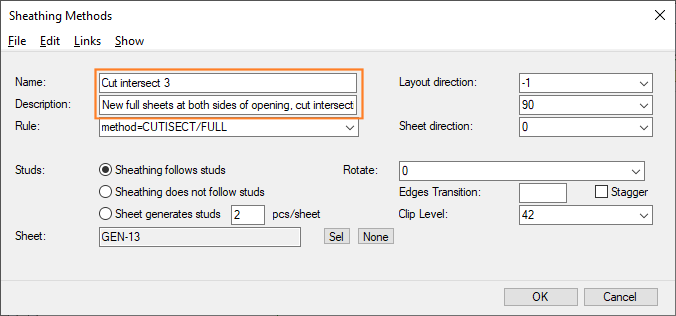

The Sheathing Methods database view opens.

Edit the data to match the tool you need.

The Name and Description fields must be unique.

More detailed information (Framing Tools: Wall Sheathing) can be found in the user manual (see Vertex BD Help).
