Create a Wall Cladding Tool Library

Create a wall cladding tool library of your own and add a new tool to it. You can copy tools from the system library.

Customize the Cladding Tool Folder

Select System | Libraries | Libraries. The library browser opens.

Select the folder System Libraries.

Select the library type Cladding Tools.

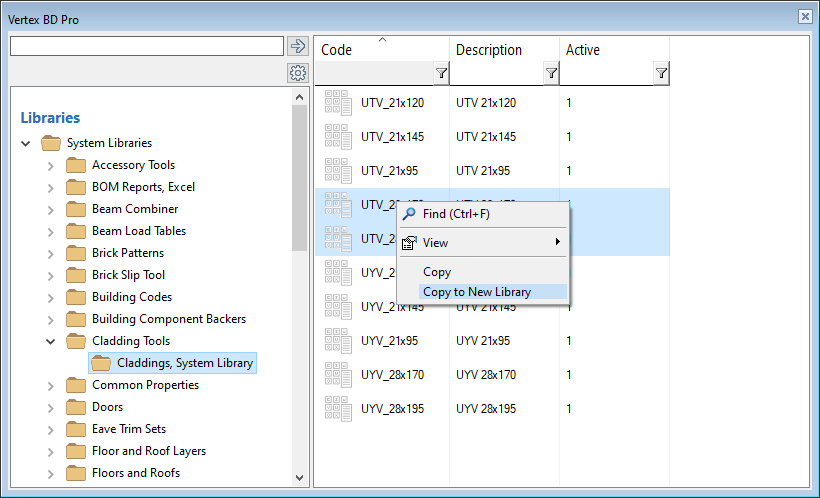

Select the library Claddings, System Library. You will see the tools in the library in the right-side browser pane.

Select one or more tools, and then select Copy to New Library from the right-click menu. Enter a description for your custom library.

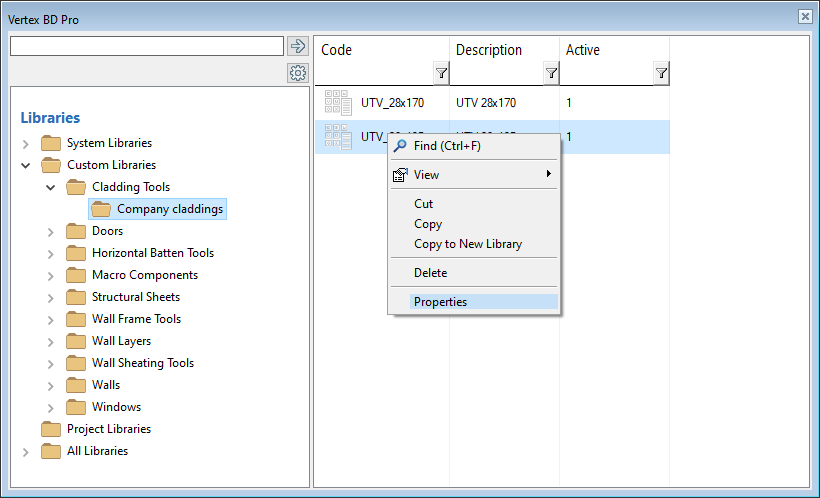

Double-click a tool in the library, or select Properties from the right-click menu.

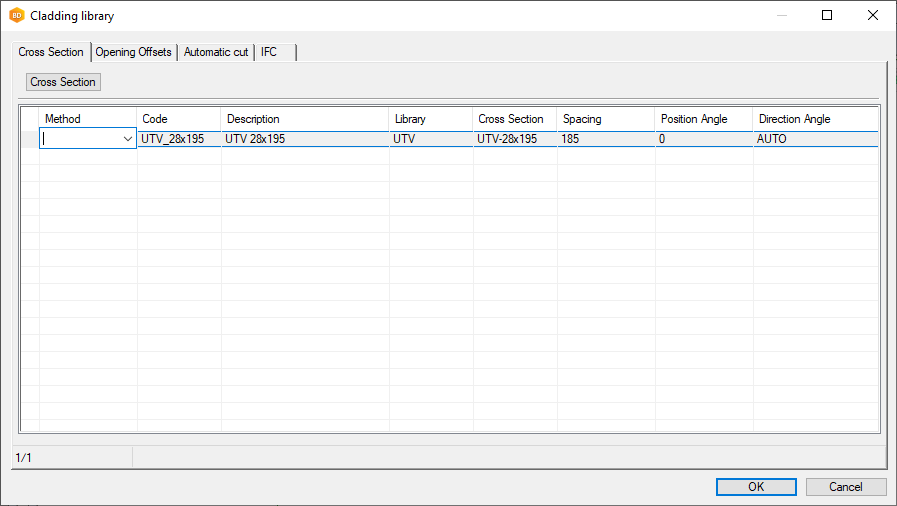

The Cladding Library database view opens.

Edit the data to match the tool you need.

The Description field must be unique.

More detailed information (Framing Tools: Cladding) can be found in the user manual (see Vertex BD Help).
