Activate CLT Libraries

You can select structures from the CLT libraries when you activate the libraries.

Select System | Libraries | Libraries. The library browser opens.

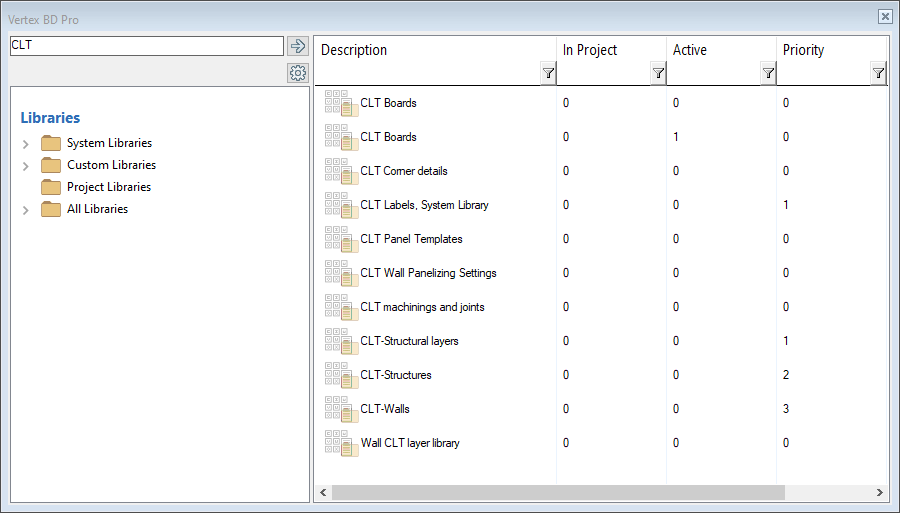

You can search for a library in the library browser by description. Type "CLT" in the search box at the top left corner of your browser, and press Enter. You will see libraries with CLT in their description in the browser pane on the right.

The Active column indicates whether the library is activated or deactivated.

• 1 - The library is active. You can deactivate it.
• 0 - The library is not active. You can activate it.

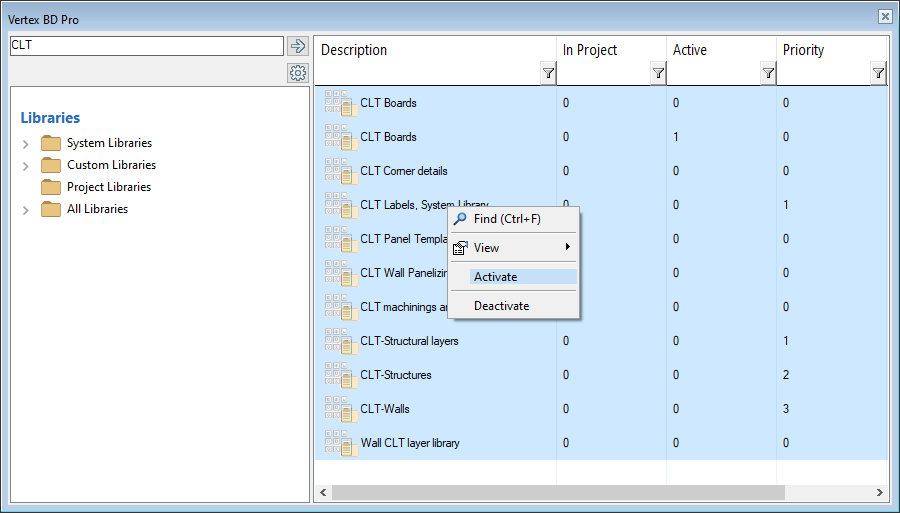

You can activate all libraries at once: select the libraries and then select Activate from the right-click menu.

Now you have the basic CLT-libraries in use.
