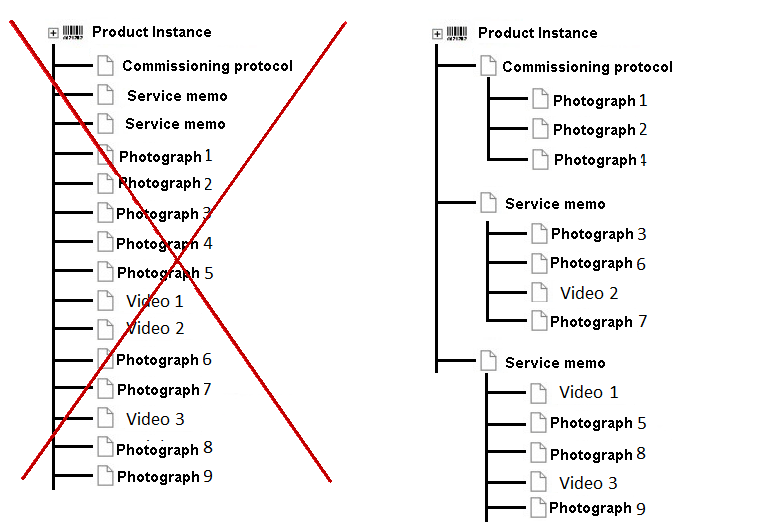

Visual images of the meaning of connections

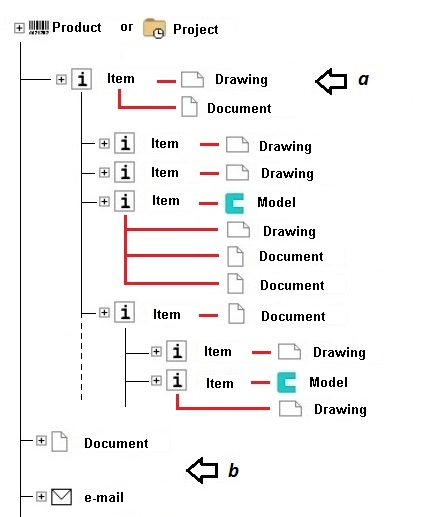

A project in which a device assembly is delivered

Only the main item is linked to the product.

  • By following the structure of the main item, one can access documents related to models, drawings, and individual items.

Monitoring of component suppliers (vendor)

Components are purchased from two different suppliers, A and B (depending on inventory and delivery situation).

  • During use, it becomes apparent that these components have many faults.

  • It is desired to investigate whether there is something common among the faulty components and their suppliers:

It is observed that three equipment breakdowns are all related to components acquired from supplier B.

  • In the image, connections between items, equipment cards, and suppliers are highlighted in red.

  • Connections related to equipment breakdowns are highlighted in blue.
