Update title block

General

With this function, you can update the title blocks of the drawings you have added to the collection basket.

• This function is not typically needed because the title block should update automatically when the corresponding field values are changed in Flow.

  • Refer to: Updating Drawing Title Blocks.

This function is only available if the browser-based drawing approval license option is enabled.

This guide explains updating the title blocks of multiple drawings. You can also update title blocks individually.

Update title block

(1) Add the drawings to be updated to the collection basket.

(2) Select the drawings to be updated.

(3) Select the action Tools > Update Title Blocks.

• Flow asks: "Selected drawings will be added to the title block update queue. Do you want to continue?"

(4) Select OK if you want to update the title blocks.

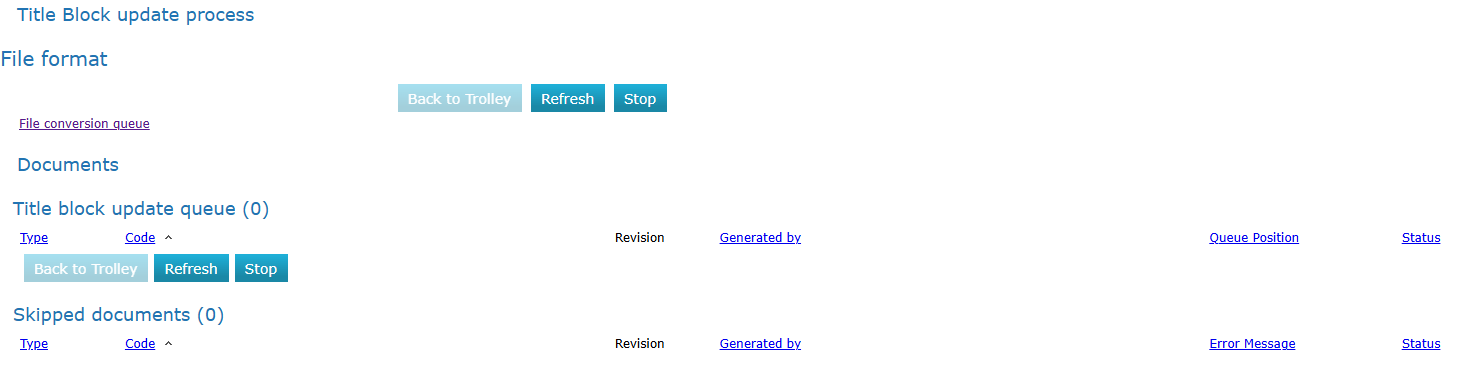

• Flow opens a dialog box Title Block Update.

If needed, you can:

• Refresh the view (although it also updates automatically). Stop the drawings' update.

• Return to the collection basket after the title blocks have been updated or you have stopped the update.

You can see the update status:

• COMPLETED = Drawing update is done.

• ON QUEUE = Drawing is waiting for update.

• CANCELLED = Drawing update is canceled.

The program also informs about objects that were skipped (Status = REMOVED). The reason may be:

• Object is not of type Drawing.
