Pattern design tool 2022


Pattern Design Tool

Features

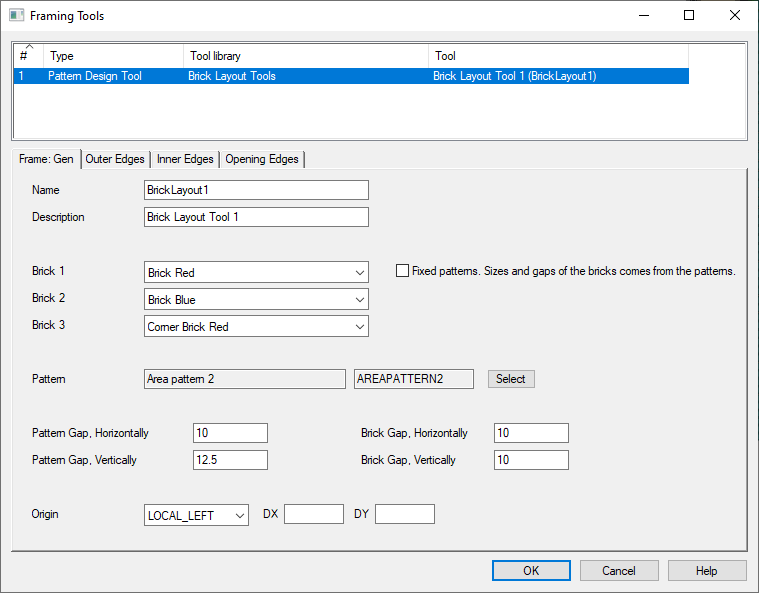

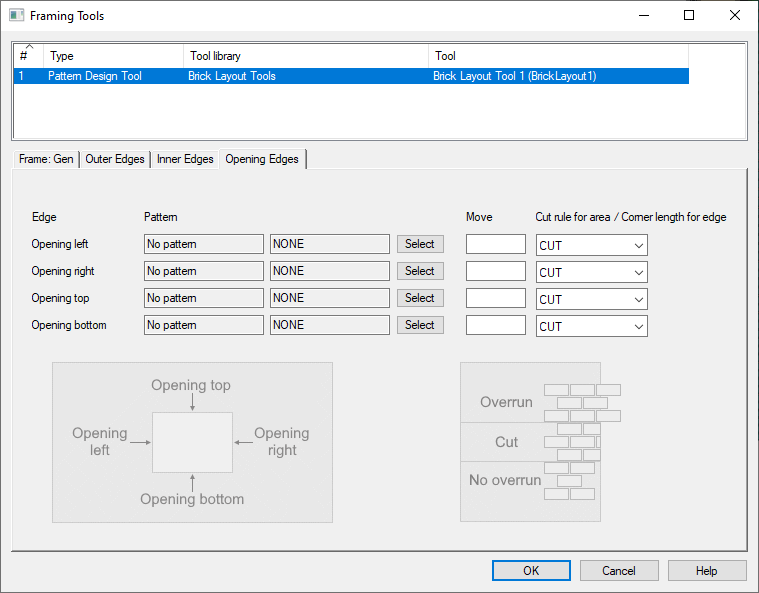

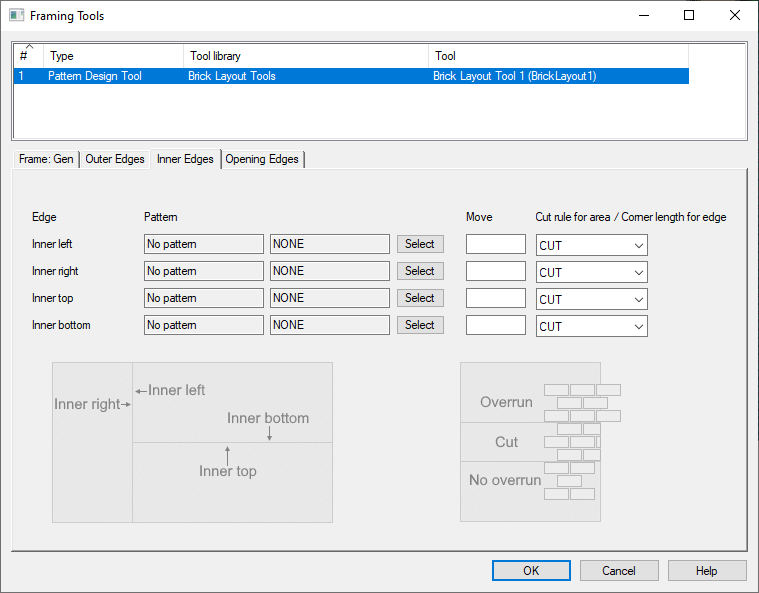

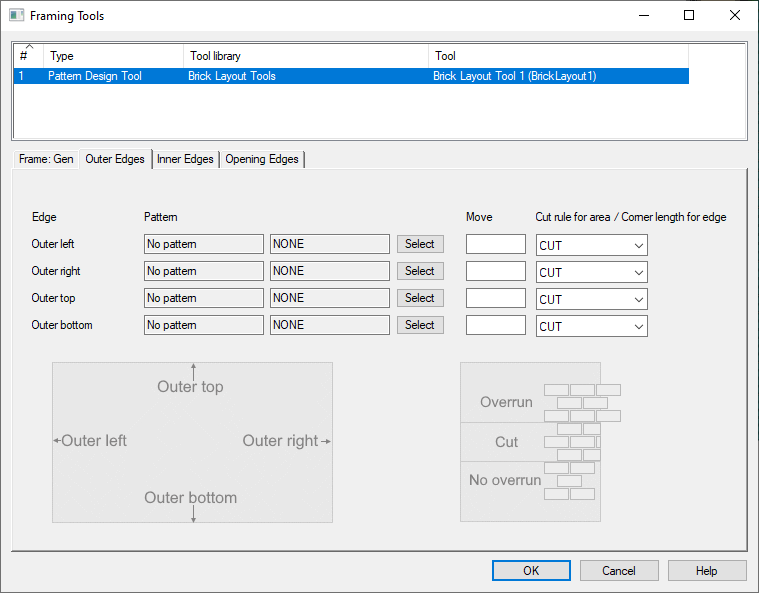

  • New framing tool for bricks and tiles




  • You can handle different bricks by different patterns

    • Basic environment you have:

      • 16 different basic bricks

      • 3 Area patterns

      • 4 Edge patterns




  • Calculate how many bricks are needed

  • Calculate brick waste

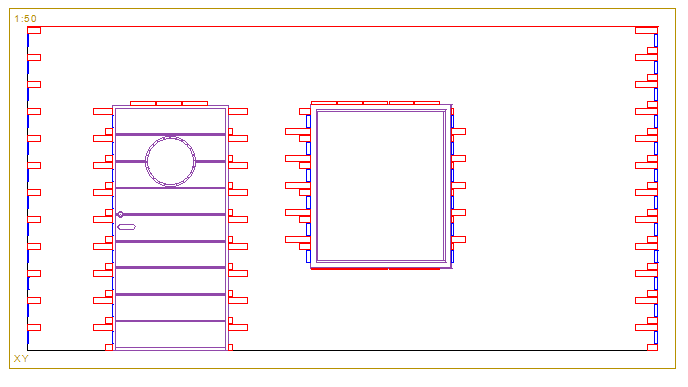

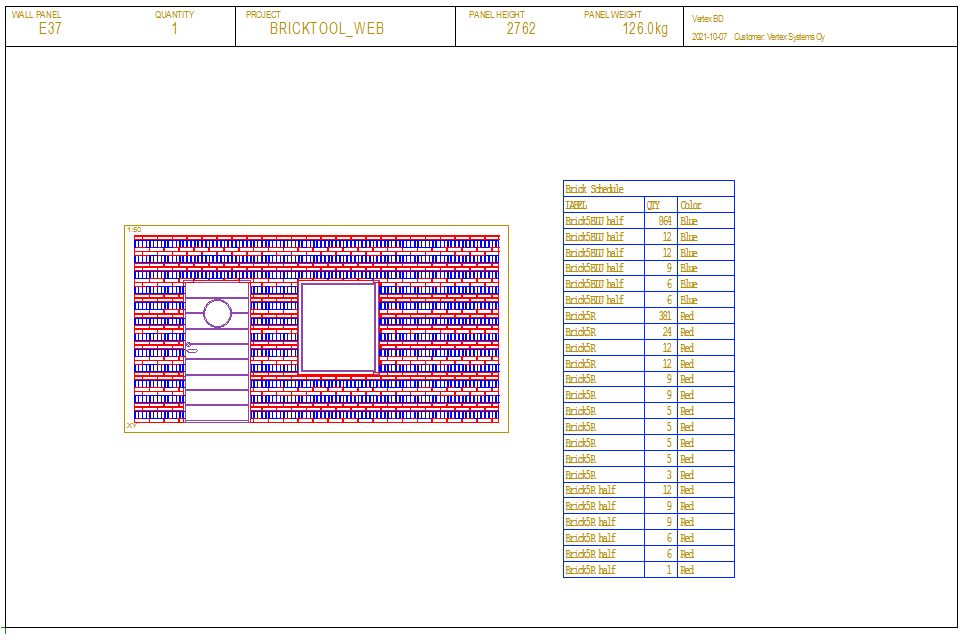

  • Automatically create panel drawings with brick patterns

  • Marking features for non-standard bricks

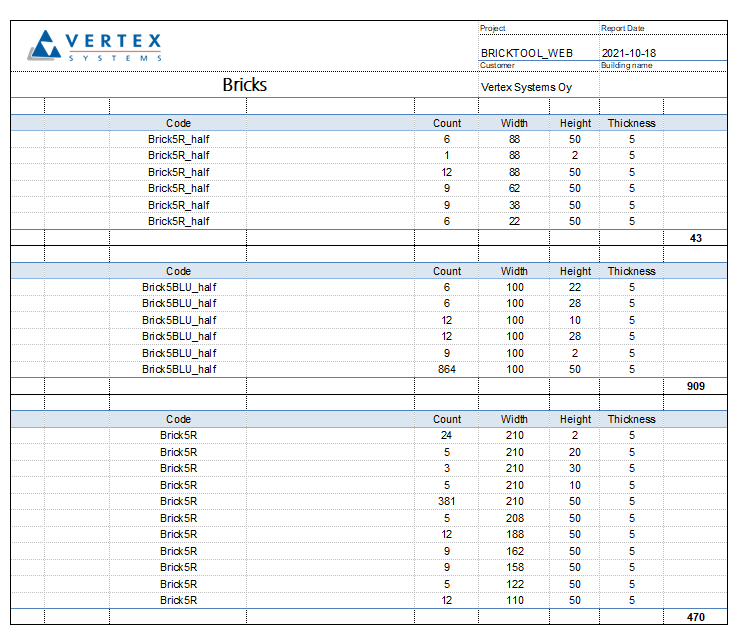

Model view and Panel drawings

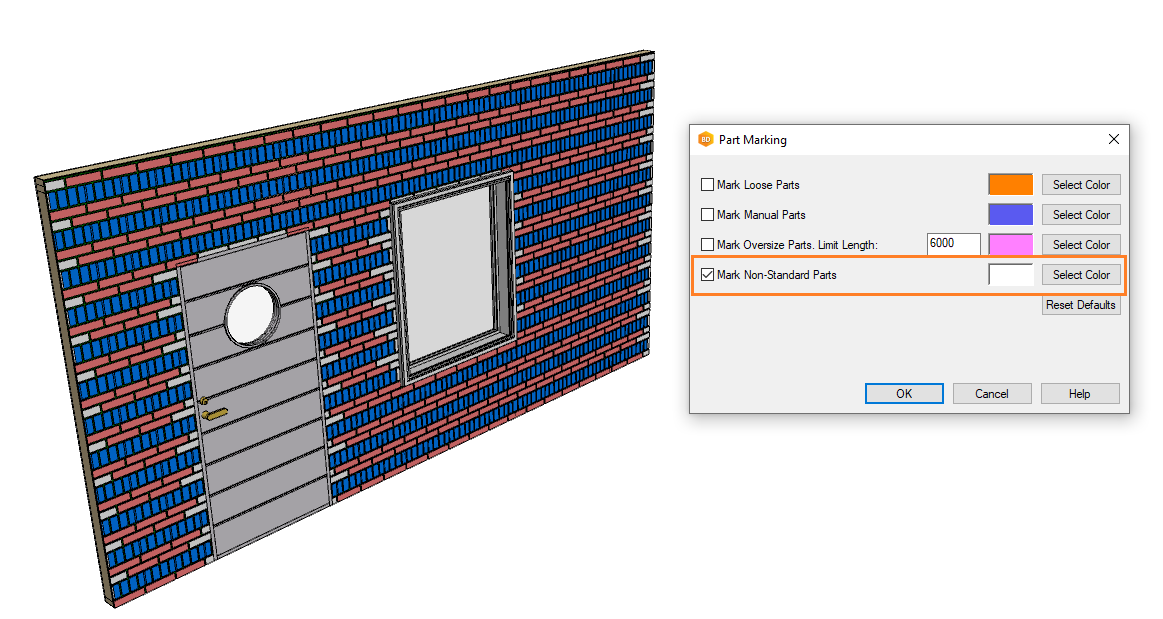

Marking of Non-standard bricks in 3d model view with selected colour (example: White)


Bricks by wanted colour view


Bricks by Non-standard view only





Possibilities

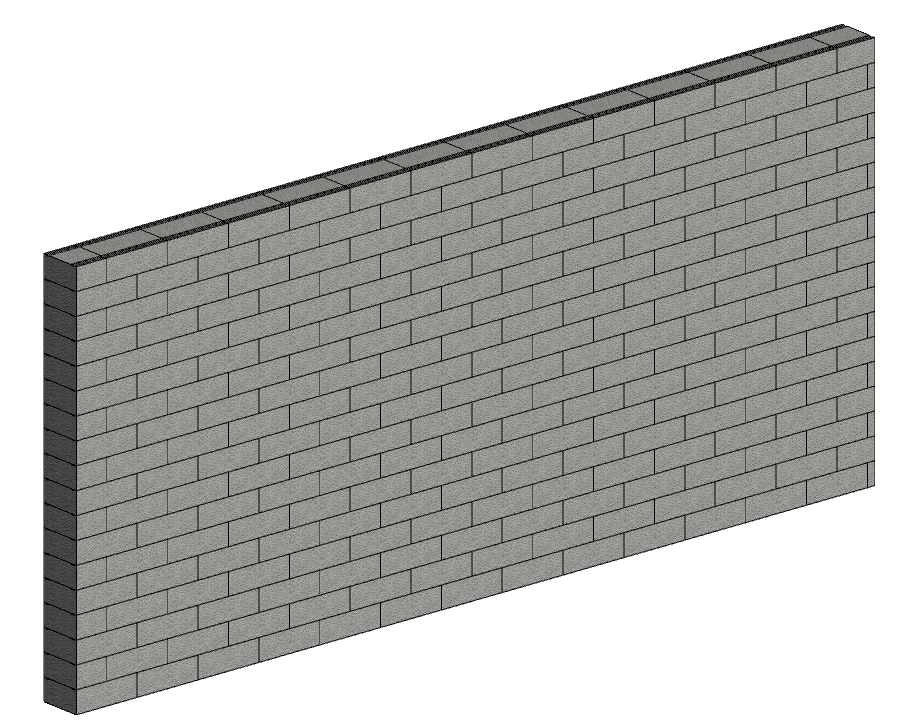

Blocks

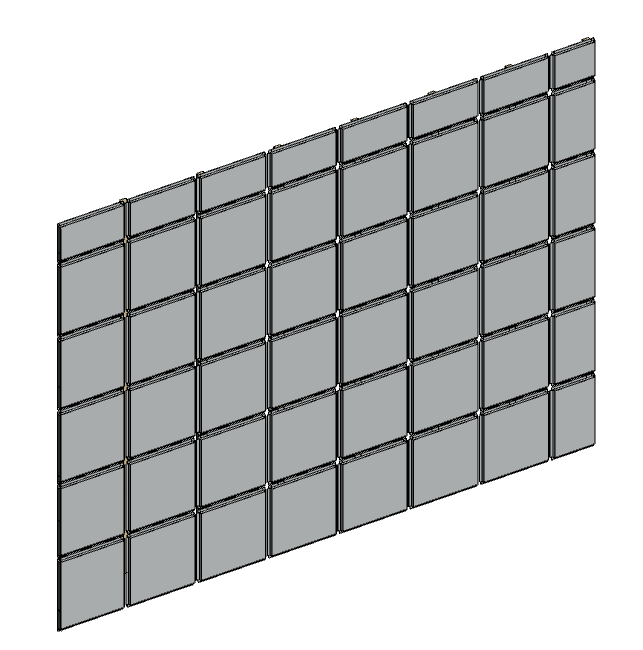

Surface panels


Internal wall blocks + tiles
