Light Gauge steel 2022

Modelling

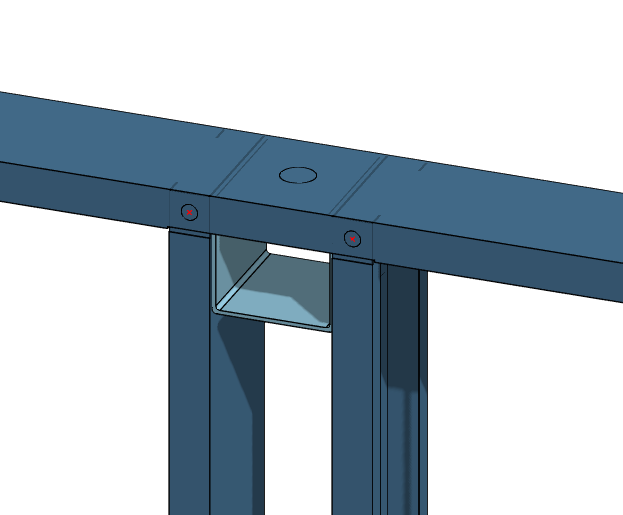

Lifting points with a Rectangular Hollow Section

Easily turn a stud into a lifting point for a module by clicking it in the layout plan or 3d model. The original stud is deleted and replaced with a rectangular hollow section with new studs on each side. A service hole is added to the top track and a hollow section. The tool can be customized to add additional holes as required

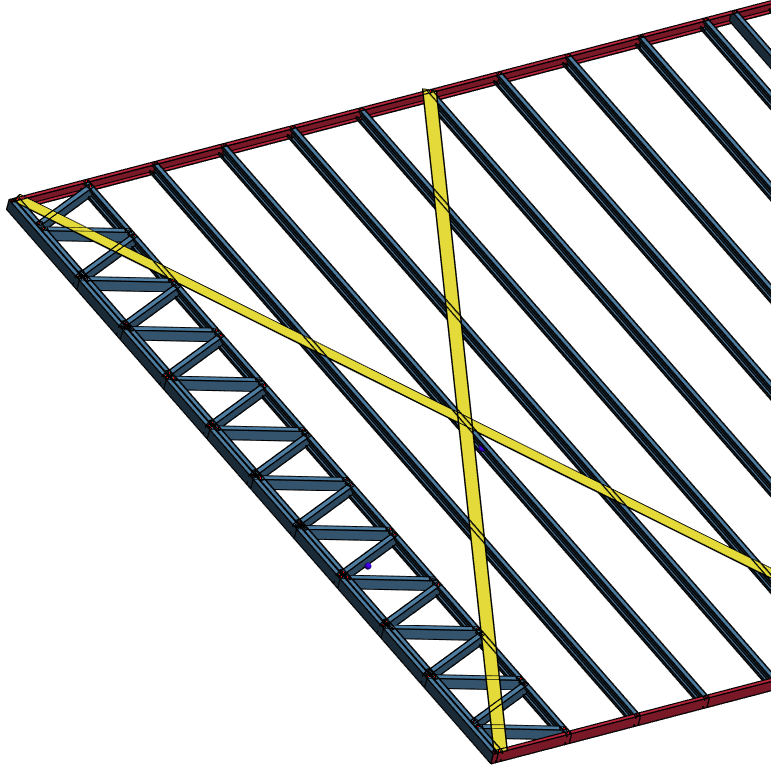

Wall Panel bracing can now be used with floors, ceilings and roofs

The old red bracing tools for floors has gone, more wall panel bracing can be used with floor and roof panels including single diagonal bracing, variable bracing and flat strip bracing
