Layer List of Panel Structure to Panel Drawing




It is now possible to list the layers of a structure to the panel drawing. The layer list contains all existing layers in the order in which they are modeled. The list is updated when the panel drawing is updated.

How to add layer list to panel drawing

  1. Select from context sensitive popup menu Add View to Drawing:

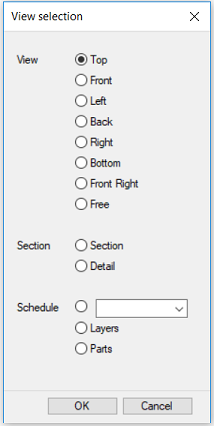

  2. Select from view selection Schedule and Layers

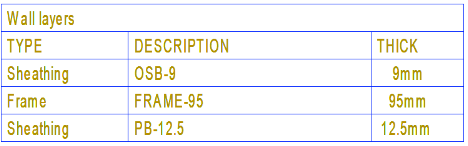

  3. Add list to panel drawing
