How to turn Layers, ON/OFF in layout Sheet

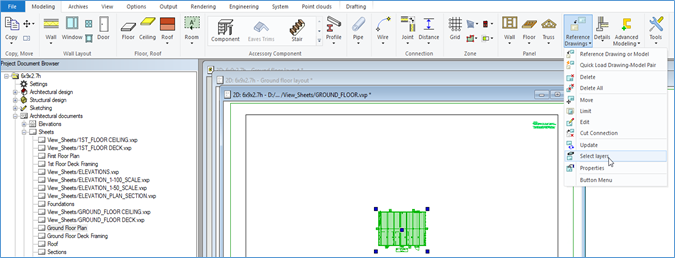

  • Now we have the drawing on the sheet. Just click on the drawing to select, go to 'Modeling' tab → 'Reference Drawings' → 'Select Layers'

OR

In 'Modeling' tab → 'Reference Drawings' click on'Select Layers' and select the drawing.

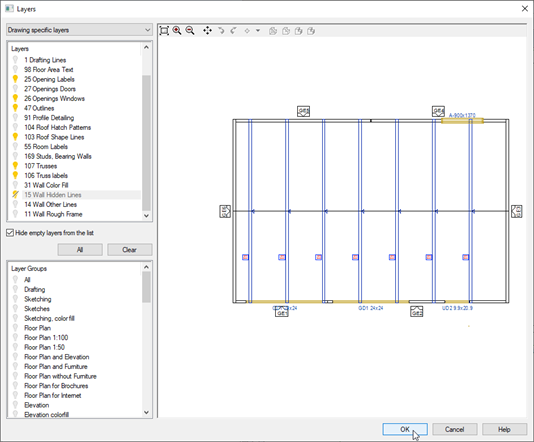

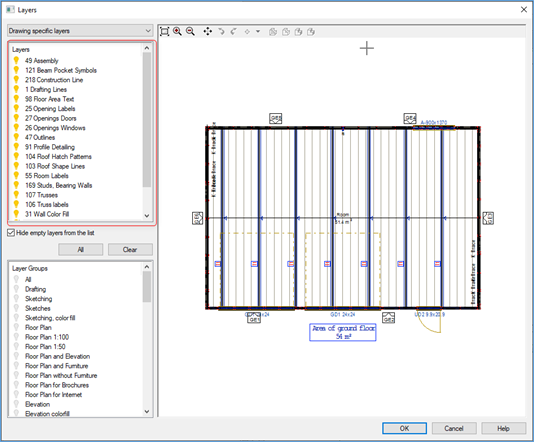

  • In the layers window you can turn layers on and off as per the requirements.
  • Advantage of the turning layers ON / OFF  this way is that any section, elevation and other drawings you bring on to the same sheet, can have its layers visible individually.




  • If you go back to your model and add dimensions (or any changes), you must save the model, only then, you will be able to update the layout.

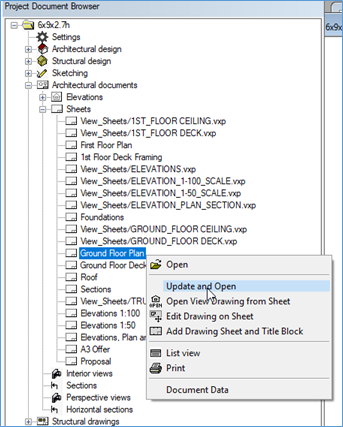

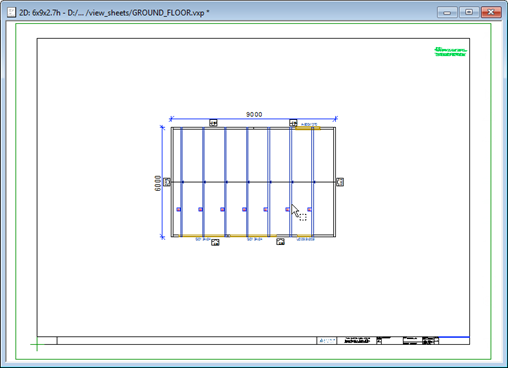

  • Now you can see that wall plan have been updated and the dimensions have appeared on it.
