How to add Title block on the sheet
- Sheets are generally a collection of drawings with possibly added a custom elements on it Or you can create new customer specific reference drawing with their logo on it.

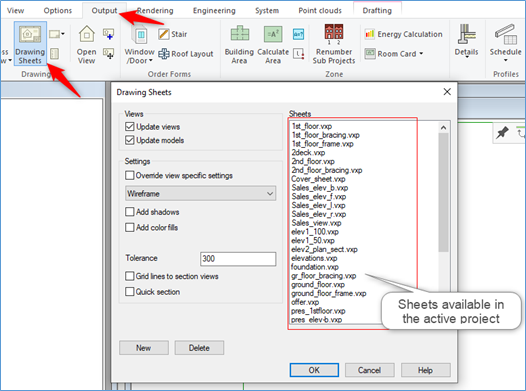

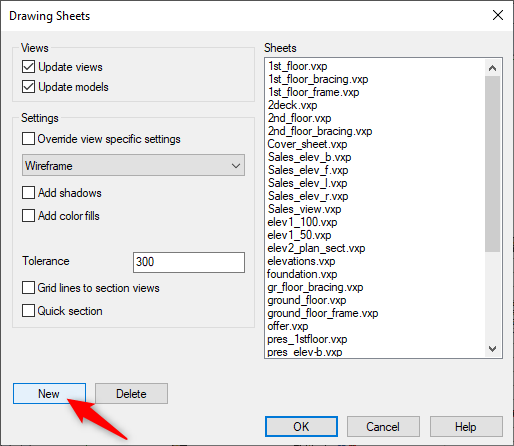

- Go to ‘Output Tab’ → ‘Drawing sheets’

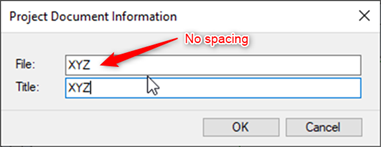

- Add new sheet file name (no Spacing)
- Add Sheet Title name (Alpha-Numeric and spacing allowed) will be displayed on the project document browser
- Click on OK
- Note: There is another easy way to create new sheet.

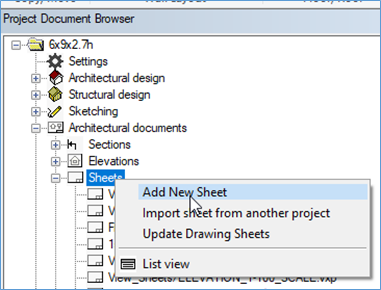

- In the 'Project Document Browser' hover over the title Sheets, right click and from the contextual menu select 'Add New Sheet'

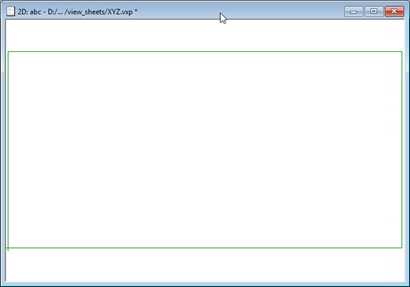

- You will get an empty sheet. Now we need to add a drawings on it

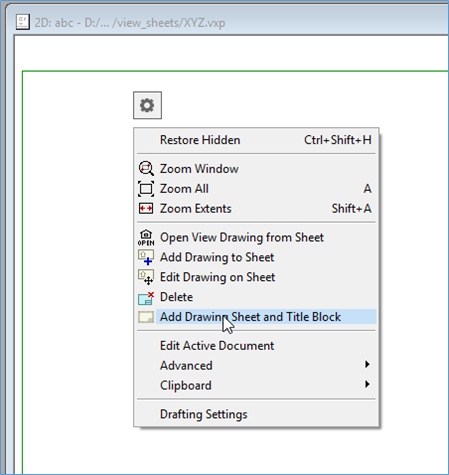

- Right Click and from the contextual menu click on “Add Drawing sheet and Title Block”

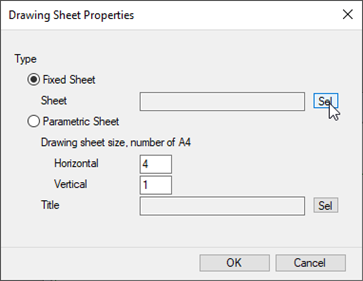

- In this dialog box click on 'Sel'

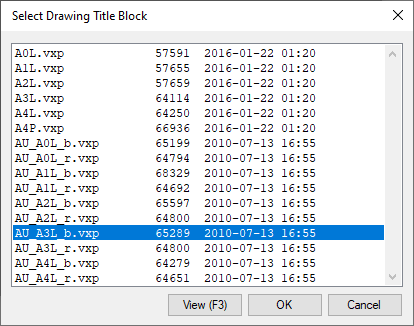

- Select the 'Title Block' that you think is suitable by double clicking on it.
- Click on OK

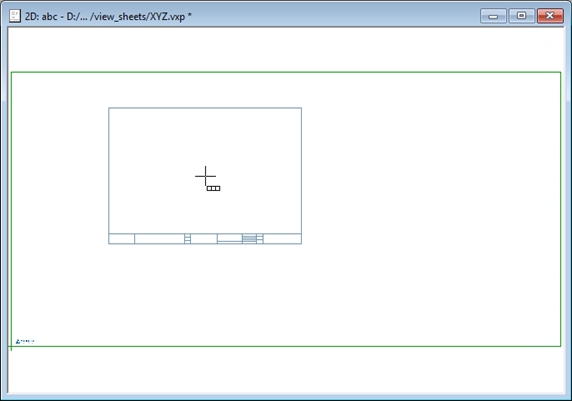

- Now you will notice that the cursor changes to represent title block.

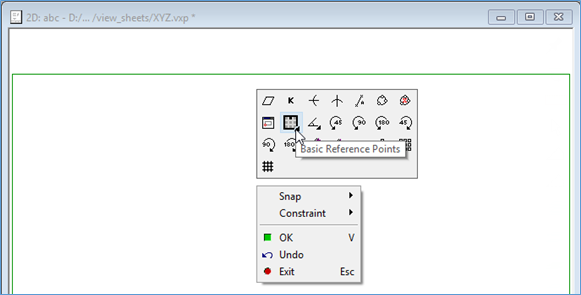

- In order to select the corner reference point of title block, right click and from the contextual menu, click on the basic reference point ( as shown )

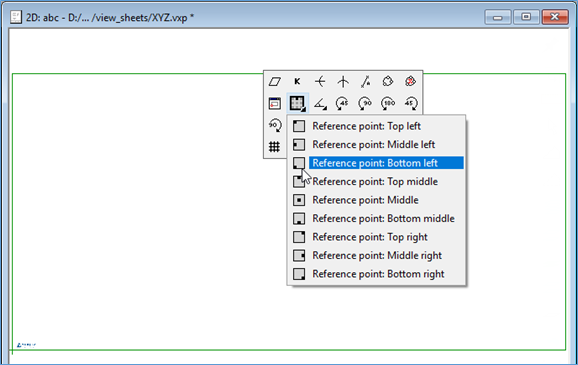

Select the reference point from the drop-down menu.
- Note: Scale can be checked also by clicking on K
- Place the Title block on the sheet ( Title block will automatically zoom out its extents )

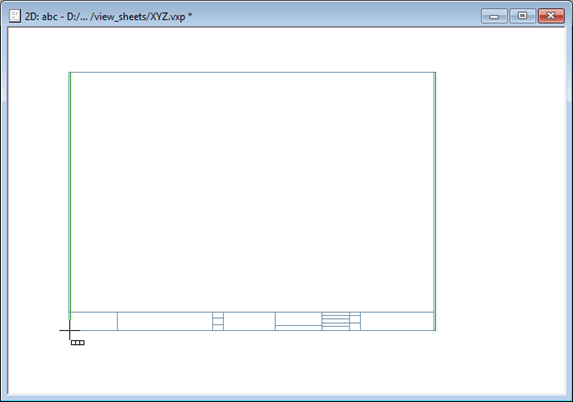

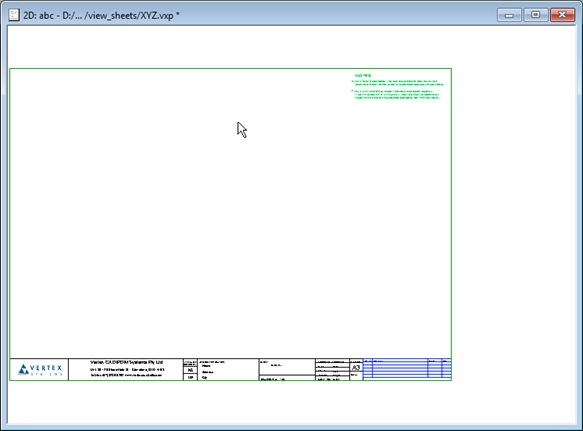

- Now you should have a view that looks something like this.
- Modify title block as per requirement ( I.e. Add a Custom Logo, Address etc. )
