How to add section view to Layout

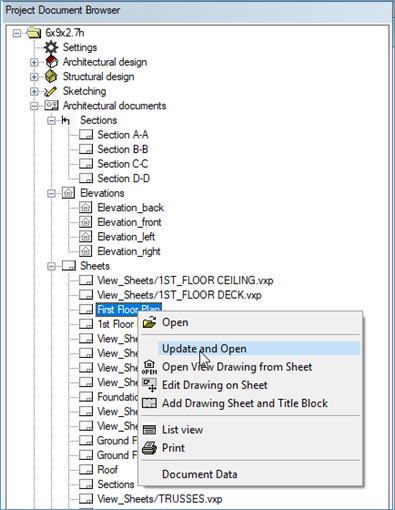

  • To add framing sections on to the layout. Open up the layout by double clicking on it, in Project document browser

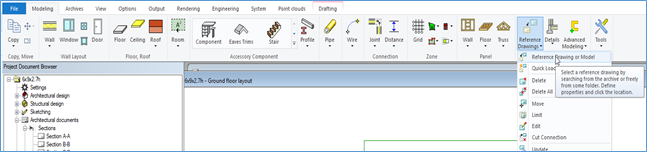

  • Go to Modelling tab → Reference Drawings → Reference Drawing or Model

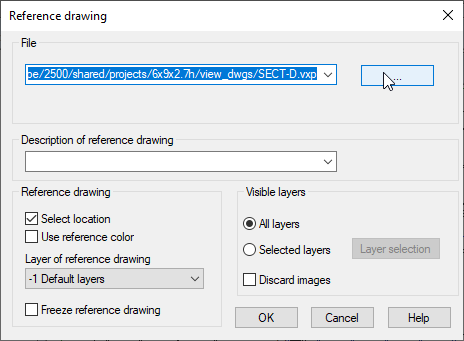

  • Click on ... to select the section drawing that you want to add to layout sheet

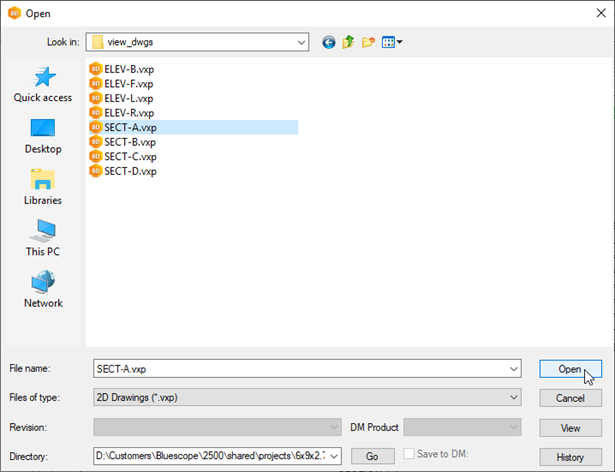

  • Generally you can find section drawings under Project \ project name \ view_dwgs   ( You can add one section drawing at a time to layout )

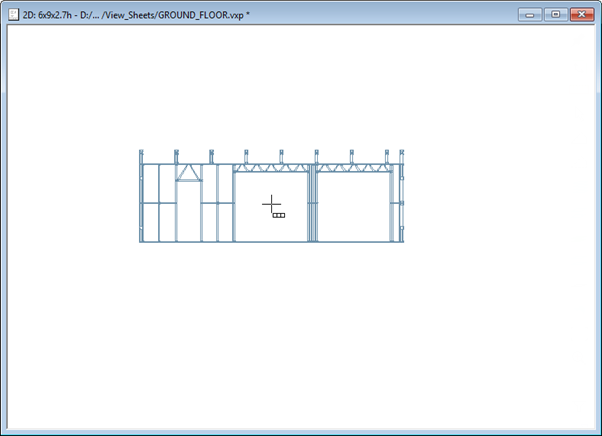

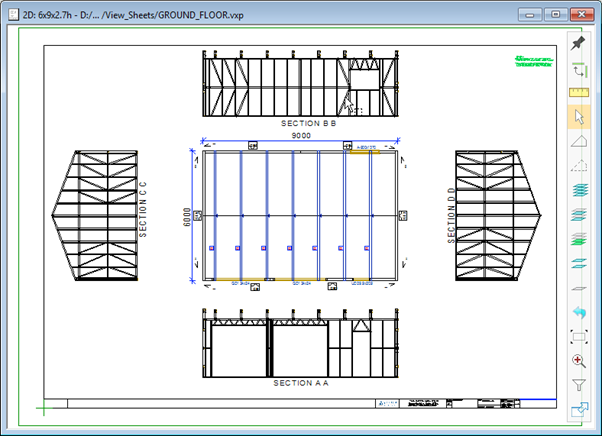

  • You may need to change the scale. Click on K and change the scale ( you can also rotate and mirror as well by going through rest of the options ) change the scale to suit and position the section drawing
