How to add drawings on the sheet

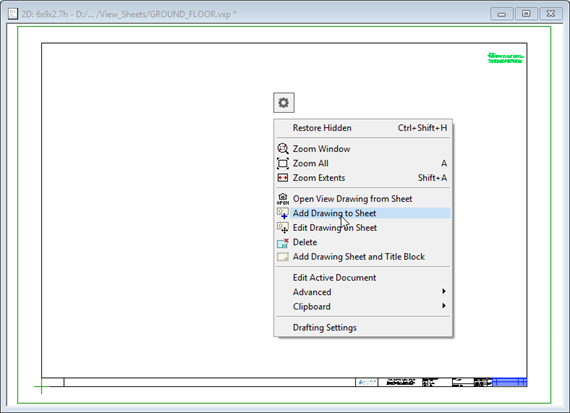

  • Now that you already have created title block and added on to the empty sheet. It is time to add drawings on it.  Right click on the sheet and form the contextual menu select 'Add Drawing to Sheet'
