Hot roll detailing 2022

Modelling

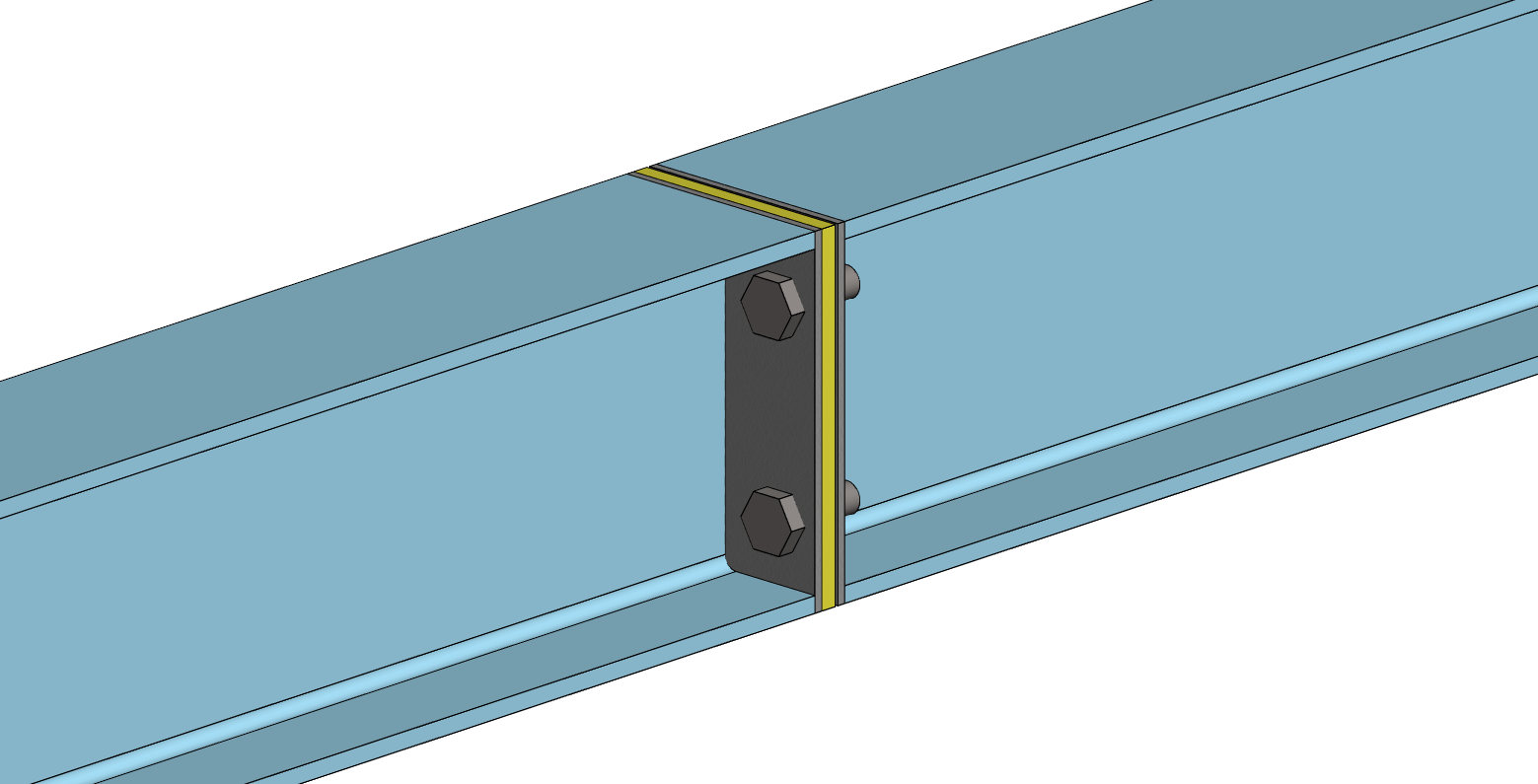

I Beam splice end plate connections now support thermal breaks and tolerances

Beam to beam and column to column splice connections, (0701) and (0705) now support thermal breaks and end tolerance in line with of the face plate connections. Saving connection parameter sets has also been added.

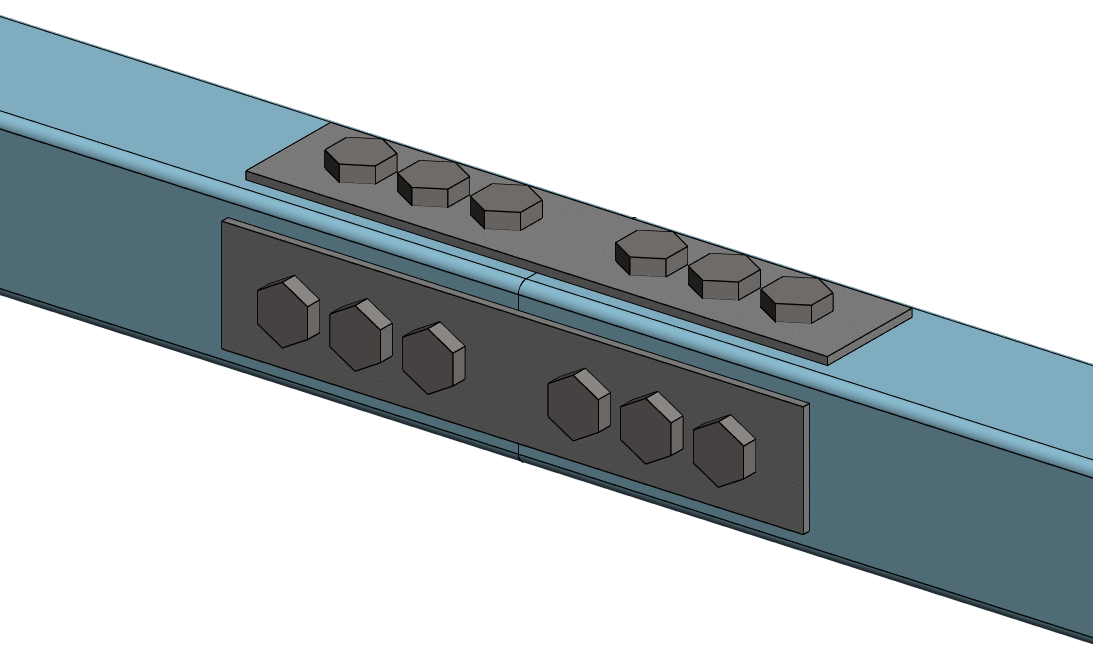

Hollow beams splice connections now support plates on the out side

SHS and RHS splice connections now support having bridging plates on the outside of the plate. Both regular and countersunk bolts are supported

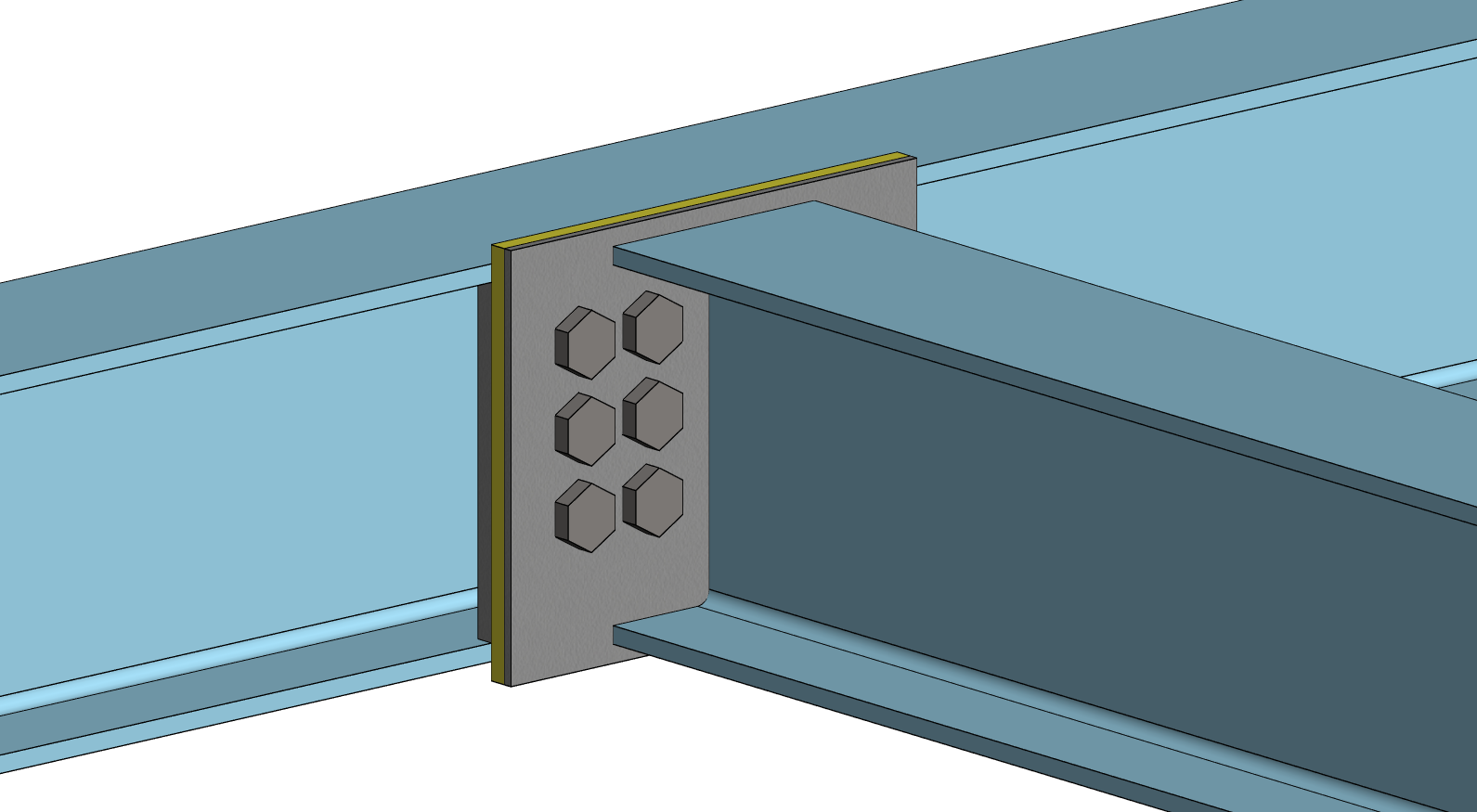

Beam to Beam by face plate now supports tolerances for welding

Beam to Beam by face plate connection (0604) now supports tolerances above and below the incoming beam to allow for welding

Drawings

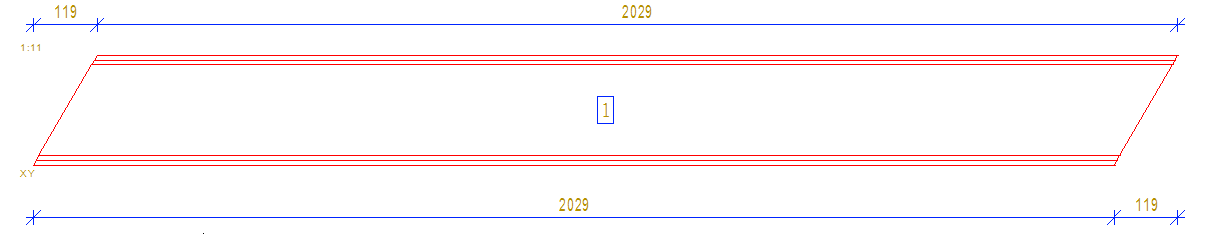

End Angles added to Beam drawing

If the beam or column is cut the cutting point is shown on the beam part drawing

Cut Points added to Beam drawings

If the beam or column is cut the cutting angle is shown on the beam part drawing

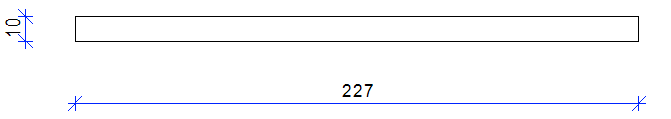

Side view added to plate drawings

Plate part drawings from Output → profiles → hot roll plates now have an extra view showing the thickness of the plate

×
