Export Truss Envelopes to Truss D&E

Standard truss shapes generated in Vertex BD can be exported to Truss D&E (JFBA, Inc.) for truss member design.

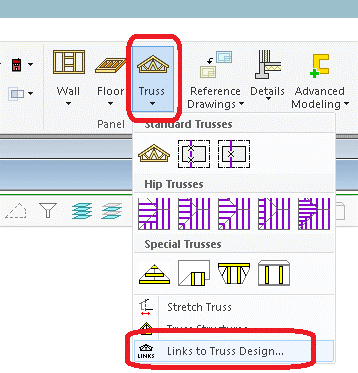

From the Modeling tab, go to Truss -> Links to Truss Design

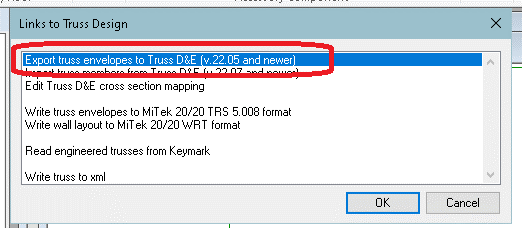

Then select "Export Truss Envelopes to Truss D&E"

Right-click on the project name in the Project Document Browser, then select Open Project Folder.

The files will be saved into the Truss_Picts folder inside the project folder.
