Building Management and Drawings 2022

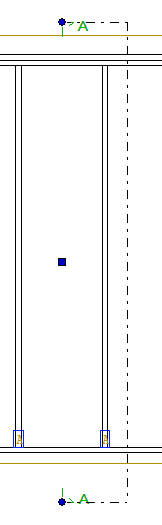

You can now edit the depth of a section using the section symbol

You can easily edit the geometry visible in the section drawing using the depth handle of the cut symbol. Select the handle and pull it to the desired location and update the section drawing. In the panel drawing, the Section is updated automatically

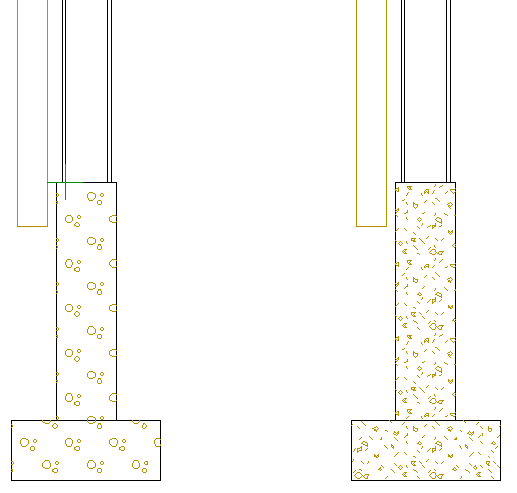

You can set a hatch for the foundation in the cross-section

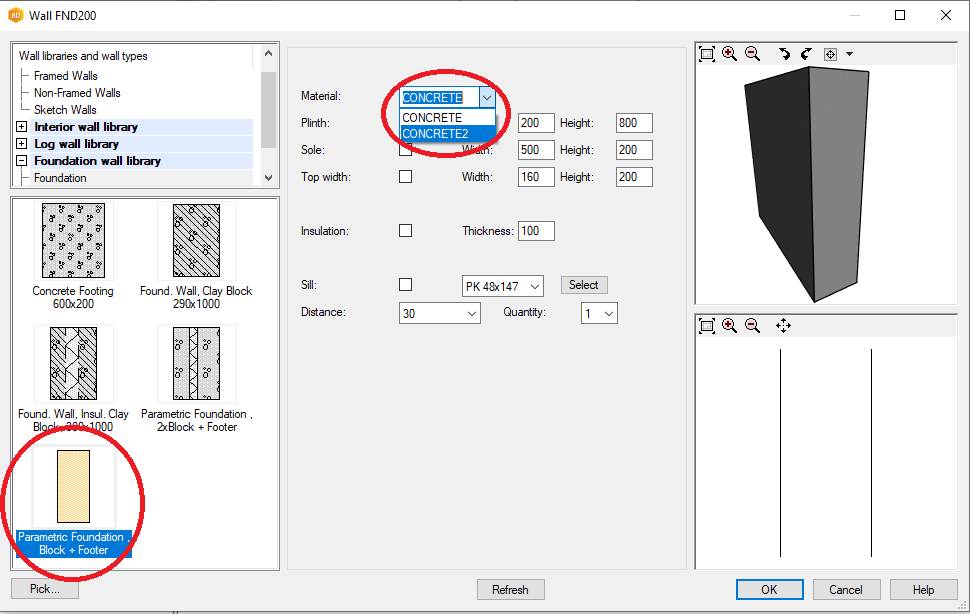

Hatches for parametric foundations now automatically appear in the cross-section drawings. You can choose between 2 concrete styles

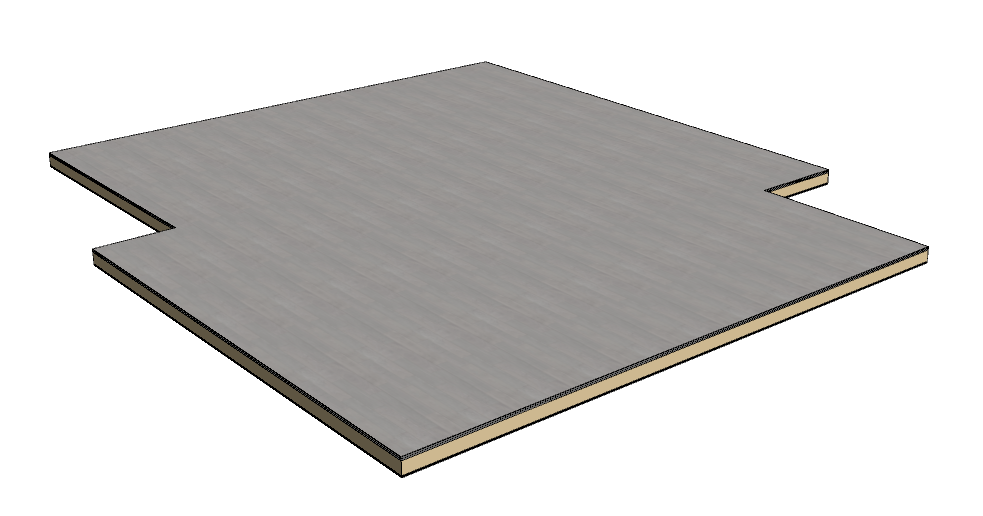

Horizontal structures are added expanded as default

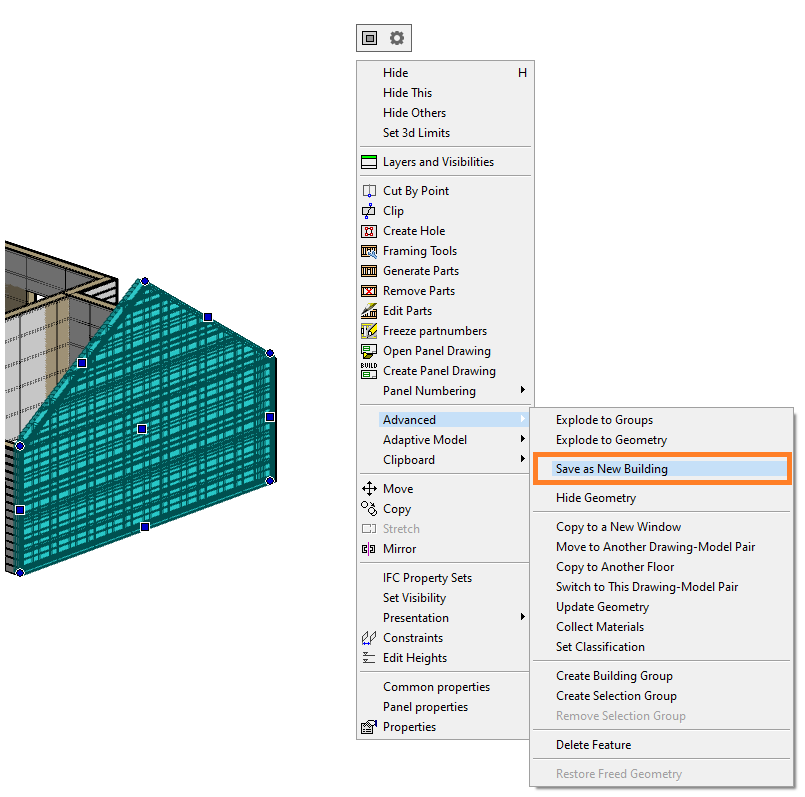

Now you can make easily a new building from selected objects

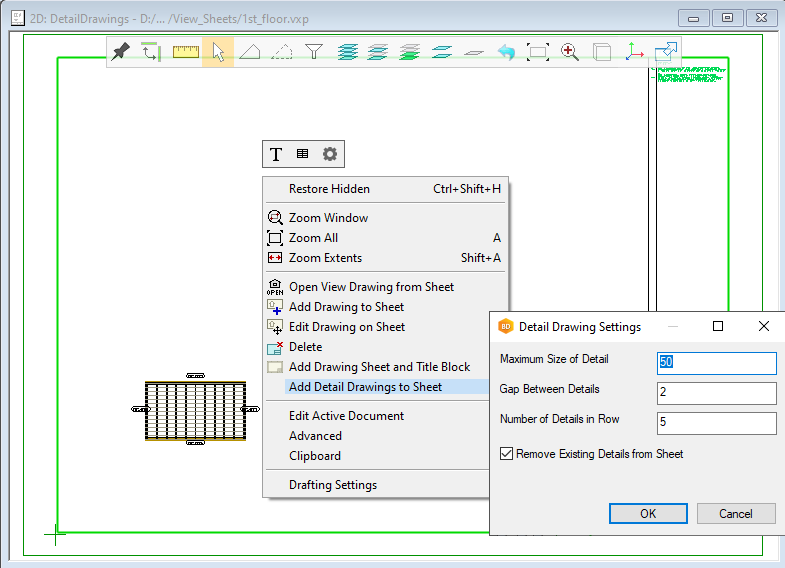

  Add project details to a drawing sheet

You can now easily add the details used in the reference drawing to the drawing sheets. The function can be found in the free space on the drawing sheet in the context-sensitive menu. This feature allows you to get details on a sheet quickly. The function does routine work for you.

Added new keys to vxsettings for setting sill line offsets for exterior and interior walls

Keys and default values in metric env:
draw_ext_wall_sill_lines = 1 30 0
draw_int_wall_sill_lines= 0 0 0
1. value = 1 or 0, draw lines or not
2. value = offset in exterior side, this is read as string and value is get with StrBuild
3. value = offset in interior side, this is read as string and value is get with StrBuild

Defaults in imperial env:
draw_ext_wall_sill_lines = 1 0.75 0.75
draw_int_wall_sill_lines= 0 0 0

If old key, draw_sill_lines = 0, these new values are not used (except if macro has SILL_LINES=1).

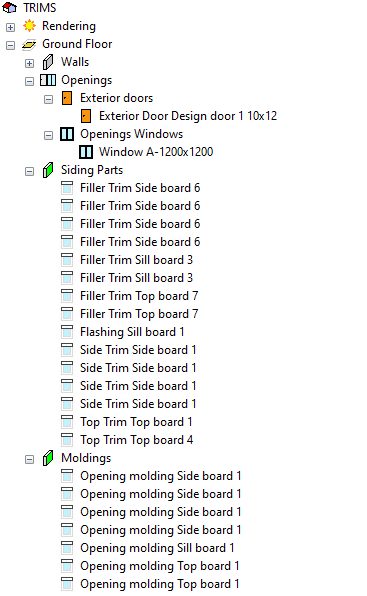

The internal trim/molding parts of the openings now belong to the group of moldings

The trim parts inside the house belong to the Molding group. The trim parts inside the house belong to the new Molding group. New part types are now made for types as follows:

• Main types:

  • roof molding

  • floor molding


  • opening molding

• Sub types of the opening molding:

  • Filling trim

  • Window bench

The object type is used to organize the object tree and, for example, in Excel reports. You might need to make specific report for interior moldings or use the standard one.

A new type flashing, for exterior sheet metal moldings

Exterior sheet metal parts used in windows, doors and between claddings are now of the flashing type. They are sub type of the existing opening trim.

The object type is used to organize the object tree and, for example, in Excel reports. So this change might affect the material reports. Exterior trim reports should remain the same. Interior trim parts are now moldings. They might not appear any more in the exterior trim report (the earlier type was the same).

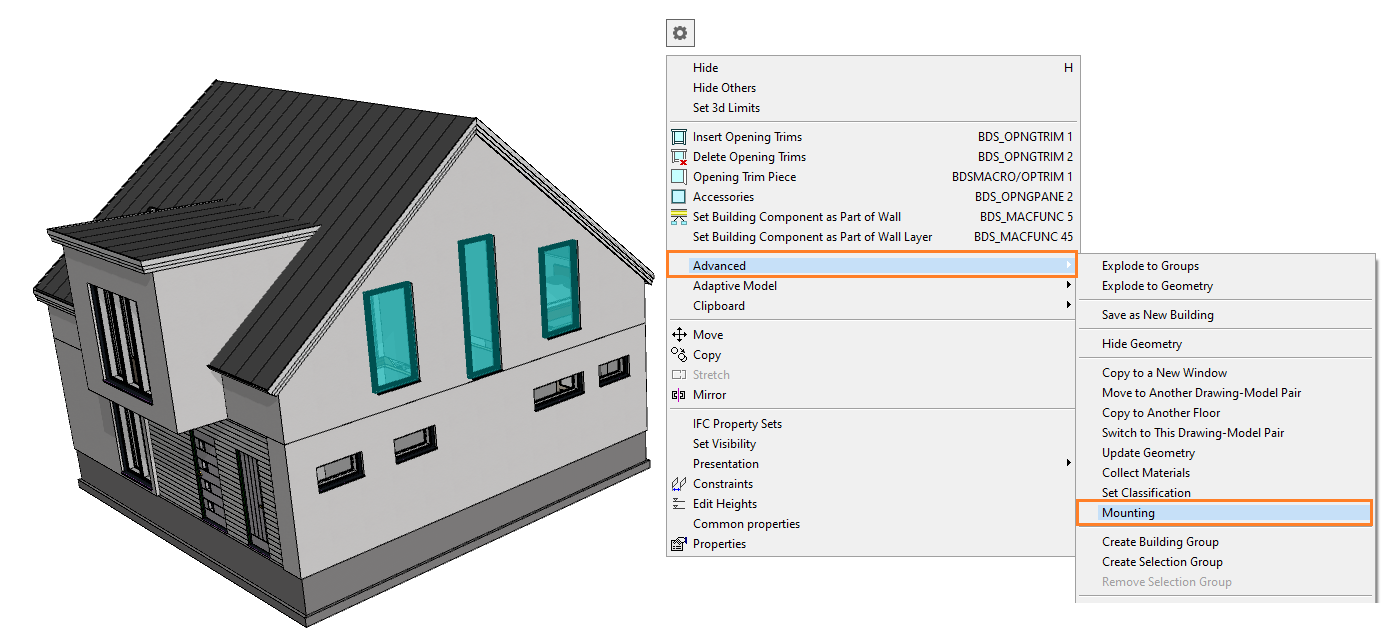

Mounting data (Loose/Manual) for macros

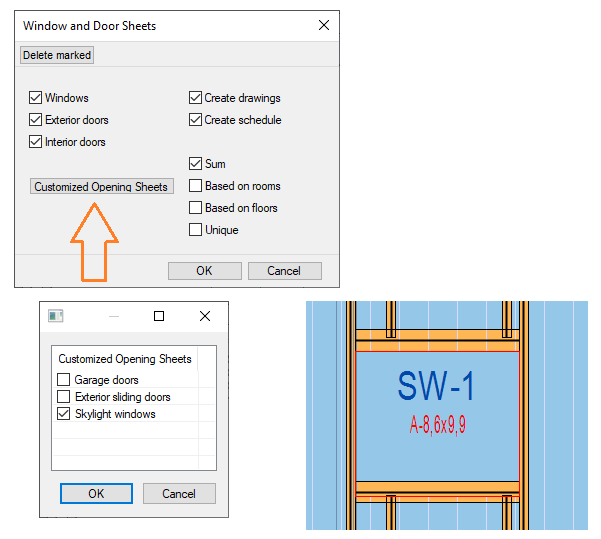

Customized opening sheets and grouping

Note: Ask for more information from customer service

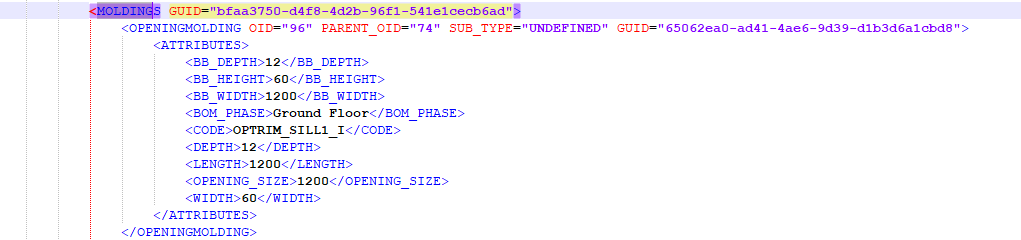

Floor and roof structure names added to the components.xml file

Stacking drawing improvements

Panel stacking drawing shows each panel thickness in panel schedule.
