This exercise was carried out with version 27.0 (Vertex 2021).
Table of Contents
In this exercise you will learn to
To create a jig part by rotating the sketch180°.
How to use a jig to model sheet metal parts.
Orient a linear feature pattern using geometry.
To mirror a feature by auxiliary level.
Entering of material information.
Create drawings for parts and assembly.
Functions to be used:
File > New > Part.
New > Part (In the assembly).
New Sketch > To vertical (XZ) plane.
Operation: Boss > Revolve.
Faces > Copy Face > To volume
Add Flange.
Mirror Feature.
Item Data.
Drawing > New Drawing.

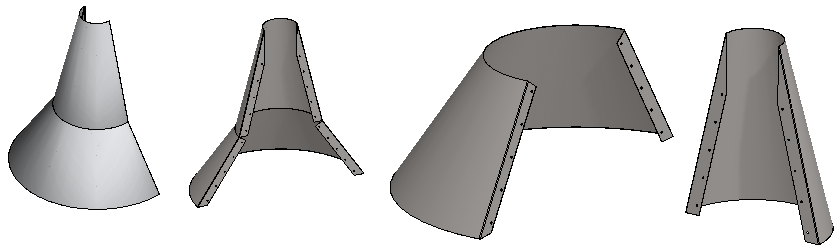

Main stages
Create a new assembly.
Create a new part in the assembly: Jig.
Modeling jig.
Return to assembly.
Create a new part in the assembly: The lower part of the hood.
Model the sheet metal with the Face > Copy Fcase > To Volume function, to which you add flanges and mounting holes.
Enter the raw material information and create a drawing for the part model.
Return to assembly.
Create a new part in the assembly: The upper part of the hood.
Model the sheet metal with the Face > Copy Fcase > To Volume function, to which you add flanges and mounting holes.
Enter the raw material information and create a drawing for the part model.
Return to assembly.
Create a drawing for the assembly.
Create a new Assembly

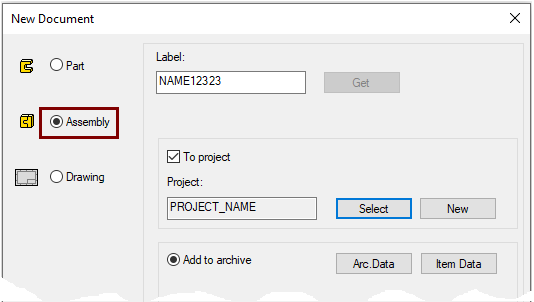

File > New > Assembly.
Enter the label (which is also the name of the model and by default will be the name of the drawing).
Enter the archive information by clickingArc.Data.
Select the project where the model will be saved.
OK.

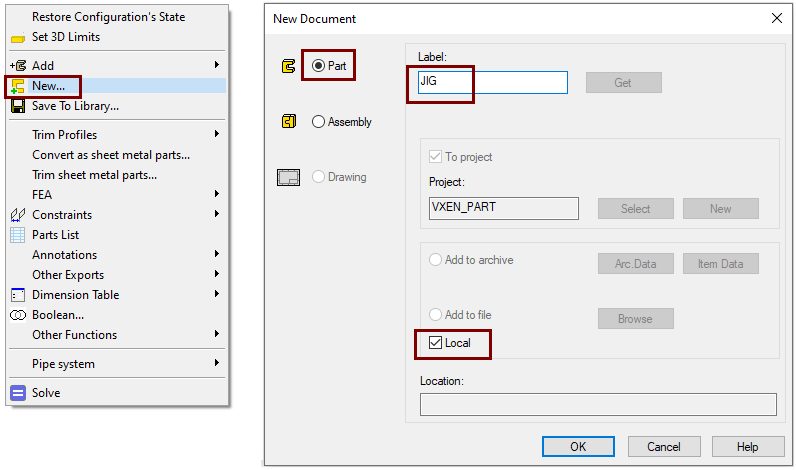

Create a local part
Right-click function: New.
Click: Part.
Enter the label of the part.
Select: Local. "Local" means that the part is not made its own file, it is only visible in the assembly.
Create the first feature
New Sketch > To vertical (XZ) plane.

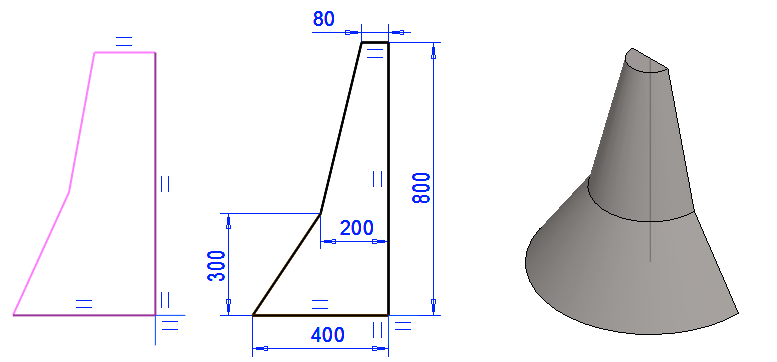

Sketch the shape
The function: Polyline.
Sketch the shape shown in the image.
Start at the origo of the sketch.
Note the directional locks.
Dimension the sketch(The Dimension constraint or the Distance constraint).
Operation
Boss > Revolve.
Length or Angle: 180
OK.
Click the vertical line, when prompted:Add rotation axis: point at a point or line.

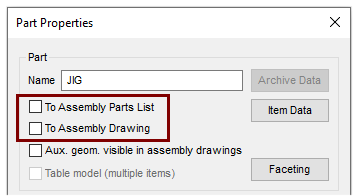

Edit the properties of the JIGI model
Right-click function: Properties.
Deselect:
To Assembly Parts List and
To Assembly Drawing.
OK.
Return from part to the assembly:

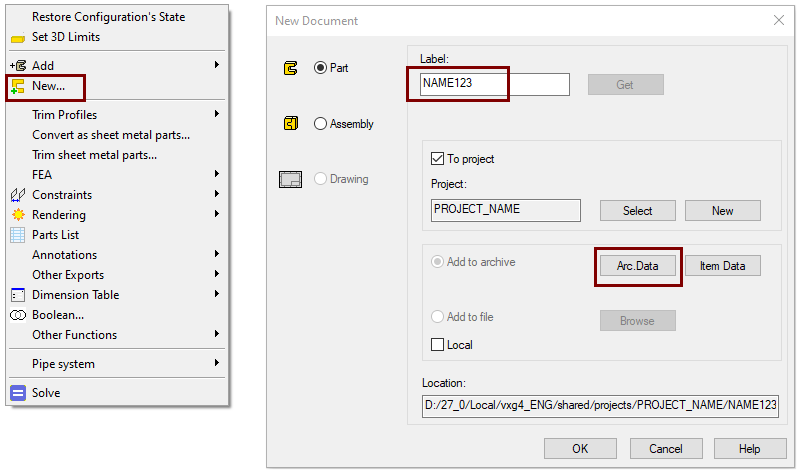

Create a new part in the assembly
Right-click function: New > Part.
Enter the label (which is also the name of the model and by default will be the name of the drawing).
Enter the archive information by clickingArc.Data.
Accept the project, where the model will be saved.
OK.

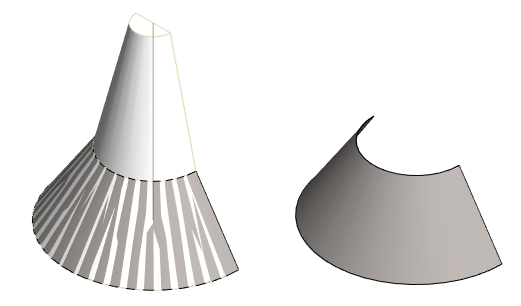

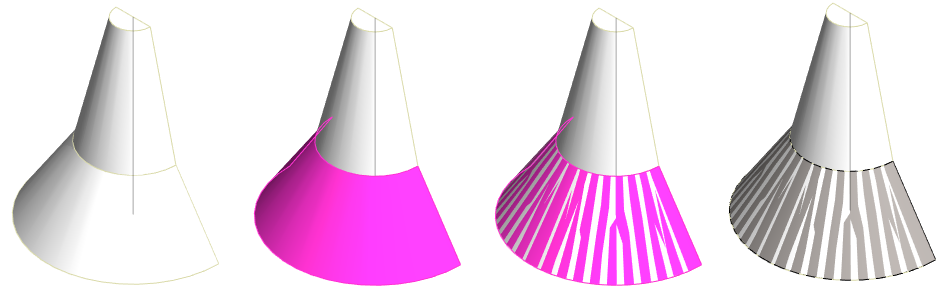

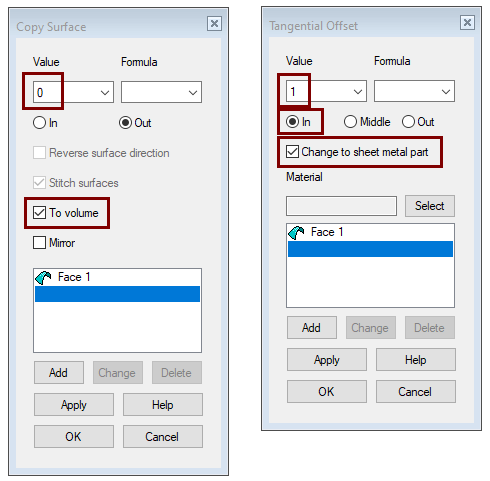

Copy the surface of the jig into a sheet metal part.
Right-click function: Faces > Copy Face.
Click to the lower conical face of the JIGI.
Dialog Copy Surface opens.
Leave the value: 0
Select: To Volume.
OK.
Dialog Tangential Offset opens.
Enter the sheet metal thickness value: 1.
Click: In (Part is generated from the surface inwards).
Select: Change to sheet metal part.
OK.
Hide the JIGI
Right-click function: Hide Others

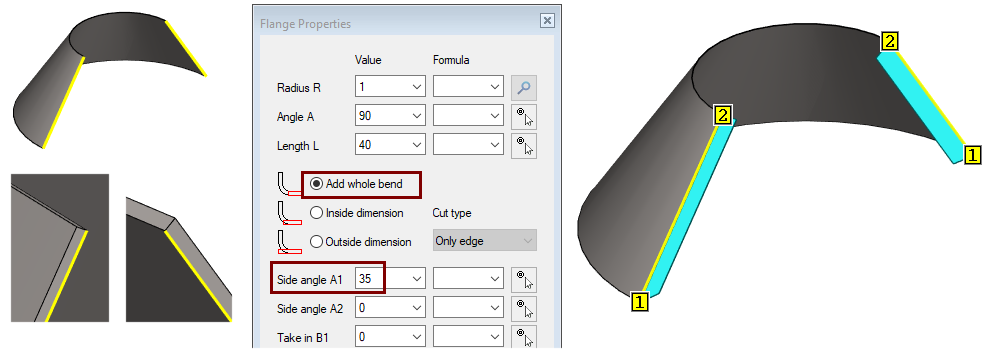

Add flanges for attachment
Click two lines from the inside back of the hood.
Right-click function: Add Flange.
Radius R: 1
Angle A: 90
Length L: 40
Side angle 1: 35.
Option: Add whole bend.
If the 1- and 2-ends are in different directions
If the program were to interpret the ends of the selected lines so that the end 1 on one side was at the top and the other side was at the bottom, then.
Click the first flange (from the dialog box).
Accept or enter a new value for Side Angle A1 or A2 and press the Apply button.
Click the second flange.
Accept or enter a new value for Side Angle A1 or A2 and press the Apply button or OK.

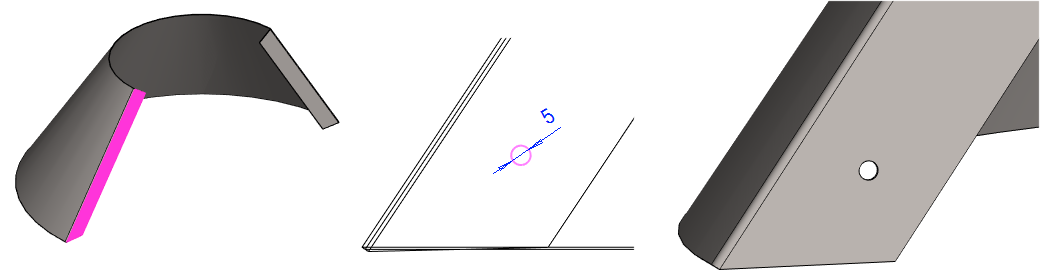

Sketch the mounting hole on the other flange
Click on the face shown in the image.
Right-click function: New Sketch > Face.
Sketch the shape
Sketch a circle.
Add the Diameter constraint: 5.
Operation
Boss - Extrude - To Next Face

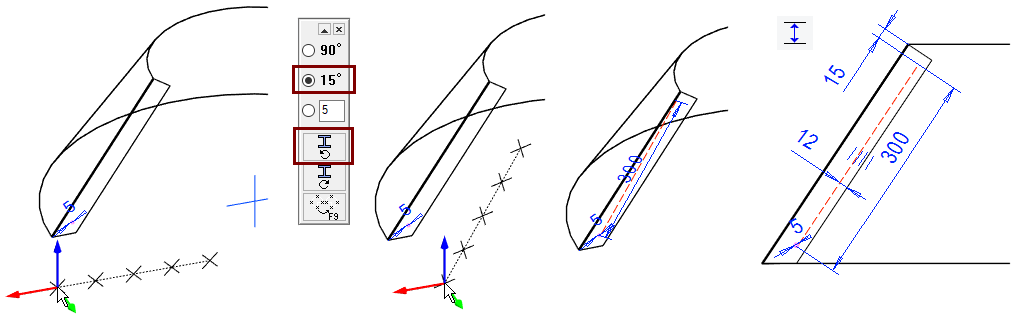

Create a pattern of mounting holes
Select a feature from the feature tree or hole surface from the model.
Right-click function: Feature pattern.
Accept default selection: Linear.
Length-direction, Number:5.
Length-direction, Delta:75.
Leave the default values for Width-direction.
OK.
Turn the direction of the pattern to approximately a correct position using the help menu: 15° turn and counterclockwise.
To position the pattern, click the cursor in the center of the circle.
Add the Distance constraint between the series guide line (red dashed line) and the edge line: 12.
Add the Distance constraintbetween the end of the series guide line and the line at the top of the flange: 15.
OK.

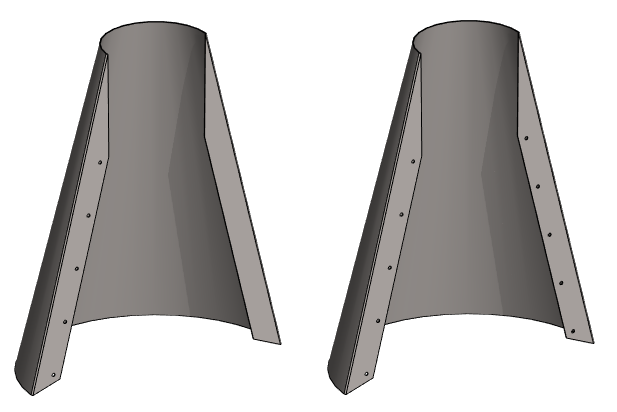

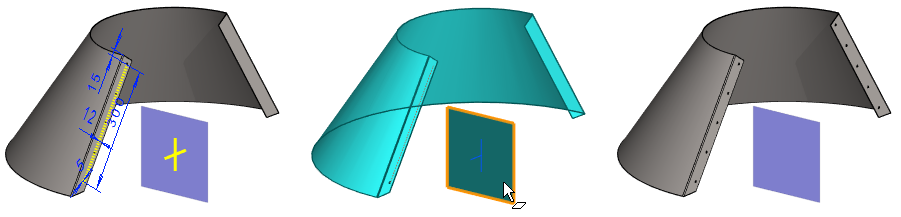

Mirror the mounting holes
Restore the Lateral (YZ) plane, if it is not already visible.
In the feature tree, select the feature that has the pattern.
Right-click function: Mirror feature.
Click on the mirror plane (middle figure).

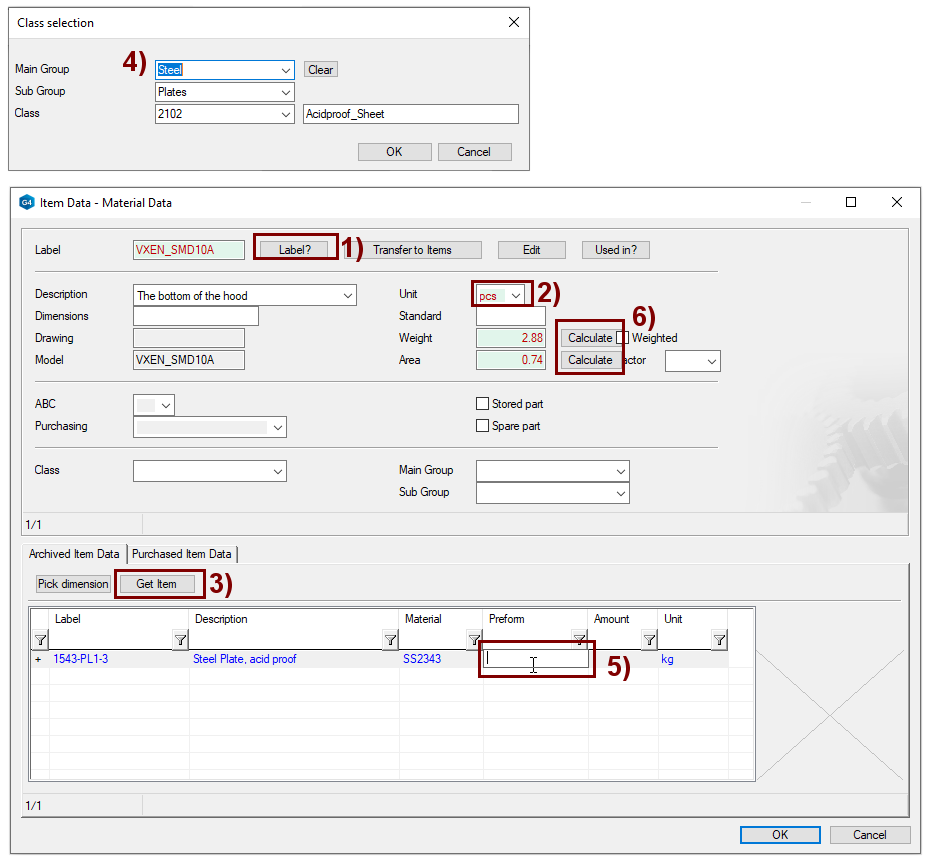

Enter the item data
Right-click function: Item Data.
See Exercise 2: Box for more detailed instruction.
Enter the Label. The Label button adds the item the same ID as the part. In the figure 1).
Select the unit. In the figure 2).
Search for item information with:Get Item. In the figure 3).
Select classes. In the figure 4).
OK.
Choose Steel Plate, acid proof.
Clear the Preform field (so that the program later calculates the length and width dimension for the blank. In the figure 5).
You can then calculate the Weight and Area of the sheet. (Note that the area is the so-calledpainting area, not sheet metal area.)
OK.

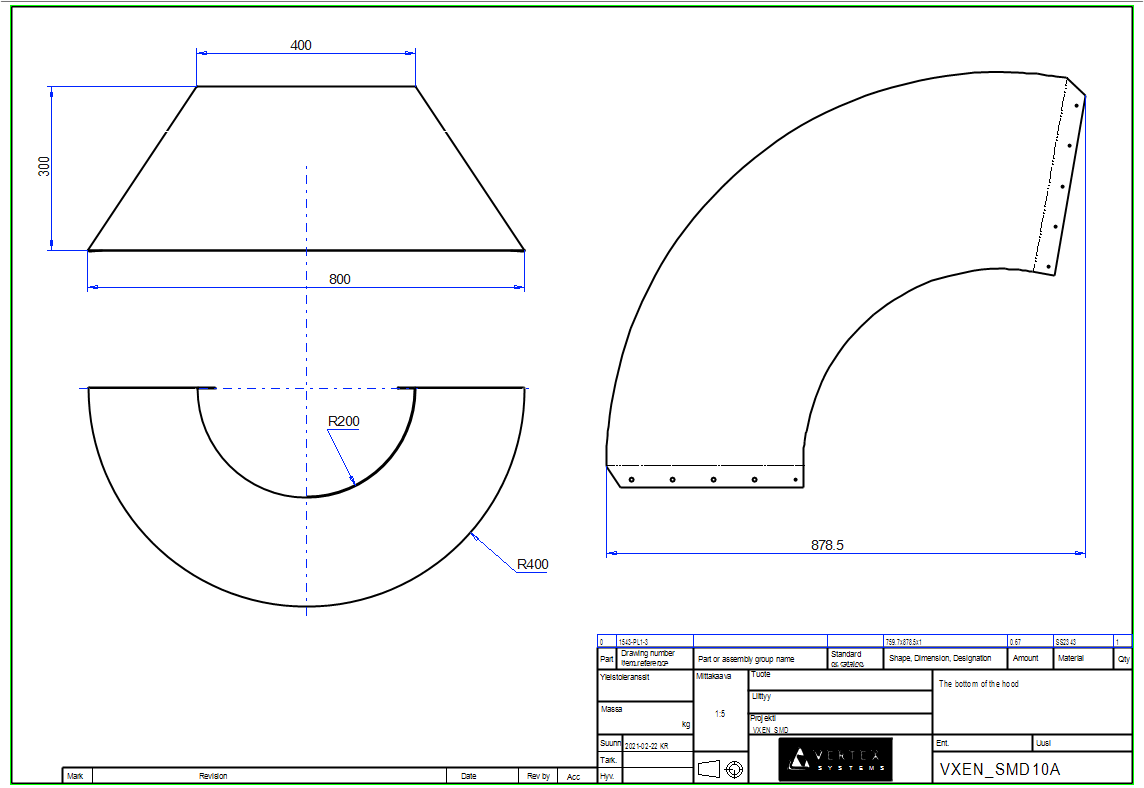

Create a drawing for the part
Click the Drawings in the feature tree.
Right-click function: New Drawing.
Select projections: Front, top and Flatten sheet.
When making a Flatten sheet projection projection, the program suggests the largest surface as the reference surface and stains it red.

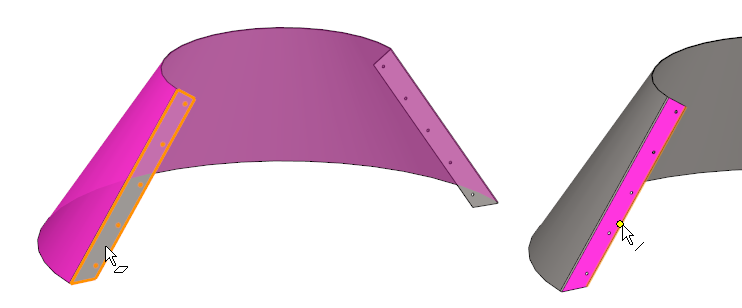

Replace the surface. Click to the plane of the flange, see figure below left.
Accept or click to the reference line pointing in the X direction of the projection, see figure below right.
OK.
Review and accept the archive information.
Blank dimensions calculated by the program
In this case, the blank dimensions calculated by the program (in the field Shape, Dimension Designation in the parts list) are not relevant and are not always calculated correctly with an accuracy of at least 0.1 mm.
Save the dawing
File > Save or click or press
Remove the drawing from the desktop.
Return from part to the assembly:
(This function saves the part automatically.)
Create a new part in the assembly
Right-click function: New > Part.
Enter the label (which is also the name of the model and by default will be the name of the drawing).
Enter the archive information by clickingArc.Data.
Accept the project, where the model will be saved.
OK.

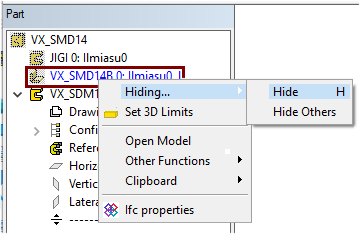

Hide the lower part of hood
Click the upper part that appears in the feature tree.
Right-click function: Hiding > Hide.

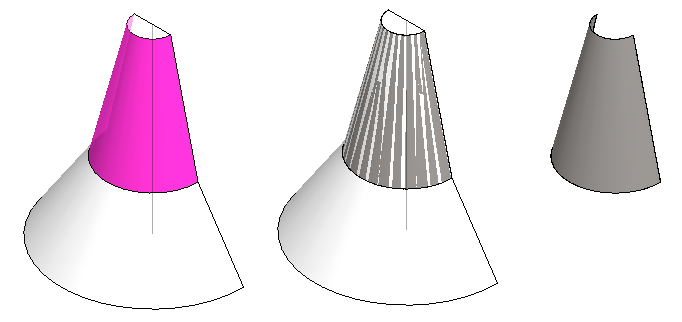

Copy the surface of the jig into a sheet metal part.
Right-click function: Faces > Copy Face.
Click to the lower conical face of the JIGI.
Dialog Copy Surface opens.
Leave the value: 0
Select: To Volume.
OK.
Dialog Tangential Offset opens.
Enter the sheet metal thickness value: 1.
Click: In (Part is generated from the surface inwards).
Select: Change to sheet metal part.
OK.
Hide the jig
Right-click function: Hide Others

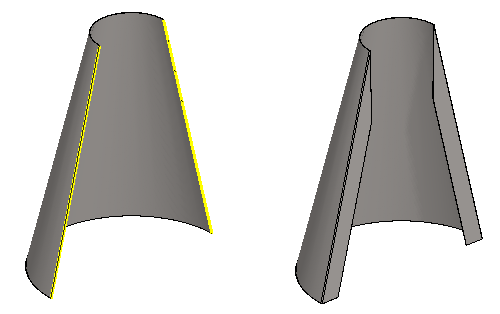

Add flanges for attachment
Click two lines from the inside back of the hood.
Right-click function: Add Flange.
Radius R: 1
Angle A: 90
Length L: 40
Side angle 1: 35.
Side angle 2: 76.
Option: Add whole bend.

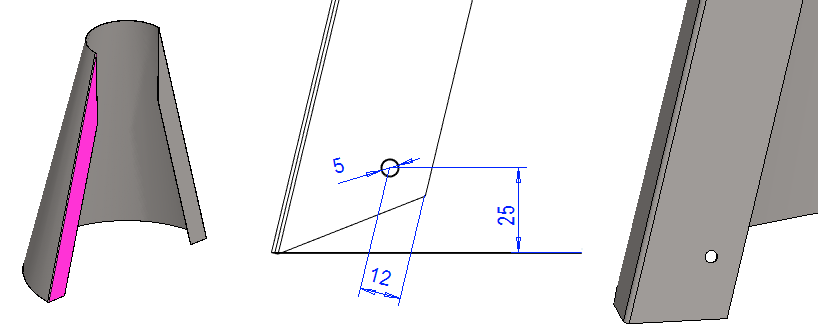

Sketch the mounting hole on the other flange
Click on the face shown in the image.
Right-click function: New Sketch > Face.
Sketch the shape
Sketch a circle.
Add the Diameter constraint: 5.
Add the Distance constraintbetween the center of the hole and the bottom: 25.
Add the Distance constraint between the center of the hole and the edge line: 12.
Operation
Boss - Extrude - To Next Face

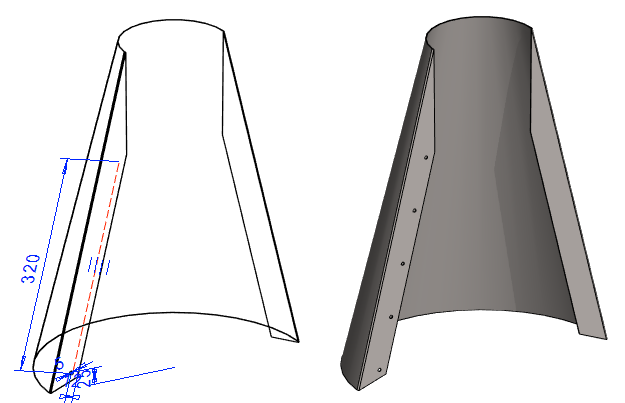

Create a pattern of mounting holes
Select a feature from the feature tree or hole surface from the model.
Right-click function: Feature pattern.
Accept default selection: Linear.
Length-direction, Number:5.
Length-direction, Delta:80.
Leave the default values for Width-direction.
OK.
Turn the direction of the pattern to approximately a correct position using the help menu: 15° turn and counterclockwise.
To position the pattern, click the cursor in the center of the circle.
Add the Parallel constraint between the red guide line and the edge line.
OK.
Mirror the mounting holes
Restore the Lateral (YZ) plane, if it is not already visible.
In the feature tree, select the feature that has the pattern.
Right-click function: Mirror feature.
Click on the mirror plane.

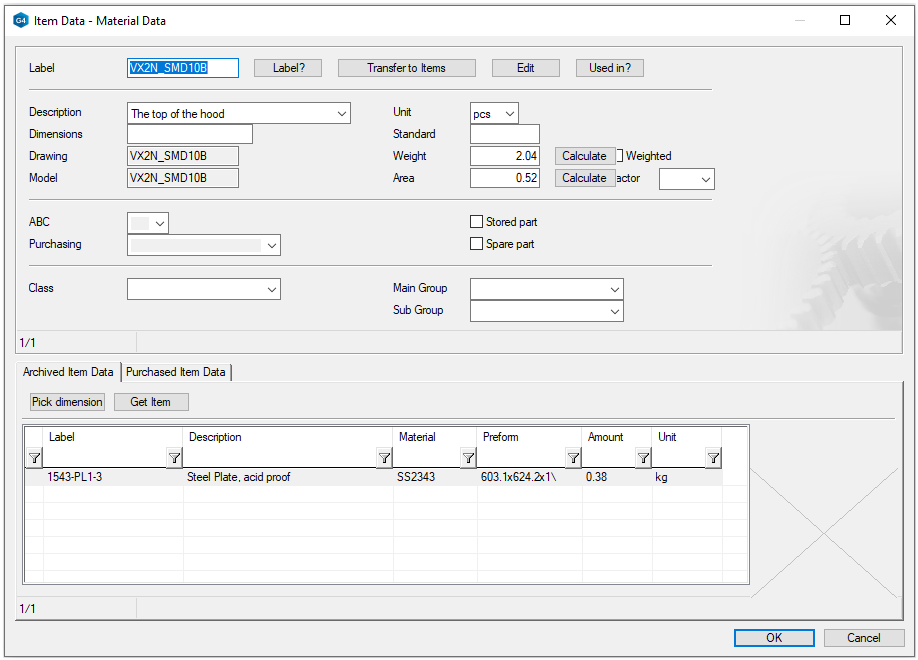

Enter the item data
Right-click function: Item Data.
See the previous part (the bottom of the hood) for more detailed instructions.

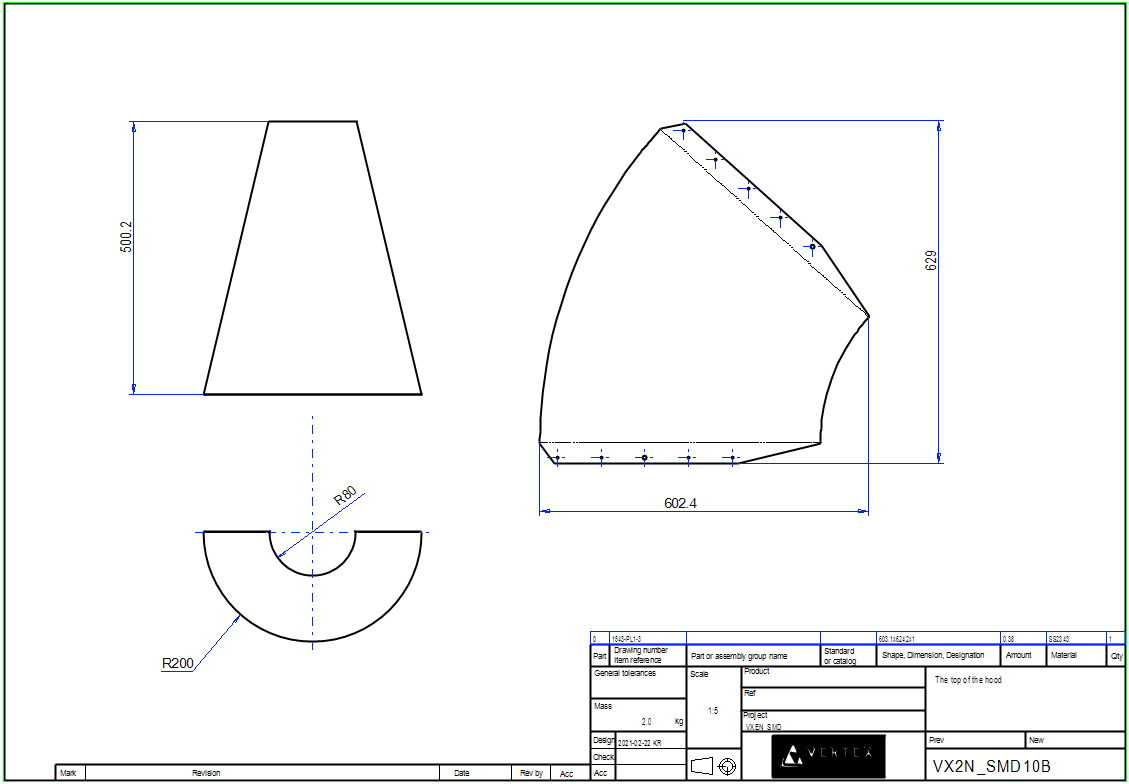

Create a drawing for the part
Click the Drawings in the feature tree.
Right-click function: New Drawing.
Select projections: Front, top and Flatten sheet.
See the previous part (the bottom of the hood) for more detailed instructions.
Save the dawing
File > Save or click or press
Remove the drawing from the desktop.
Return from part to the assembly:
(This function saves the part automatically.)

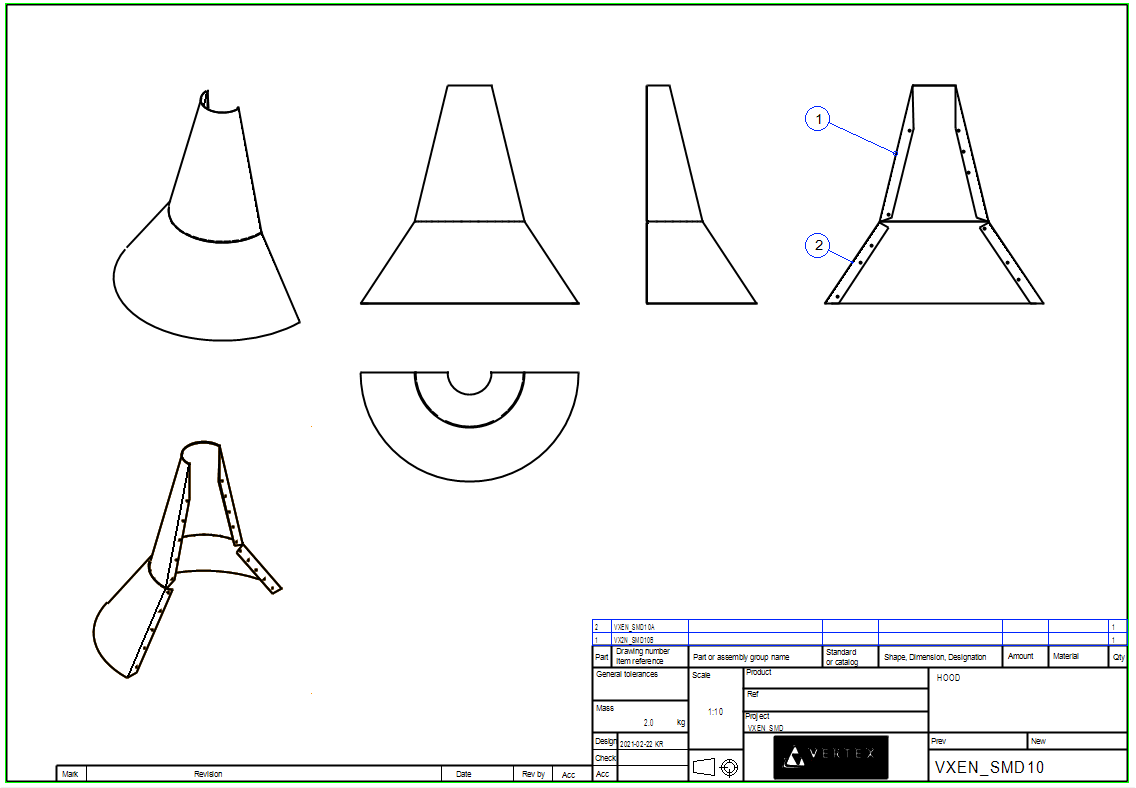

Create a drawing for the assembly model
Click the Drawings in the feature tree.
Right-click function: New Drawing.
Select projections: Front, top, left, back and ISO -45 Front Right.
