What's new in Vertex G4PI 2020

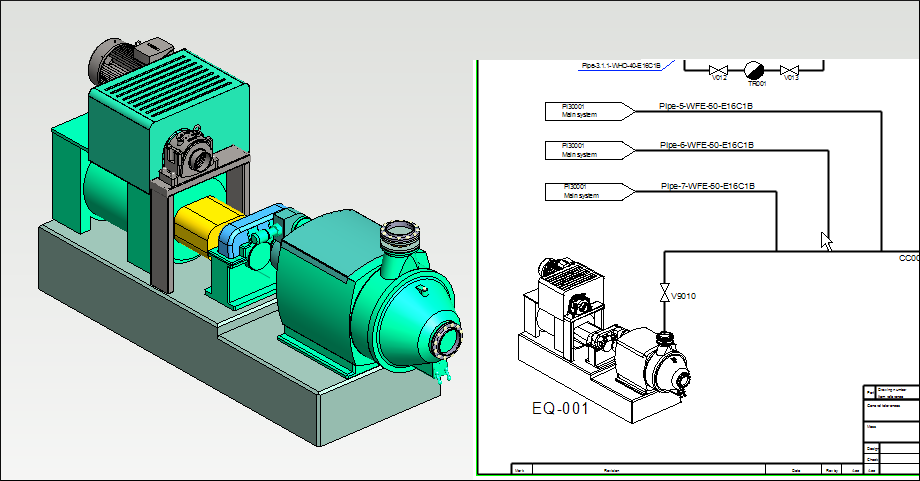

Creating  PI&ID symbol - Easily from 3D model

Create a P&ID symbol selecting device directly from the model window.

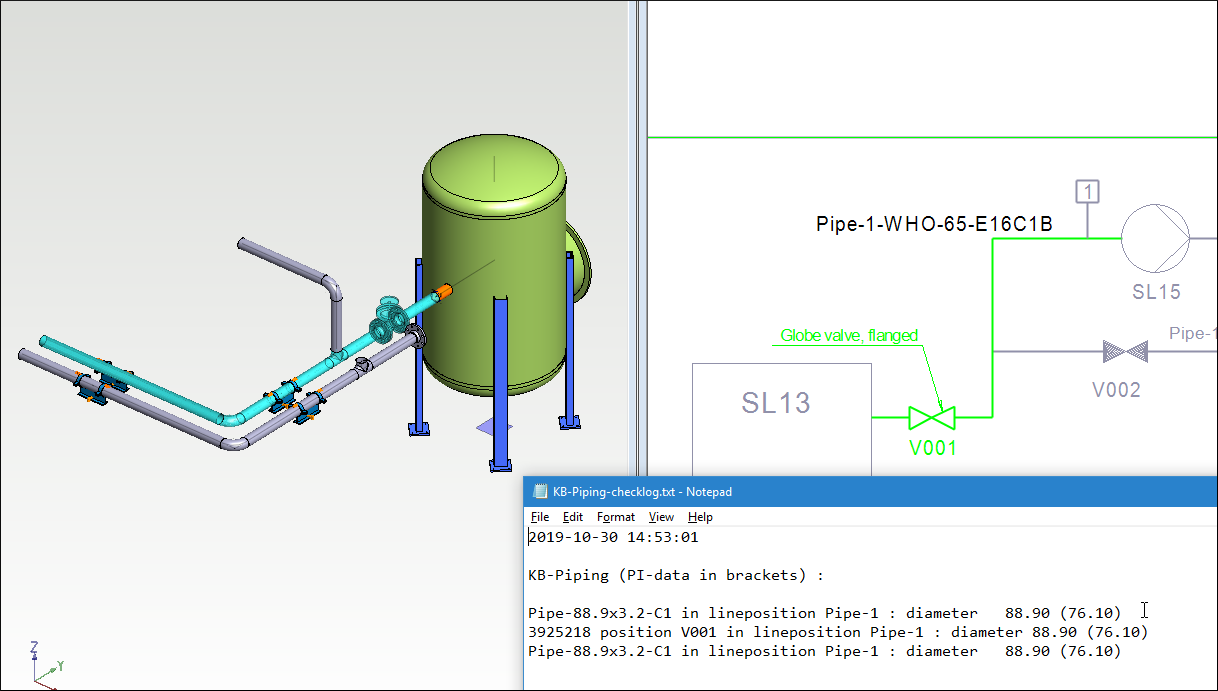

Efficient and flawless design with P&ID diagram and 3D model

Find elements and compare data between P&ID diagram and 3D model.

Efficient and faster design of P&ID diagrams

Numerous improvements to P&ID diagram creation and utilization of data.
