FEA Solids and Assemblies
Analyzing the strength of these demo models requires that you have a Vertex FEA option:
- FEA. Solid model (Code VXO-464, option code: o160).

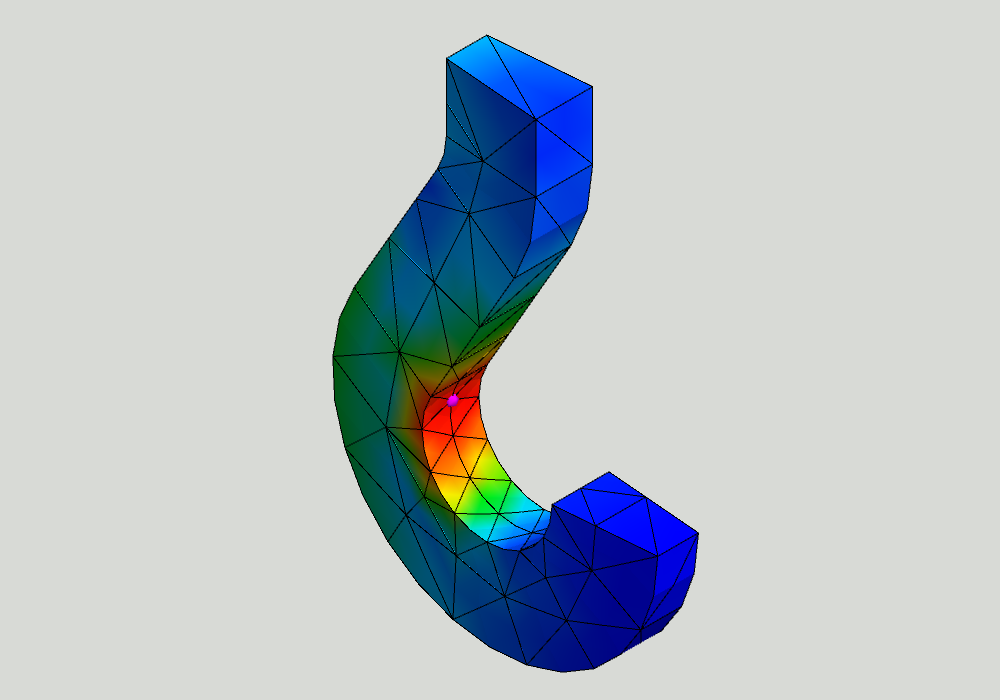

Hook (Model: Ex_FEA_Solid_1.vxz)
- The model is a simplified representation of the lift hook and is analyzed for maximum tension and displacement.
- The end surface of the hook is fixed and the cylindrical surface of the inner surface of the hook is subjected to a 10 kN load.
Download this packaged demo model Ex_FEA_Solid_1.vxz (43 KB)
- Save it to your computer or open it directly (the version must be at least 25.0.00).
- Drag the file onto Vertex G4 (version should be at least 25.0.00).
- The Model and its Drawing are stored in the project VERTEX_EXAMPLE.

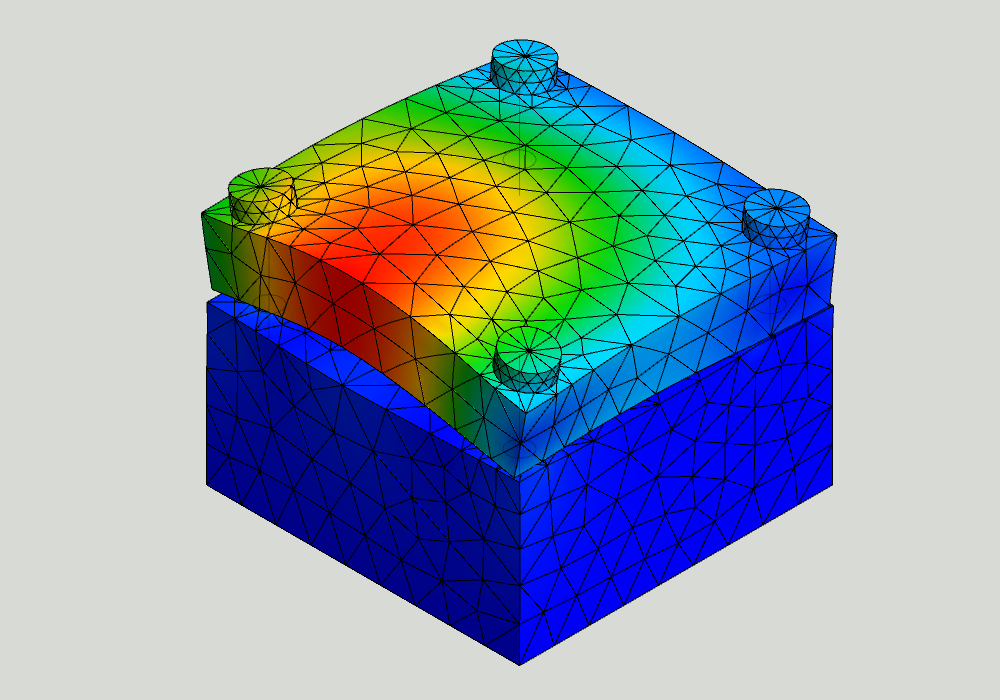

Pressurized Lid (Model: Ex_FEA_Solid_2.vxz)
- The model is a assembly to look at the contact analysis.
- A hollow in the block affects the pressure of 300 bar.
- The block cover is fastened with a screw joint of 20 kN with pre-tightening.
- The results are intended to examine the tight-knit of the deck when the block is pressurized, i.e. how large the gap between the block and the deck is formed.
- The bottom of the lid is divided into two parts
Download this packaged demo model Ex_FEA_Solid_2.vxz (97 KB)
- Save it to your computer or open it directly (the version must be at least 25.0.00).
- Drag the file onto Vertex G4 (version should be at least 25.0.00).
- The Model and its Drawing are stored in the project VERTEX_EXAMPLE.

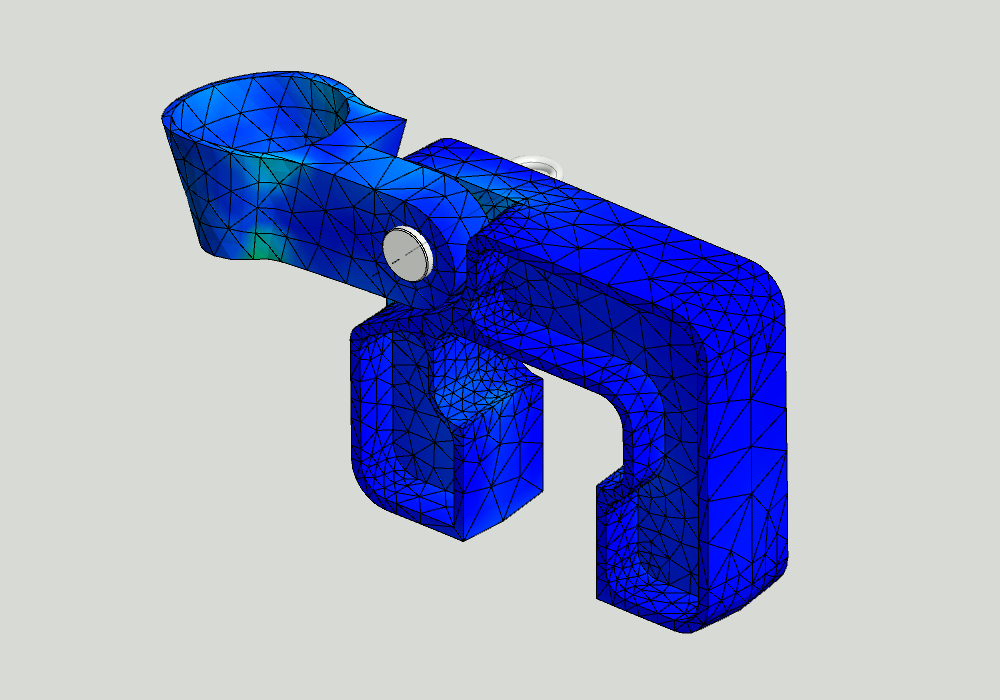

Sonar rack (Model: Ex_FEA_Sonar.vxz)
- The model depicts a Sonar rack that examines part loads.
- The body (Ex_FEA_SonarBody) has two support surfaces.
- The 2 kN surface load is applied to the conical surface of the adapter (Ex_FEA_AngleAdapter)
Download this packaged demo model Ex_FEA_Sonar.vxz (542 KB)
- Save it to your computer or open it directly (the version must be at least 25.0.00).
- Drag the file onto Vertex G4 (version should be at least 25.0.00).
- The Model and its Drawing are stored in the project VERTEX_EXAMPLE.

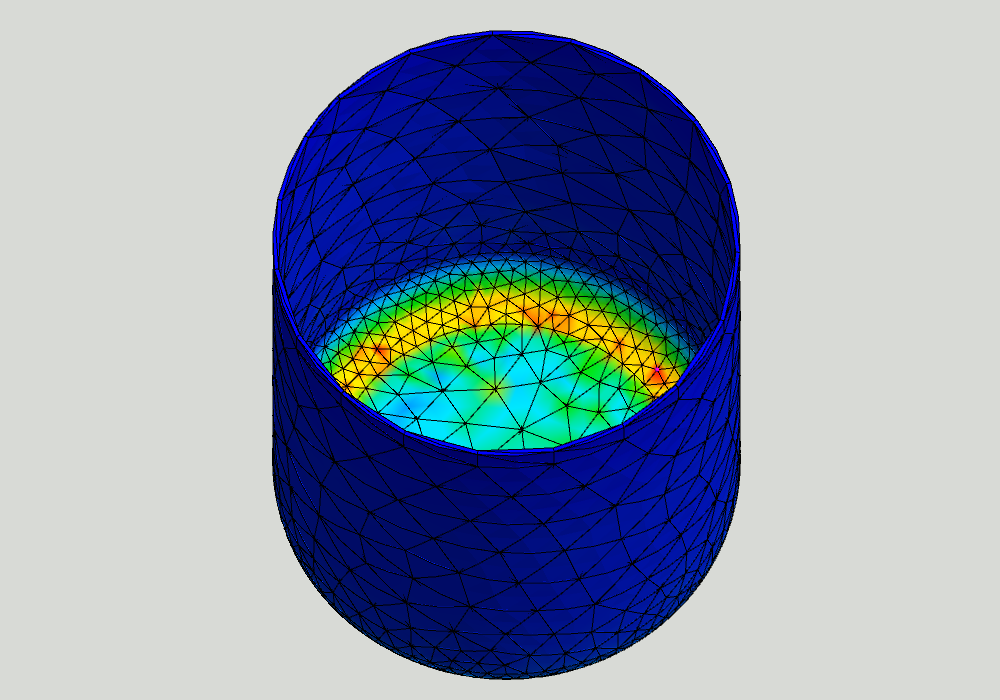

Pressure Well (Model: Ex_FEA_Wells.vxz)
- The model depicts a pressure vessel with an outside wall of 0.024 MPa
- At the top of the pit there is a 100mm support strip.
Download this packaged demo model Ex_FEA_Wells.vxz 71 KB)
- Save it to your computer or open it directly (the version must be at least 25.0.00).
- Drag the file onto Vertex G4 (version should be at least 25.0.00).
- The Model and its Drawing are stored in the project VERTEX_EXAMPLE

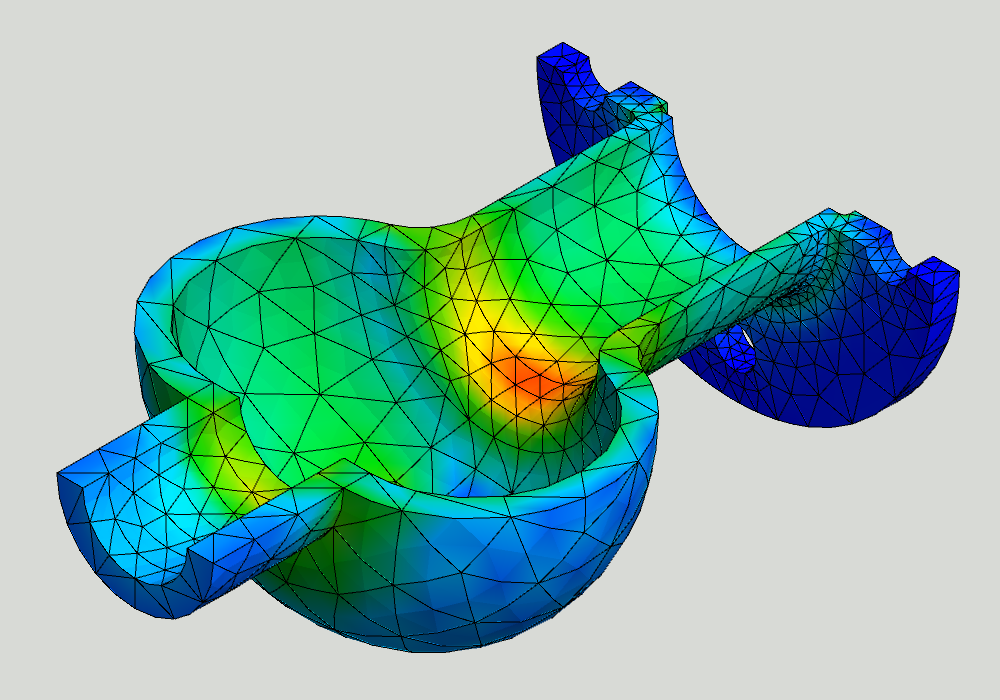

Pressurized tube (Model: Ex_FEA_Solid_4.vxz)
- The model examines the effect of pressure on the body.
- The model is simplified to half that is enough to analyze a reliable result.
- Support are placed on the flange end and on the flanges of the three holes and splitting surfaces.
- 6 MPa pressure is added to all interior surfaces.
Download this packaged demo model Ex_FEA_Solid_4.vxz (163 KB)
- Save it to your computer or open it directly (the version must be at least 25.0.00).
- Drag the file onto Vertex G4 (version should be at least 25.0.00).
- The Model and its Drawing are stored in the project VERTEX_EXAMPLE.

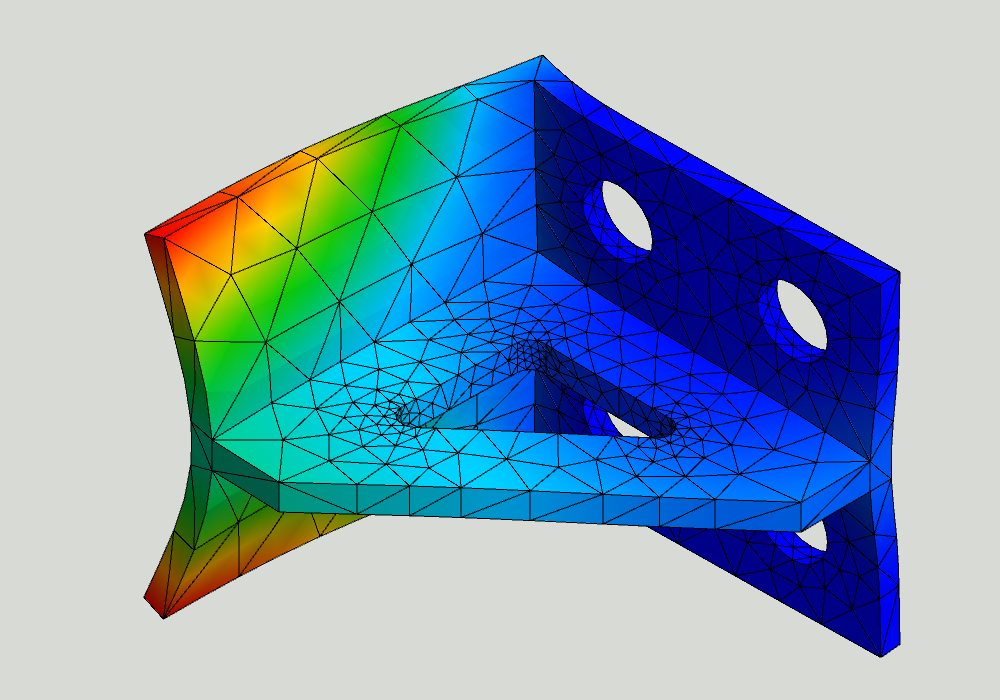

Bracket (Model: Ex_FEA_Solid_6.vxz)
There are two studies in this model. In another study, the surface pressure pulls the angle straight and the other presses it to the heap.
- The model depicts a bracket attached with screws to the wall.
- The second lap is subjected to an outwardly pulling force of 10 kN or a second study of 0.16 MPa pressure.
Download this packaged demo model Ex_FEA_Solid_6.vxz (79 KB)
- Save it to your computer or open it directly (the version must be at least 25.0.00).
- Drag the file onto Vertex G4 (version should be at least 25.0.00).
- The Model and its Drawing are stored in the project VERTEX_EXAMPLE.
